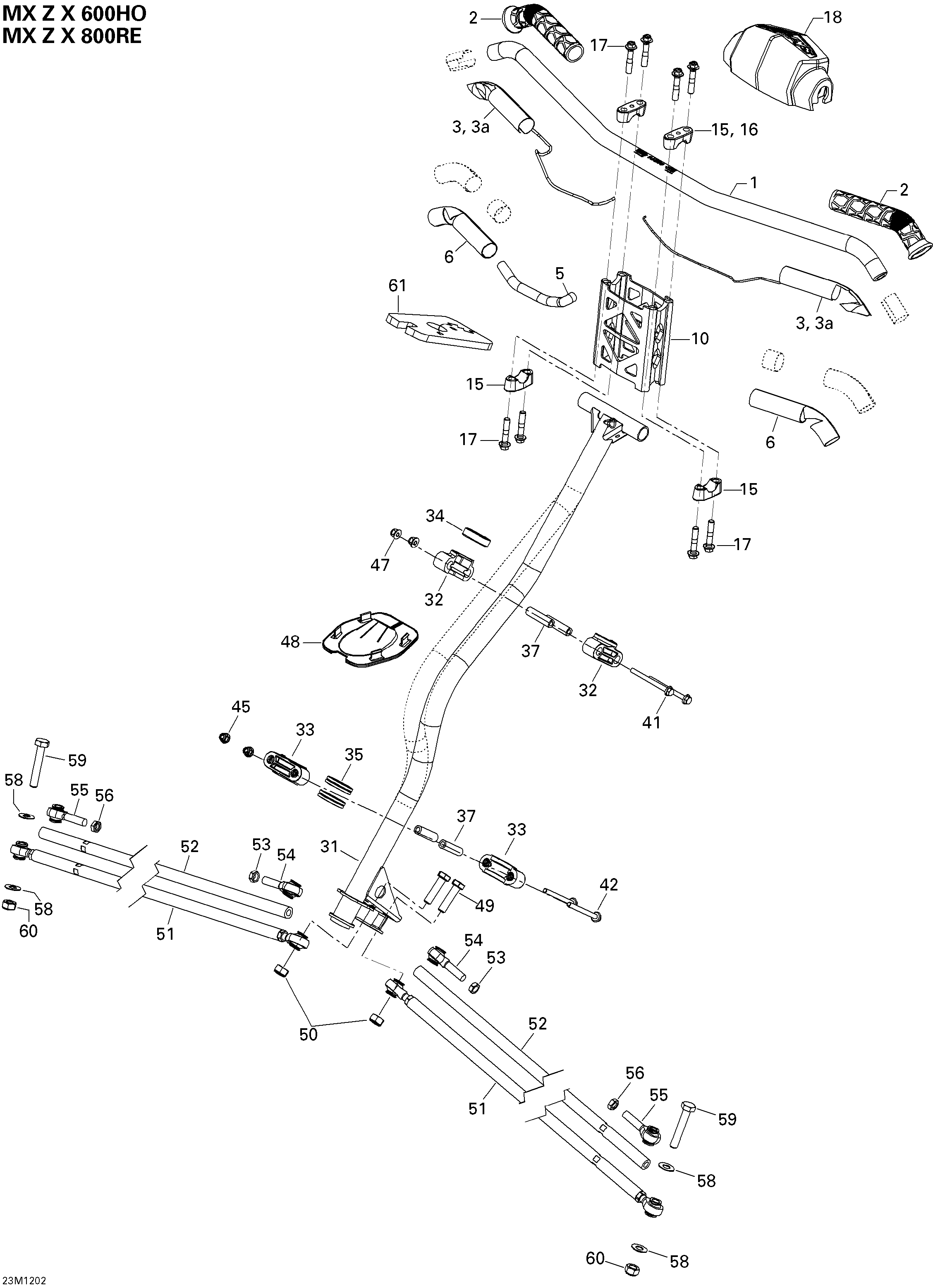

07- Steering для BRP Ski-Doo MXZ X 800RETEC XP - 2012
-
№АртикулНазвание
-
1506152458 Handle Bar. XHandle Bar. X
-
2506152226 Grip. XGrip. X
-
3506152371 Heating Element 32W. XHeating Element 32W. X
-
3a515175232 Male Terminal. XMale Terminal. X
-
5515175830 Low Temperature Tubing 1/2''. XLow Temperature Tubing 1/2''. X
-
6506152360 Insulant. XInsulant. X
-
10506152457 Handle Bar Extension. XHandle Bar Extension. X
-
15506152395 Steering Support. XSteering Support. X
-
17250000352 Hex. Flange Screw M8 X 40. XHex. Flange Screw M8 X 40. X
-
18506152192 Steering Pad. XSteering Pad. X
-
31506152469 Main Tube. X 600HOEMain Tube. X 600HOE
-
31506152494 Main Tube. X 800REMain Tube. X 800RE
-
32506152508 Upper Half-Housing. XUpper Half-Housing. X
-
33506152217 Lower Half-Housing. XLower Half-Housing. X
-
34506152509 Upper Anti-Vibration Gasket. XUpper Anti-Vibration Gasket. X
-
35506152218 Lower Vibration Ring. XLower Vibration Ring. X
-
37506152297 Housing Bushing. XHousing Bushing. X
-
41207667086 Hex. Flanged Screw M6 x 70. XHex. Flanged Screw M6 x 70. X
-
42207667044 Hex. Flange Screw M6 X 70. XHex. Flange Screw M6 X 70. X
-
45233261416 Elastic Flanged Nut M6. XElastic Flanged Nut M6. X
-
47233261416 Elastic Flanged Nut M6. XElastic Flanged Nut M6. X
-
48506152163 Plate. XPlate. X
-
49207004034 Hex. Screw M10 X 40. XHex. Screw M10 X 40. X
-
50232500416 Elastic Stop Nut M10. XElastic Stop Nut M10. X
-
52506152496 Tie-Rod. XTie-Rod. X
-
53506152081 LH Thread Ball Joint. XLH Thread Ball Joint. X
-
54250100016 LH Hex. Jam Nut M10. XLH Hex. Jam Nut M10. X
-
55506152019 RH Thread Ball Joint. XRH Thread Ball Joint. X
-
56732610010 RH Hex. Jam Nut M10. XRH Hex. Jam Nut M10. X
-
58506152194 Washer. XWasher. X
-
59207006044 Hex. Screw M10 X 60. XHex. Screw M10 X 60. X
-
60232500416 Elastic Stop Nut M10. XElastic Stop Nut M10. X
-
61506152521 Cushion. XCushion. X
