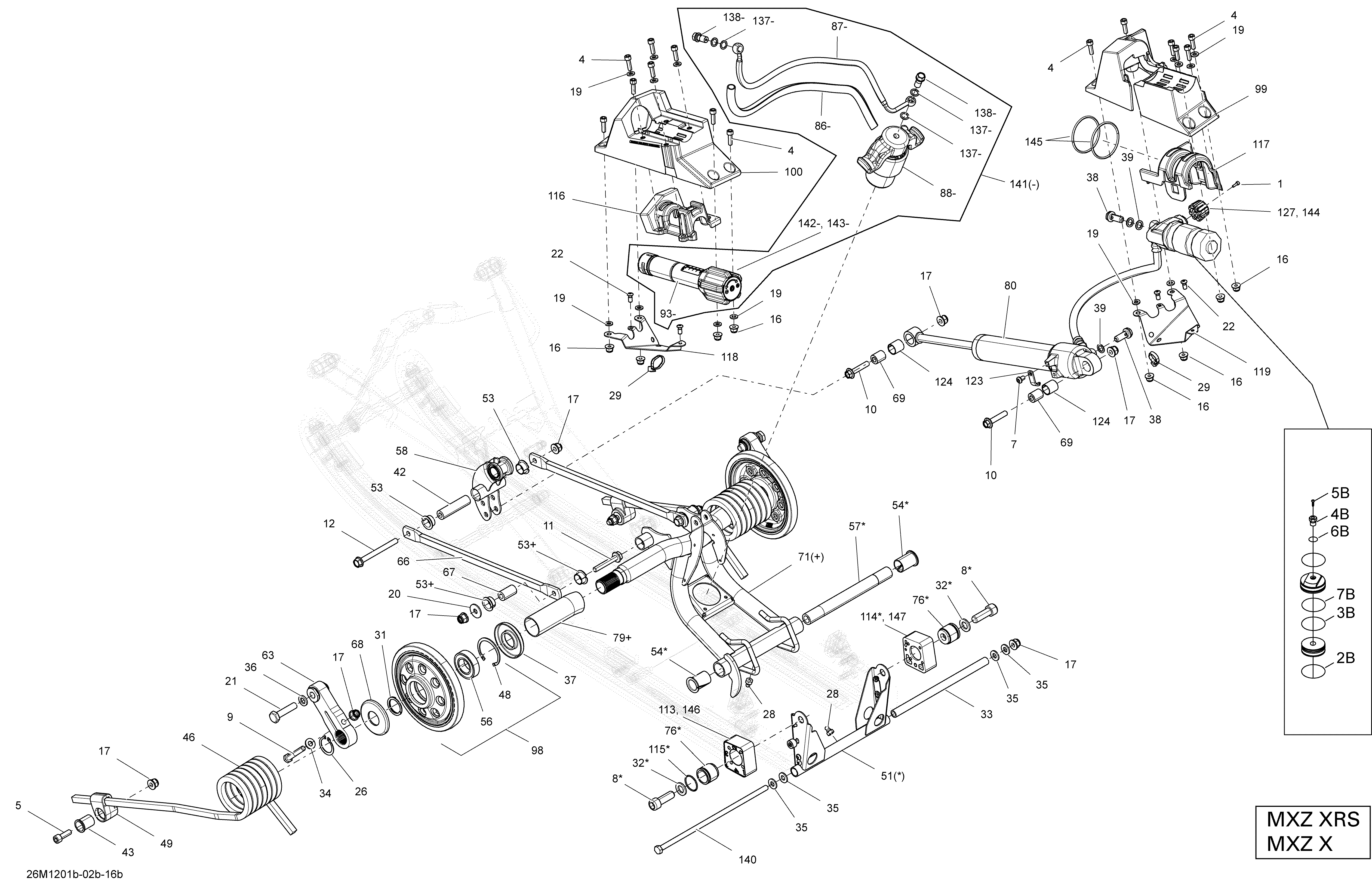

08- Rear Suspension Rear Arm Ajustable для BRP Ski-Doo MXZ XRS 800RETEC XP - 2012
-
№АртикулНазвание
-
1205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
4205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
5205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
7205961060 Socket Head Screw M6x10, Scotch GripSocket Head Screw M6x10, Scotch Grip
-
8205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
9207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
10207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
11207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
12207688544 Hex. Flanged ScewHex. Flanged Scew
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20234082410 Flat Washer 8 mmFlat Washer 8 mm
-
21207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
22293150179 Monobolt Rivet 4.8Monobolt Rivet 4.8
-
26293370080 Retaining RingRetaining Ring
-
28408200700 Grease FittingGrease Fitting
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31503189146 Axle SpringAxle Spring
-
32517225900 Flat WasherFlat Washer
-
33503189156 Pivot Arm AxlePivot Arm Axle
-
34503189157 WasherWasher
-
35503192494 WasherWasher
-
36503192496 WasherWasher
-
37503190434 Labyrinth SealLabyrinth Seal
-
38415093810 BoltBolt
-
39415038700 O-RingO-Ring
-
42503190643 Bar AxleBar Axle
-
43503190754 Retainer CushionRetainer Cushion
-
46503193158 LH Square SpringLH Square Spring
-
46503193159 RH Square SpringRH Square Spring
-
48415129371 Retaining RingRetaining Ring
-
49503191183 Spring SupportSpring Support
-
51503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
53503191555 Swivel BushingSwivel Bushing
-
54503191640 CushionCushion
-
56503191982 Ball BearingBall Bearing
-
57503192981 Lower ShaftLower Shaft
-
58503192531 RockerRocker
-
63503193072 Extension Arm Ass'yExtension Arm Ass'y
-
66503192554 Link RodLink Rod
-
67503192555 Axle BarAxle Bar
-
68503192592 Labyrinth RingLabyrinth Ring
-
69503192606 Rear Shock AxleRear Shock Axle
-
71503193075 Rear Arm Ass'y (Adjustable Sys.)Rear Arm Ass'y (Adjustable Sys.)
-
76503192749 Guide BlockGuide Block
-
79503192767 BushingBushing
-
80503193173 Rear Shock (Adjustable)Rear Shock (Adjustable)
-
86409901700 Tubing 9 mmTubing 9 mm
-
98503192808 Wheel 155 Ass'yWheel 155 Ass'y
-
99503192810 RH SupportRH Support
-
100503192811 LH SupportLH Support
-
113503192918 LH Cam BlockLH Cam Block
-
114503192919 RH Cam BlockRH Cam Block
-
115503192921 O-RingO-Ring
-
116503192956 LH Half HousingLH Half Housing
-
117503192957 RH Half-HousingRH Half-Housing
-
118503192959 LH Hose ProtectorLH Hose Protector
-
119503192960 RH Hose ProtectorRH Hose Protector
-
124505072663 BushingBushing
-
127503193025 Adjustment KnobAdjustment Knob
-
137705600310 Copper WasherCopper Washer
-
138705600628 Banjo BoltBanjo Bolt
-
140503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
141503192774 Hydraulic Adjuster Ass'yHydraulic Adjuster Ass'y
-
142503193056 Knob Adjuster Ass'yKnob Adjuster Ass'y
-
143516004751 Sticker Knob AdjusterSticker Knob Adjuster
-
144516004752 Shock Adjustment DecalShock Adjustment Decal
-
145293250085 O-RingO-Ring
-
146516004900 LH Block Sticker DecalLH Block Sticker Decal
-
147516004901 RH Block Sticker DecalRH Block Sticker Decal
-
2b415093807 O-RingO-Ring
-
3b415093806 Piston RingPiston Ring
-
4b505070398 Air ValveAir Valve
-
5b505070399 ScrewScrew
-
6b505070400 O-RingO-Ring
-
7b415093804 O-RingO-Ring
