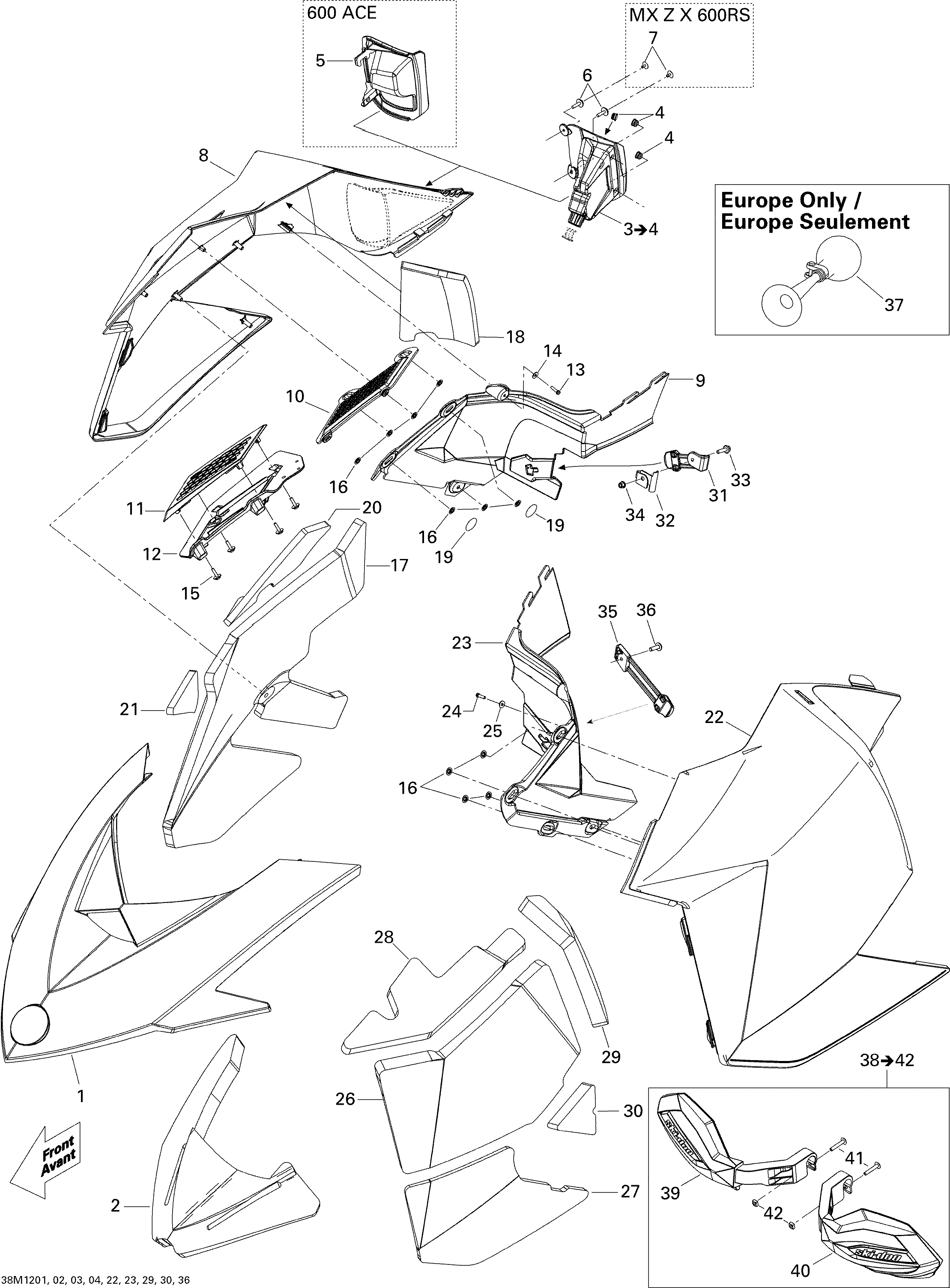

09- Hood для BRP Ski-Doo MXZ XRS 800RETEC XP - 2012
-
№АртикулНазвание
-
1517304530 HoodHood
-
2517304913 Hood FoamHood Foam
-
3517304322 RH Console. Manual Start, Includes 3 to 4RH Console. Manual Start, Includes 3 to 4
-
4275500241 Cap, Black. Manual StartCap, Black. Manual Start
-
6250000113 Screw M4 X 16, Type K-40. Manual StartScrew M4 X 16, Type K-40. Manual Start
-
8517304029 RH Panel. Manual StartRH Panel. Manual Start
-
8517304210 RH Panel. Electric StartRH Panel. Electric Start
-
9517303671 RH Moulding PanelRH Moulding Panel
-
10517303622 Grill. 600HOEGrill. 600HOE
-
11517304763 External Grill. 800REExternal Grill. 800RE
-
12517304764 Internal Grill. 800REInternal Grill. 800RE
-
13241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
14234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
15250000113 Screw M4 X 16, Type K-40. 800REScrew M4 X 16, Type K-40. 800RE
-
16732610072 Push NutPush Nut
-
17517304883 RH Center FoamRH Center Foam
-
18517304884 RH Panel Rear FoamRH Panel Rear Foam
-
19518325560 Adhesive PatchAdhesive Patch
-
22517304030 LH PanelLH Panel
-
23517303673 LH Moulding PanelLH Moulding Panel
-
24241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
25234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
26517304887 LH Panel Center FoamLH Panel Center Foam
-
27517304888 LH Panel Lower FoamLH Panel Lower Foam
-
28517304889 LH Panel Upper FoamLH Panel Upper Foam
-
29517304890 LH Panel Rear FoamLH Panel Rear Foam
-
30517304891 FoamFoam
-
31517303612 RH Panel LatchRH Panel Latch
-
32517304221 Latch SupportLatch Support
-
33207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
34233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
35517303808 LH Panel LatchLH Panel Latch
-
36250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
37549011291 Horn. EuropeHorn. Europe
-
38860200712 Wind Deflector Kit, Grey. Includes 38 to 42Wind Deflector Kit, Grey. Includes 38 to 42
-
38860200711 Wind Deflector Kit, White. Includes 38 to 42Wind Deflector Kit, White. Includes 38 to 42
-
38860200710 Wind Deflector Kit, Yellow. Includes 38 to 42Wind Deflector Kit, Yellow. Includes 38 to 42
-
38860200709 Wind Deflector Kit, Red. Includes 38 to 42Wind Deflector Kit, Red. Includes 38 to 42
-
39517305039 RH Wind Deflector, GreyRH Wind Deflector, Grey
-
39517305045 RH Wind Deflector, WhiteRH Wind Deflector, White
-
39517305042 RH Wind Deflector, YellowRH Wind Deflector, Yellow
-
39517305049 RH Wind Deflector, RedRH Wind Deflector, Red
-
40517305040 LH Wind Deflector, GreyLH Wind Deflector, Grey
-
40517305046 LH Wind Deflector, WhiteLH Wind Deflector, White
-
40517305043 LH Wind Deflector, YellowLH Wind Deflector, Yellow
-
40517305048 LH Wind Deflector, RedLH Wind Deflector, Red
-
41250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
42250000498 Square Nut M6Square Nut M6
