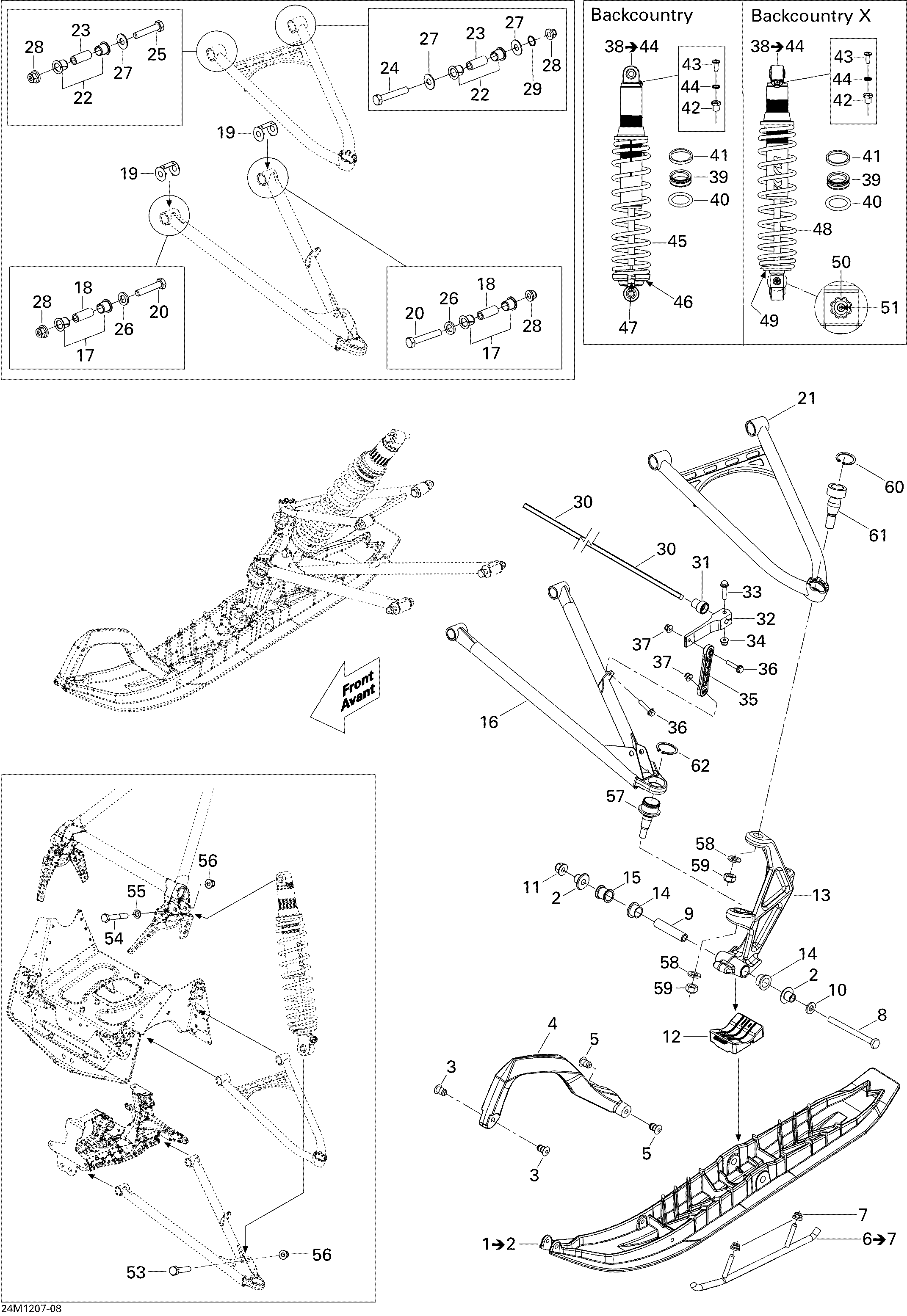

07- Front Suspension And Ski для BRP Ski-Doo Renegade Back Country 800RETEC XP - 2012
-
№АртикулНазвание
-
1415129567 DS Ski, Black. Includes 1 to 2DS Ski, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505072976 Handle, BlackHandle, Black
-
5505072133 RetainerRetainer
-
6860200141 Carbide Runner Kit. Includes 6 to 7Carbide Runner Kit. Includes 6 to 7
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073011 LH Ski Leg. BackcountryLH Ski Leg. Backcountry
-
13505073012 RH Ski Leg. BackcountryRH Ski Leg. Backcountry
-
14505072690 Leg CushionLeg Cushion
-
15505071999 SpacerSpacer
-
16505072497 RH Lower ArmRH Lower Arm
-
16505072498 LH Lower ArmLH Lower Arm
-
17505072208 BushingBushing
-
18505072393 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073074 LH Upper ArmLH Upper Arm
-
21505073076 RH Upper ArmRH Upper Arm
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072602 StabilisatorStabilisator
-
31505072064 BushingBushing
-
32505072394 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072754 Front Shock. Backcountry, Includes 38 to 44Front Shock. Backcountry, Includes 38 to 44
-
39505189309 Free PistonFree Piston
-
40414888312 O-RingO-Ring
-
41503189308 Piston RingPiston Ring
-
42505070398 Air ValveAir Valve
-
43505070399 ScrewScrew
-
44505070400 O-RingO-Ring
-
45505072233 Spring. BackcountrySpring. Backcountry
-
46706200881 Spring Stopper. BackcountrySpring Stopper. Backcountry
-
47706200785 Cap. BackcountryCap. Backcountry
-
53207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
54207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
55503189564 WasherWasher
-
56233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57505072682 Lower Ball JointLower Ball Joint
-
58234021410 Flat Washer 12 mmFlat Washer 12 mm
-
59250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
60293370070 CirclipCirclip
-
61505072913 Upper Ball JointUpper Ball Joint
-
62293370035 CirclipCirclip
