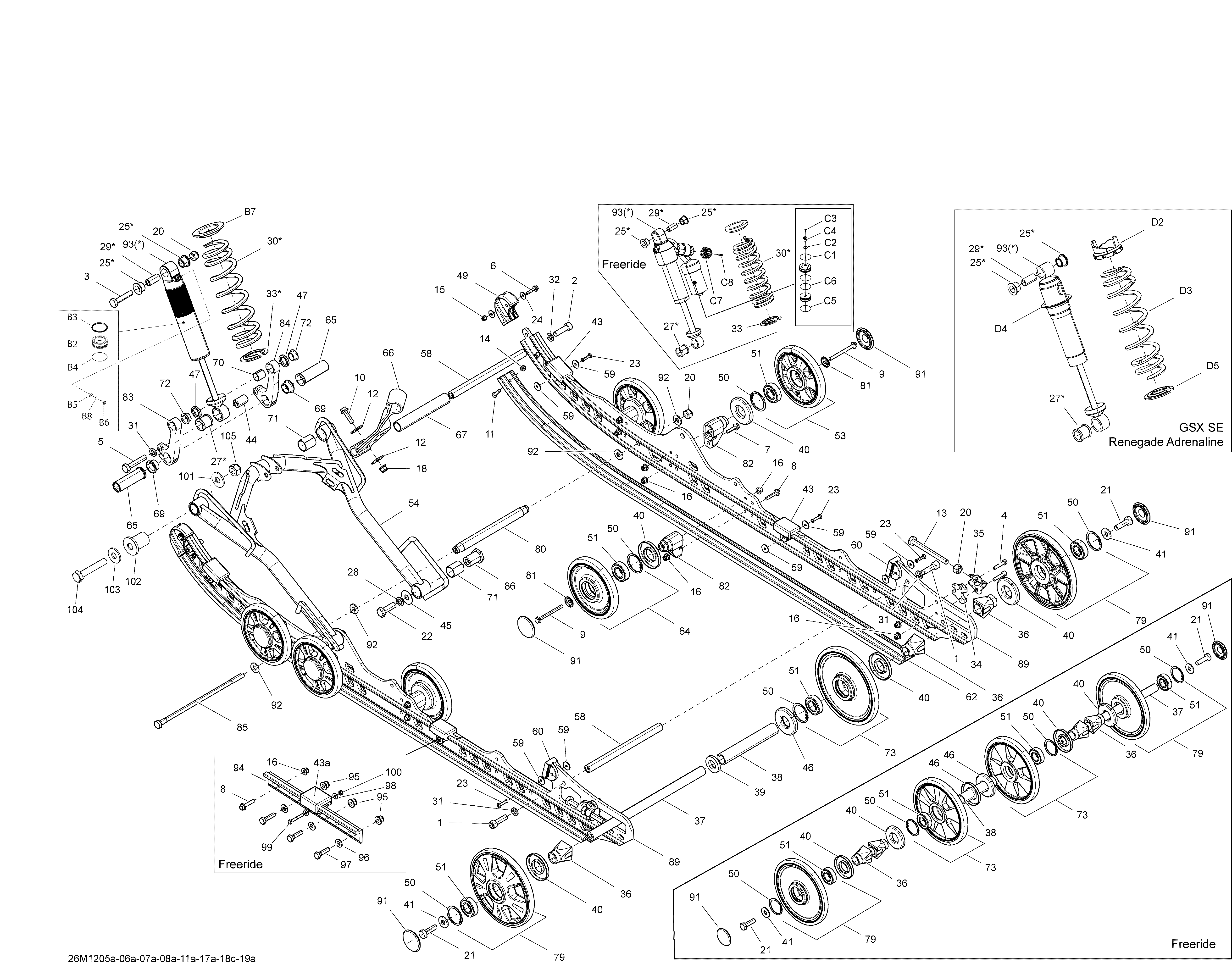

08- Rear Suspension Front Arm And Base для BRP Ski-Doo Renegade Back Country 800RETEC XP - 2012
-
№АртикулНазвание
-
1250000478 Socket Screw M10 X 35Socket Screw M10 X 35
-
2205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
3207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
4250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
5207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
8250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
9250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
10207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
11208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
12224081301 Flat WasherFlat Washer
-
13230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
16250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
21250000019 Hex. Screw With NylonHex. Screw With Nylon
-
22250000225 Hex. Screw M12 X 35, Scotch GripHex. Screw M12 X 35, Scotch Grip
-
23293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
24391301600 WasherWasher
-
25503189117 CushionCushion
-
27503189271 CushionCushion
-
28503189276 WasherWasher
-
29503189282 BushingBushing
-
31503192496 WasherWasher
-
32503189564 WasherWasher
-
33503192029 Spring StopperSpring Stopper
-
34503190379 Tensioner SpacerTensioner Spacer
-
35503192814 TensionerTensioner
-
36503190428 Rear Wheel SpacerRear Wheel Spacer
-
37503190429 Rear AxleRear Axle
-
38503190430 SpacerSpacer
-
39503190432 WasherWasher
-
40503190434 Labyrinth SealLabyrinth Seal
-
41503190439 WasherWasher
-
43503190576 Rubber StopperRubber Stopper
-
44503190604 Central Shock AxleCentral Shock Axle
-
45503190656 WasherWasher
-
46503190682 Labyrinth SealLabyrinth Seal
-
47503190694 Plastic SpacerPlastic Spacer
-
49503191137 Runner ProtectorRunner Protector
-
50415129371 Retaining RingRetaining Ring
-
51503190396 Ball BearingBall Bearing
-
53503191151 Wheel 141 mm Ass'y, BlackWheel 141 mm Ass'y, Black
-
54503191579 Front Arm Ass'yFront Arm Ass'y
-
58503191260 Axle StrapAxle Strap
-
59503191273 WasherWasher
-
60503191291 Rubber StopperRubber Stopper
-
62503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
64503191316 Black Wheel Ass'y, 141 mmBlack Wheel Ass'y, 141 mm
-
65503191351 Center BushingCenter Bushing
-
66503192360 Stopper StrapStopper Strap
-
67503191448 SpacerSpacer
-
69503191552 CushionCushion
-
70503191553 BushingBushing
-
71503191554 BushingBushing
-
72503191555 Swivel BushingSwivel Bushing
-
73503191559 Black Wheel Ass'y, 180 mmBlack Wheel Ass'y, 180 mm
-
79503191742 Black Wheel Ass'y, 180 mmBlack Wheel Ass'y, 180 mm
-
80503191764 Center ShaftCenter Shaft
-
81503191820 Wheel Cup M6Wheel Cup M6
-
82503193082 Casted SupportCasted Support
-
83503191890 LH Rocker ArmLH Rocker Arm
-
84503191894 RH Rocker ArmRH Rocker Arm
-
85503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
86503191966 Lower AxleLower Axle
-
89503192318 Runner 137''Runner 137''
-
91503192771 Black Wheel CapBlack Wheel Cap
-
92732900049 WasherWasher
-
93503192504 Center ShockCenter Shock
-
101503191926 WasherWasher
-
102503190698 AxleAxle
-
103503192496 WasherWasher
-
104250000357 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
105233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
D2505070150 Adjustment CamAdjustment Cam
-
D3503191879 Black SpringBlack Spring
-
D4503191872 Spring GuideSpring Guide
-
D5503192029 Spring StopperSpring Stopper
