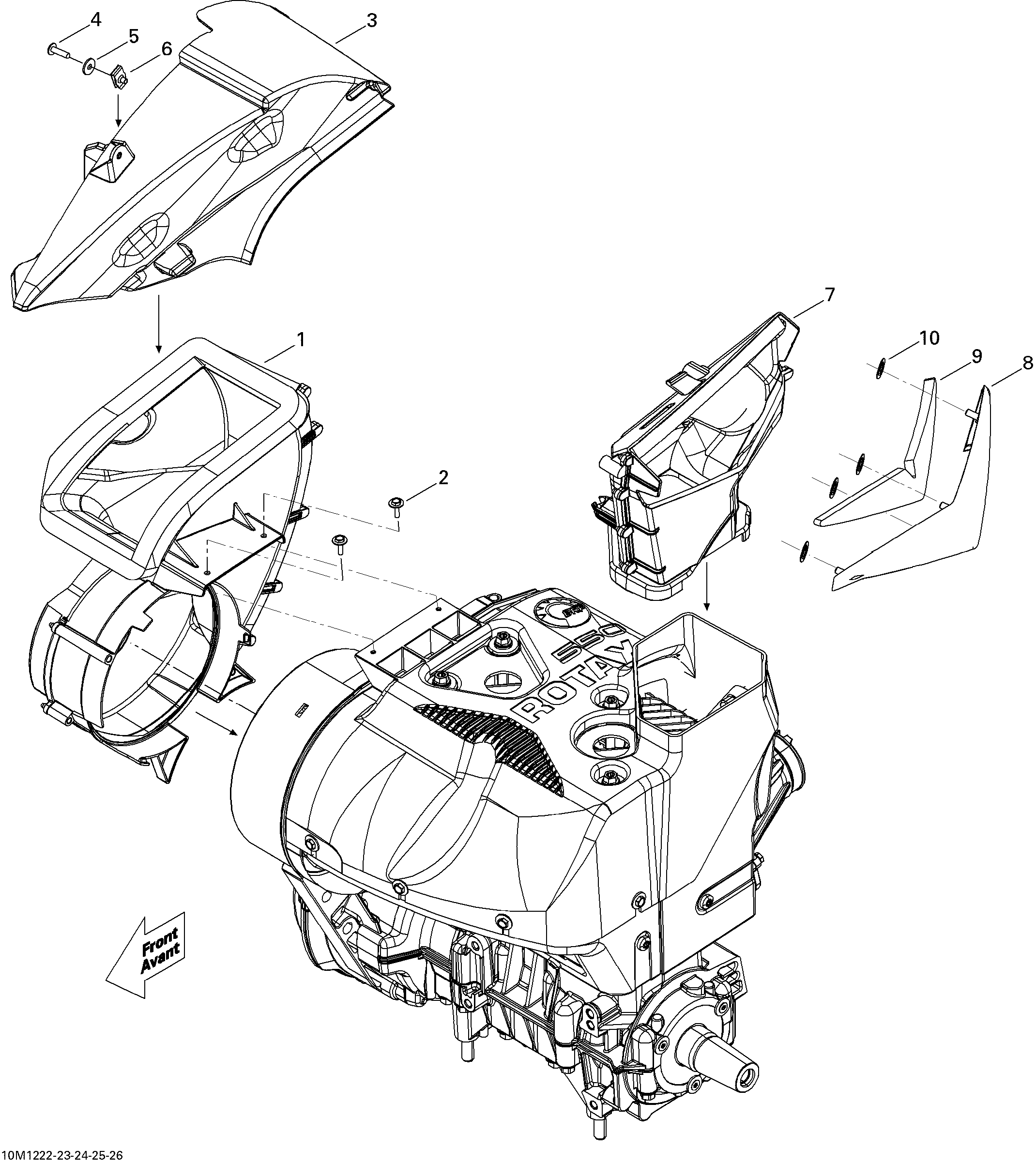

01- Cooling System для BRP Ski-Doo Renegade Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
1509000840 Inlet DuctInlet Duct
-
2250000377 Plastite Screw Type K-40 M4 X 16Plastite Screw Type K-40 M4 X 16
-
3509000451 Air ChamberAir Chamber
-
4250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
5391301600 WasherWasher
-
6250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7509000452 Outlet DuctOutlet Duct
-
8509000585 Outlet Air DeflectorOutlet Air Deflector
-
9509000574 Air Inlet FoamAir Inlet Foam
-
10732610072 Push NutPush Nut
