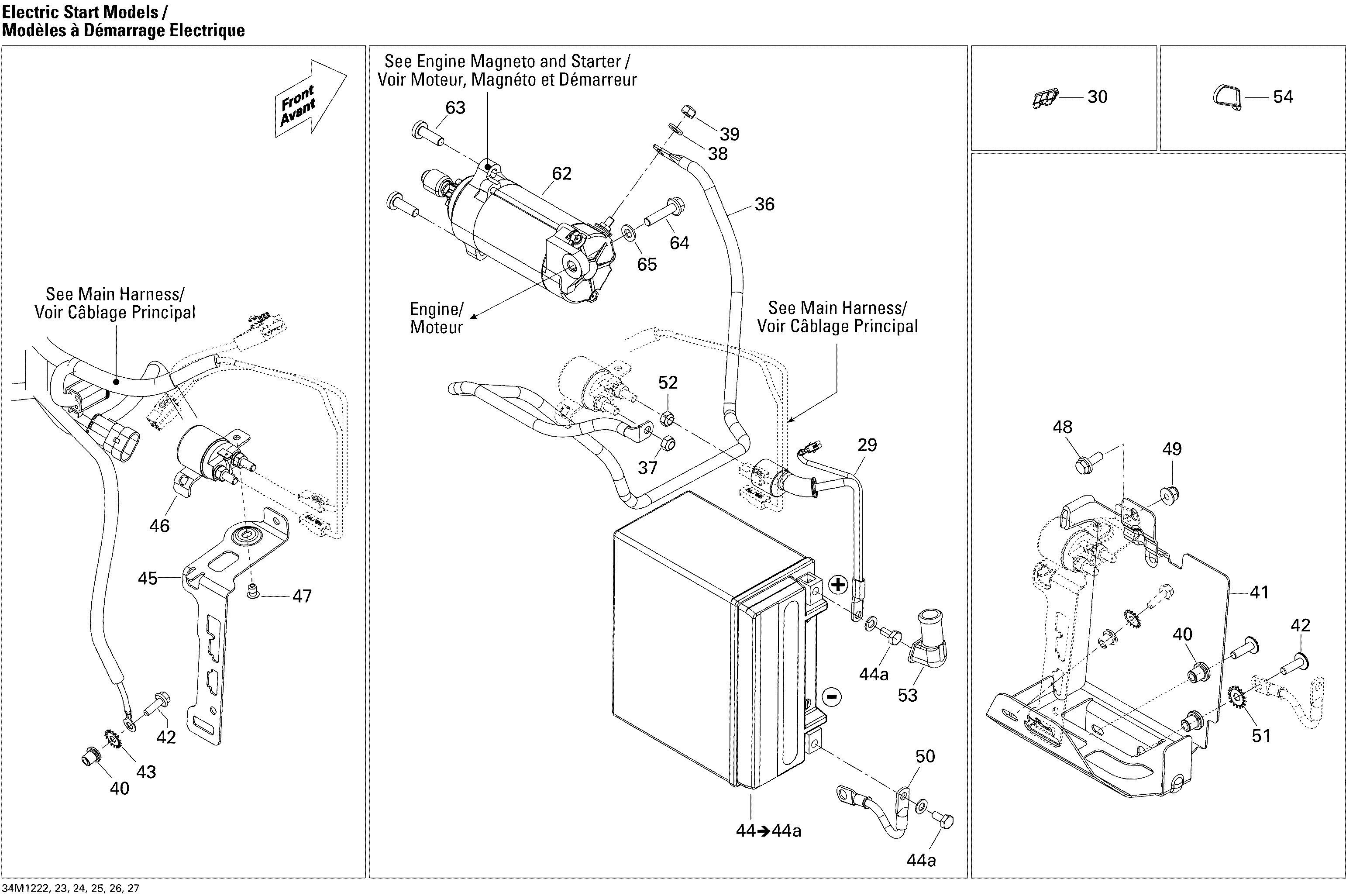

10- Battery And Starter для BRP Ski-Doo Renegade Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
29515177200 Battery Fuse Wire. Electric StarterBattery Fuse Wire. Electric Starter
-
30410917200 Fuse, 30 Amperes. Electric StarterFuse, 30 Amperes. Electric Starter
-
36515175905 Battery Wire. Electric StarterBattery Wire. Electric Starter
-
37232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
38234061410 Flat Washer 6 mm. Electric StarterFlat Washer 6 mm. Electric Starter
-
39232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
40415107300 InsertInsert
-
40415107300 Insert. Electric StarterInsert. Electric Starter
-
41515176886 Battery Support Ass'y. Electric StarterBattery Support Ass'y. Electric Starter
-
42207662044 Hex. Flanged Screw M6 X 20. Electric StarterHex. Flanged Screw M6 X 20. Electric Starter
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
44410301203 Battery Ass'y, 18 Amperes. Electric StarterBattery Ass'y, 18 Amperes. Electric Starter
-
44a295500849 Battery Fastener Kit. Electric StarterBattery Fastener Kit. Electric Starter
-
45515177008 Battery Strip. Electric StarterBattery Strip. Electric Starter
-
46515176501 Starter Relay. Electric StarterStarter Relay. Electric Starter
-
47390402200 Pop Rivet 3/16''. Electric StarterPop Rivet 3/16''. Electric Starter
-
48207661644 Hex. Flanged Screw M6 X 16. Electric StarterHex. Flanged Screw M6 X 16. Electric Starter
-
49233261414 Hex. Flanged Elastic Nut M6. Electric StarterHex. Flanged Elastic Nut M6. Electric Starter
-
50515176358 Ground Wire. Electric StarterGround Wire. Electric Starter
-
51250200041 Lock Washer Serrated M6. Electric StarterLock Washer Serrated M6. Electric Starter
-
52232561414 Elastic Stop Nut M6. Electric StarterElastic Stop Nut M6. Electric Starter
-
53710000495 Protector Cap. Electric StarterProtector Cap. Electric Starter
-
54293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
54293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
54293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
54293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62515176858 Starter Ass'y. Electric StartStarter Ass'y. Electric Start
-
63250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
64207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric StartHex Flanged Screw M8 X 35, Scotch Grip. Electric Start
-
65250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
