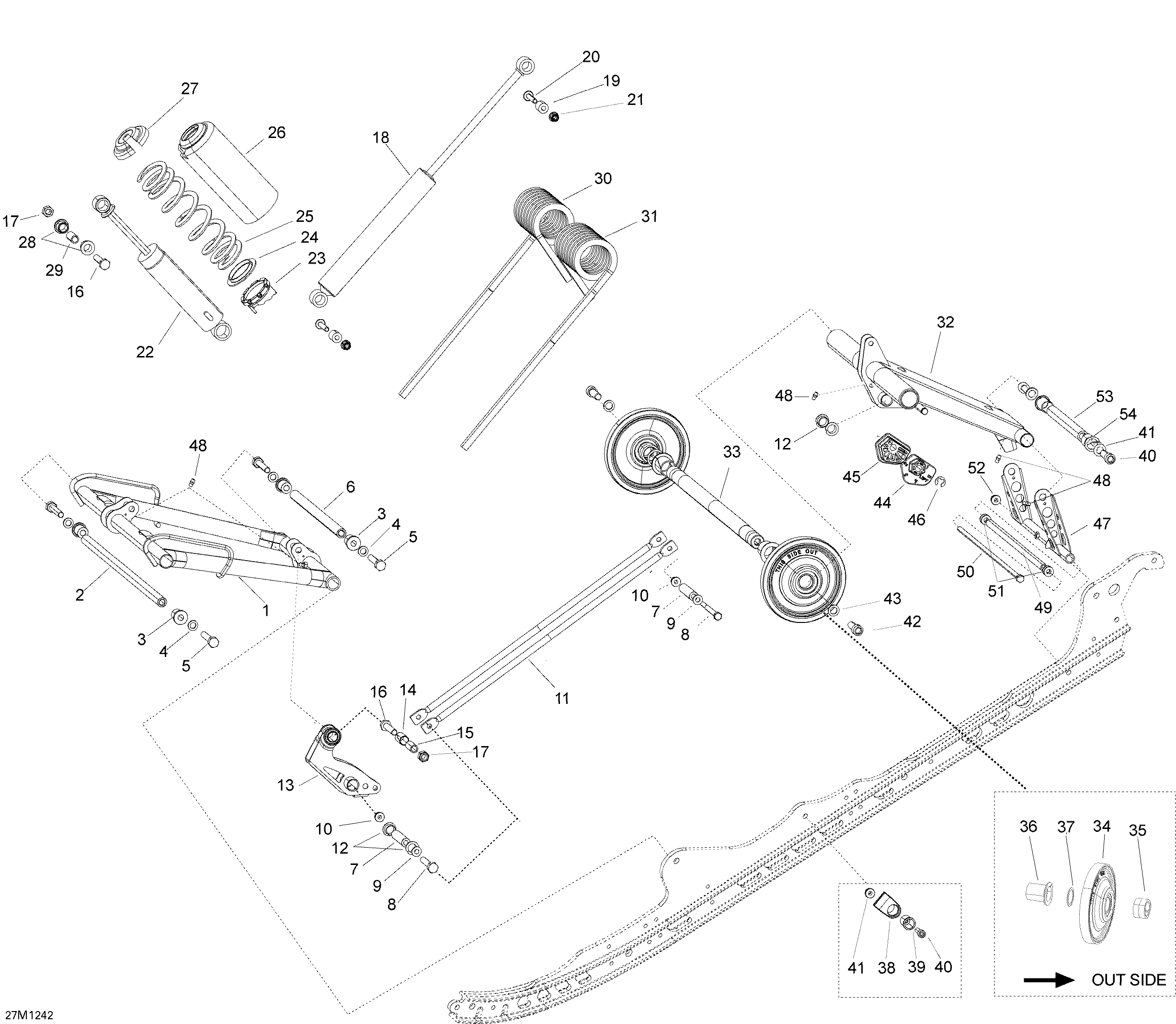

08- Front Arm для BRP Ski-Doo Skandic WT 600HOETEC XU - 2012
-
№АртикулНазвание
-
1503191707 Front Arm Ass'yFront Arm Ass'y
-
2503191391 Upper ShaftUpper Shaft
-
3503189324 CushionCushion
-
4503189564 WasherWasher
-
5207005546 Hex Screw M10 X 55Hex Screw M10 X 55
-
6503191390 Lower ShaftLower Shaft
-
7503190643 Bar AxleBar Axle
-
8207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
9503189157 WasherWasher
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11503191765 Link RodLink Rod
-
12503191555 Swivel BushingSwivel Bushing
-
13503192211 RockerRocker
-
14503191422 CushionCushion
-
15503189282 BushingBushing
-
16207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
17233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
18503192410 Rear ShockRear Shock
-
19414936000 CushionCushion
-
20207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22503192266 Center ShockCenter Shock
-
23503183700 Cam 45°Cam 45°
-
24503187500 Spring GuideSpring Guide
-
25503189686 SpringSpring
-
26503191126 ProtectorProtector
-
27706200881 Spring StopperSpring Stopper
-
28503189117 CushionCushion
-
29503189282 BushingBushing
-
30503192377 RH SpringRH Spring
-
31503192378 LH SpringLH Spring
-
32503191398 Rear Arm PRear Arm P
-
33503191405 Upper ShaftUpper Shaft
-
34503191738 Wheel, 155 mmWheel, 155 mm
-
35503191099 Retaining RingRetaining Ring
-
36503191451 CushionCushion
-
37503190328 WasherWasher
-
38503191183 Spring SupportSpring Support
-
39503190754 Retainer CushionRetainer Cushion
-
40205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
41233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
42205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
43503189276 WasherWasher
-
44503191565 LH Cam AdjusterLH Cam Adjuster
-
45503191566 RH Cam AdjusterRH Cam Adjuster
-
46293370013 E-CirclipE-Circlip
-
47503191393 Welded Arm PivotWelded Arm Pivot
-
48408200700 Grease FittingGrease Fitting
-
49503191396 Axle PivotAxle Pivot
-
50503191397 Bolt 369mmBolt 369mm
-
51503189157 WasherWasher
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
53503192330 Lower ShaftLower Shaft
-
54503191640 CushionCushion
