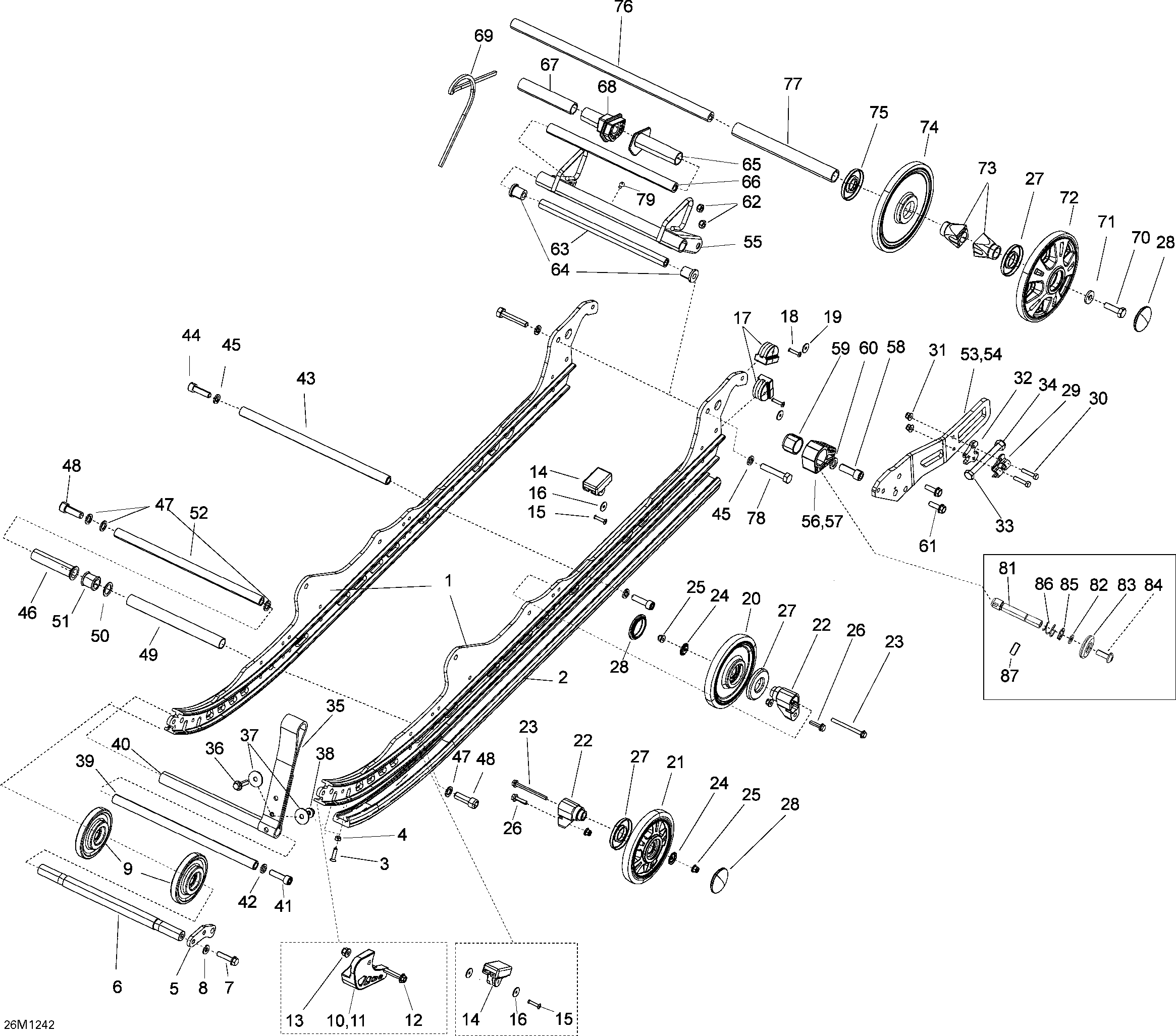

08- Rear Suspension для BRP Ski-Doo Skandic WT 600HOETEC XU - 2012
-
№АртикулНазвание
-
1503192617 Runner MachinedRunner Machined
-
2503192618 Slider 154Slider 154
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192612 PlatePlate
-
6503192643 AxleAxle
-
7207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8503189157 WasherWasher
-
9503192611 Wheel 100Wheel 100
-
10503192610 ProtectorProtector
-
11503192609 ProtectorProtector
-
12207084044 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503190576 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
16503191273 WasherWasher
-
17503191291 Rubber StopperRubber Stopper
-
18293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
19503191273 WasherWasher
-
20503191311 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
21503191152 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
22503193082 Casted SupportCasted Support
-
23250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
24503191820 Wheel Cup M6Wheel Cup M6
-
25233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
27503190434 Labyrinth SealLabyrinth Seal
-
28570063600 Wheel CapWheel Cap
-
29503192814 TensionerTensioner
-
30207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32503190379 Tensioner SpacerTensioner Spacer
-
33230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503192360 Stopper StrapStopper Strap
-
36207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
37224081301 Flat WasherFlat Washer
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39503192623 Axle StrapAxle Strap
-
40503192679 SpacerSpacer
-
41205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
42503189564 WasherWasher
-
43503191418 Axle StrapAxle Strap
-
44205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
45503189564 WasherWasher
-
46503191259 Center BushingCenter Bushing
-
47503189276 WasherWasher
-
48205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
49503191421 SpacerSpacer
-
50503190697 WasherWasher
-
51503189271 CushionCushion
-
52503191420 ShaftShaft
-
53503192435 Rail Pivot RHRail Pivot RH
-
54503192434 Rail Pivot LHRail Pivot LH
-
55503191414 Welded PivotWelded Pivot
-
56503192426 LH BlocLH Bloc
-
57503192427 RH BlocRH Bloc
-
58207682534 Hex. Flanged ScrewHex. Flanged Screw
-
59503189488 Block GuideBlock Guide
-
60503189148 WasherWasher
-
61207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
62232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
63503191390 Lower ShaftLower Shaft
-
64503189324 CushionCushion
-
65503191668 LH Spring CamLH Spring Cam
-
66503191711 Cam AxleCam Axle
-
67503191713 SpacerSpacer
-
68503191190 RH Spring CamRH Spring Cam
-
69503191603 SpringSpring
-
70250000019 Hex. Screw With NylonHex. Screw With Nylon
-
71503190439 WasherWasher
-
72503192128 Wheel 165, BlackWheel 165, Black
-
73503190428 Rear Wheel SpacerRear Wheel Spacer
-
74503192140 Wheel 165, BlackWheel 165, Black
-
75503190682 Labyrinth SealLabyrinth Seal
-
76503191408 Rear AxleRear Axle
-
77503191409 SpacerSpacer
-
78207005546 Hex Screw M10 X 55Hex Screw M10 X 55
-
79408200700 Grease FittingGrease Fitting
-
81503192437 RodeRode
-
82234051410 Flat Washer M5Flat Washer M5
-
83503192438 HandleHandle
-
84250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
85293370068 CirclipCirclip
-
86503192436 Compression SpringCompression Spring
-
87250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
