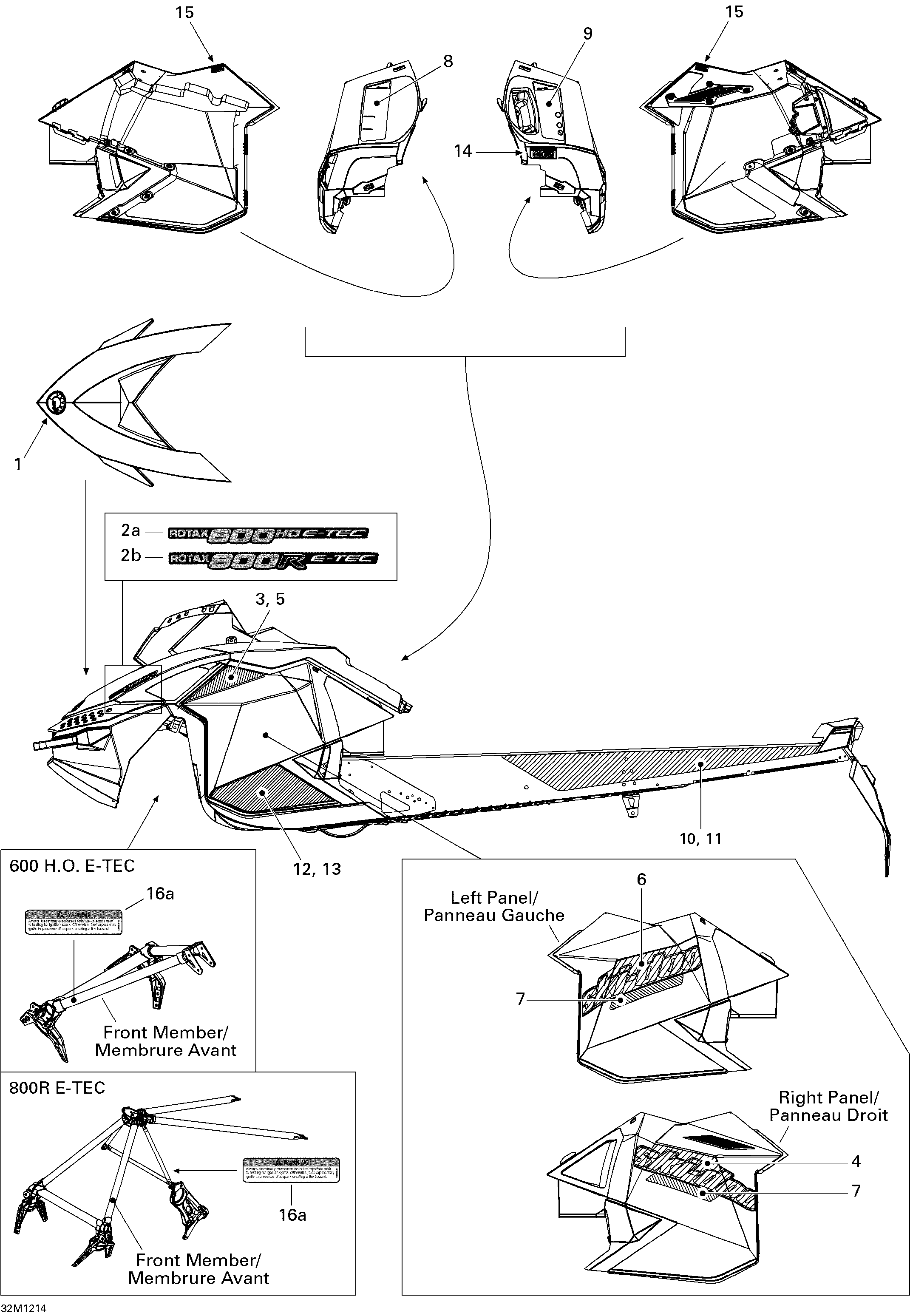

09- Decals 600HOETEC для BRP Ski-Doo Summit SP 600HO E-TEC - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2a516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004767 RH Upper Side DecalRH Upper Side Decal
-
4516004762 RH Side DecalRH Side Decal
-
5516004766 LH Upper Side DecalLH Upper Side Decal
-
6516004761 LH Side DecalLH Side Decal
-
7516004820 Side Decal, SummitSide Decal, Summit
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516004824 RH Frame Decal, REV XP 146''. Track 146''RH Frame Decal, REV XP 146''. Track 146''
-
10516004826 RH Frame Decal, REV XP 154''. Track 154''RH Frame Decal, REV XP 154''. Track 154''
-
11516004823 LH Frame Decal, REV XP 146''. Track 146''LH Frame Decal, REV XP 146''. Track 146''
-
11516004825 LH Frame Decal, REV XP 154''. Track 154''LH Frame Decal, REV XP 154''. Track 154''
-
12516004822 RH Lower DecalRH Lower Decal
-
13516004821 LH Lower DecalLH Lower Decal
-
14516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
16a516003940 Warning Decal, InjectorsWarning Decal, Injectors
