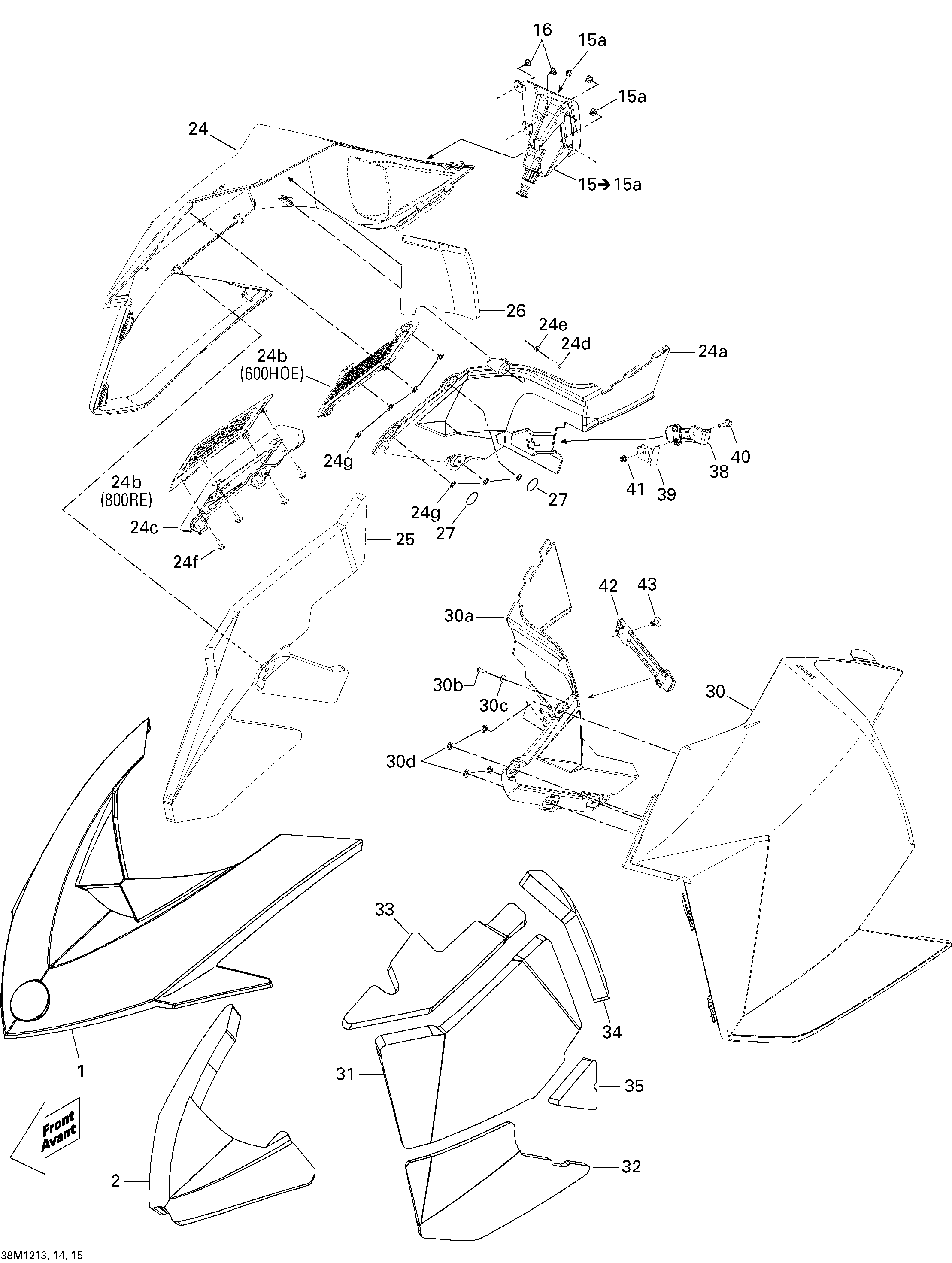

09- Hood 600 HO ETEC для BRP Ski-Doo Summit SP 600HO E-TEC - 2012
-
№АртикулНазвание
-
1517304530 HoodHood
-
2517304913 Hood FoamHood Foam
-
15517304322 RH Console. Manual StarterRH Console. Manual Starter
-
15a275500241 Cap, Black. Manual StarterCap, Black. Manual Starter
-
16250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
24517304029 RH Panel. Manual StarterRH Panel. Manual Starter
-
24517304210 RH Panel. Electric StarterRH Panel. Electric Starter
-
24a517304424 RH Moulding PanelRH Moulding Panel
-
24b517303622 Grill. 600HOEGrill. 600HOE
-
24d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24g732610072 Push NutPush Nut
-
25517304883 RH Center FoamRH Center Foam
-
26517304884 RH Panel Rear FoamRH Panel Rear Foam
-
27518325560 Adhesive PatchAdhesive Patch
-
30517304030 LH PanelLH Panel
-
30a517304431 LH Moulding PanelLH Moulding Panel
-
30b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
30c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
30d732610072 Push NutPush Nut
-
31517304887 LH Panel Center FoamLH Panel Center Foam
-
32517304888 LH Panel Lower FoamLH Panel Lower Foam
-
33517304889 LH Panel Upper FoamLH Panel Upper Foam
-
34517304890 LH Panel Rear FoamLH Panel Rear Foam
-
35517304891 FoamFoam
-
38517303612 RH Panel LatchRH Panel Latch
-
39517304221 Latch SupportLatch Support
-
40207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
42517303808 LH Panel LatchLH Panel Latch
-
43250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
