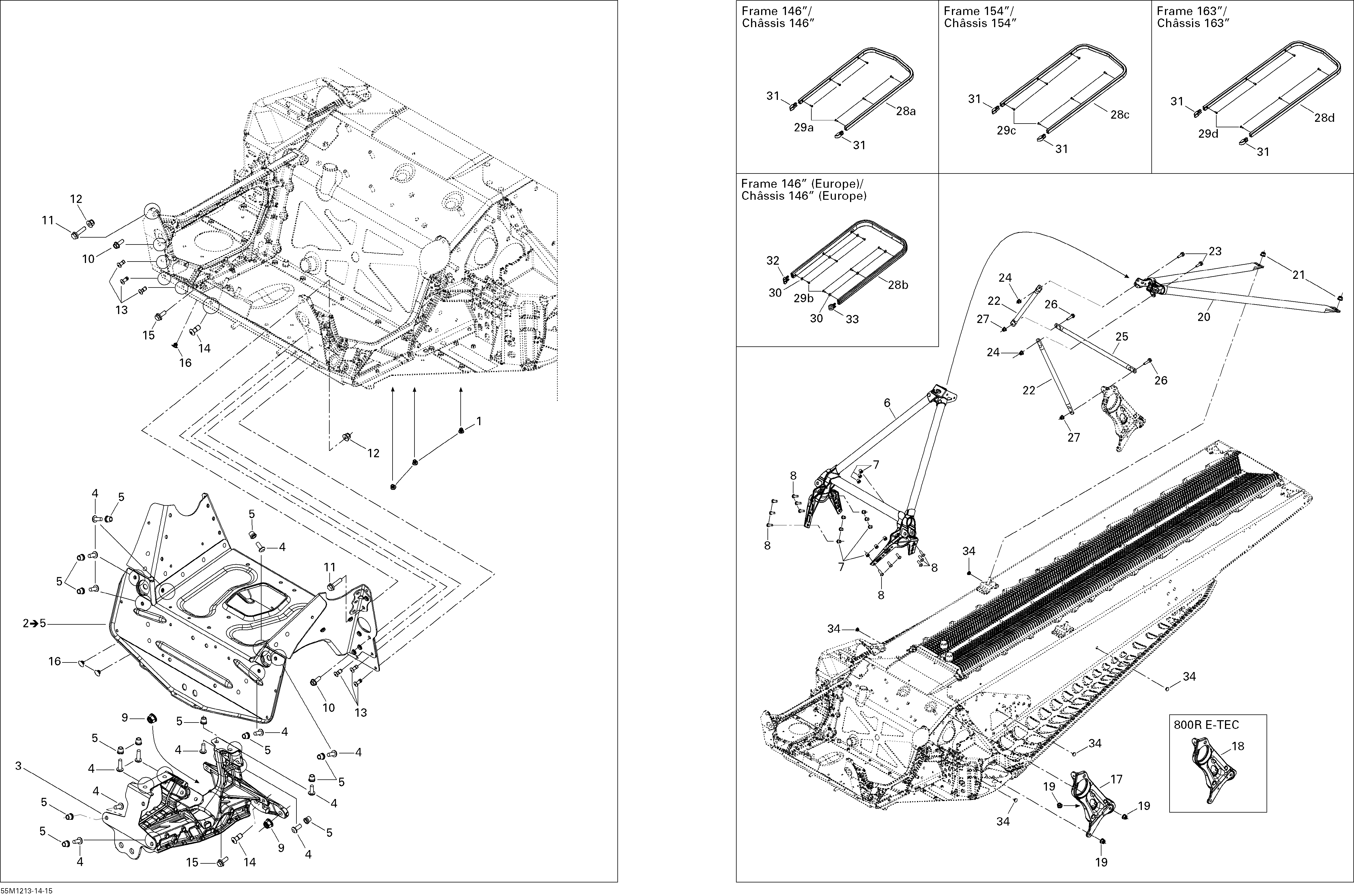

09- Frame and Components 800RETEC для BRP Ski-Doo Summit SP 800R E-TEC - 2012
-
№АртикулНазвание
-
1390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
2518325924 S-Module. Includes 2 to 5S-Module. Includes 2 to 5
-
3518325925 Front Suspension SupportFront Suspension Support
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6518326970 Front MemberFront Member
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
14293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
15207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16293730042 DartDart
-
18518327133 Driven Pulley SupportDriven Pulley Support
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20518326559 Rear MemberRear Member
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22518325114 Upper Column SupportUpper Column Support
-
23207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25518325115 Center Column SupportCenter Column Support
-
26207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28a518325374 Rear Bumper, 146''. Track 146'', North AmericaRear Bumper, 146''. Track 146'', North America
-
28b518325578 Rear Bumper, 146''. Track 146'', EuropeRear Bumper, 146''. Track 146'', Europe
-
28c518324982 Rear Bumper, 154''. Track 154''Rear Bumper, 154''. Track 154''
-
28D518325375 Rear Bumper, 163''. Track 163''Rear Bumper, 163''. Track 163''
-
29a250000402 Torx-Truss Screw M6 X 18. Track 146''Torx-Truss Screw M6 X 18. Track 146''
-
29b250000402 Torx-Truss Screw M6 X 18. Track 146'', EuropeTorx-Truss Screw M6 X 18. Track 146'', Europe
-
29c250000402 Torx-Truss Screw M6 X 18. Track 154''Torx-Truss Screw M6 X 18. Track 154''
-
29D250000402 Torx-Truss Screw M6 X 18. Track 163''Torx-Truss Screw M6 X 18. Track 163''
-
30224061201 Flat Washer. Track 146'', EuropeFlat Washer. Track 146'', Europe
-
31520000567 Cap. Track 146'', North AmericaCap. Track 146'', North America
-
31520000567 Cap. Track 154''Cap. Track 154''
-
31520000567 Cap. Track 163''Cap. Track 163''
-
32520000711 RH Cap. Track 146'', EuropeRH Cap. Track 146'', Europe
-
33520000712 LH Cap. Track 146'', EuropeLH Cap. Track 146'', Europe
-
34293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
