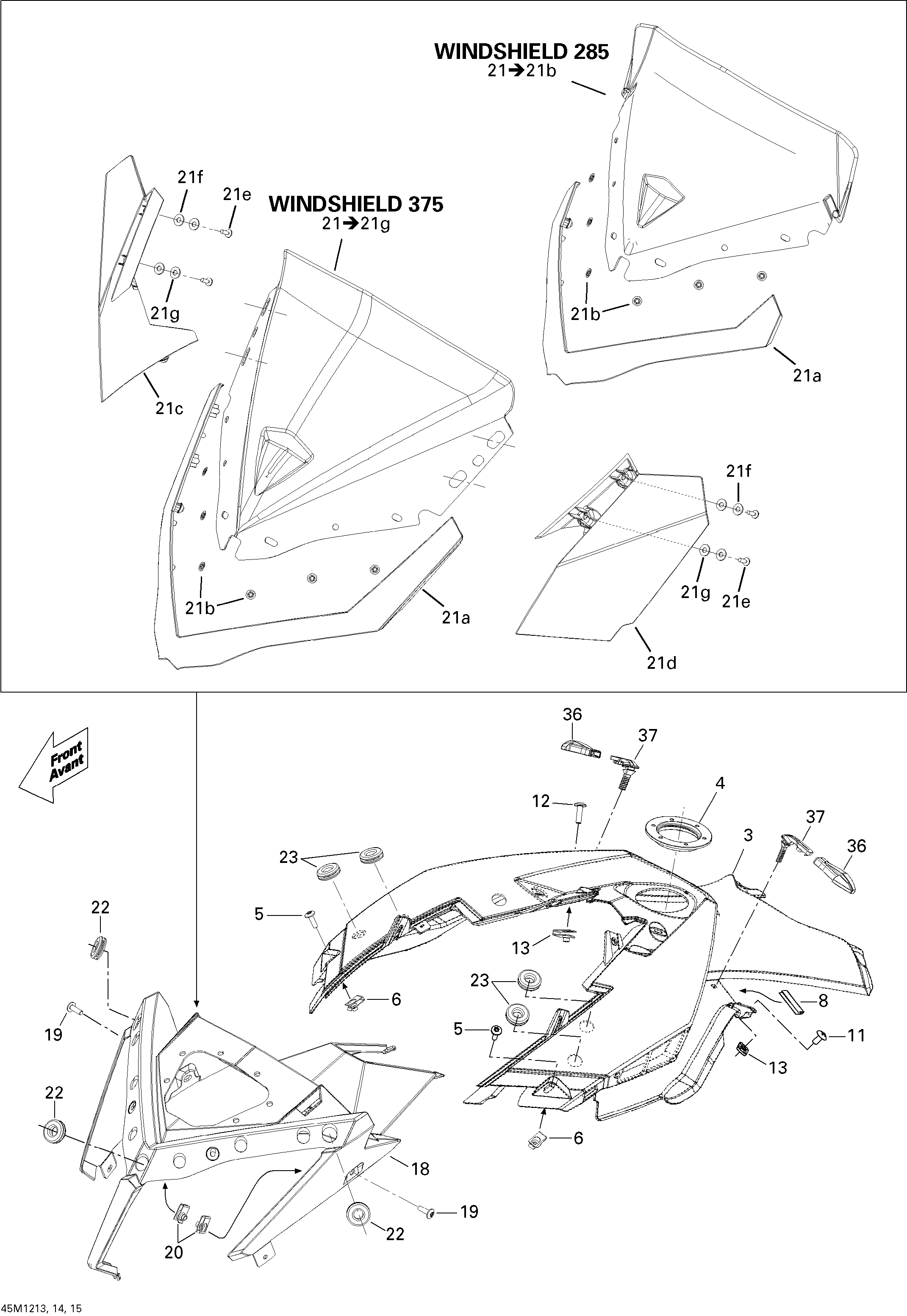

09- Windshield And Console 800R ETEC для BRP Ski-Doo Summit SP 800R E-TEC - 2012
-
№АртикулНазвание
-
3517304672 Console, Deep Black. 800REConsole, Deep Black. 800RE
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6732610057 Jack Nut M6. 800REJack Nut M6. 800RE
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304575 Gauge SupportGauge Support
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21517304390 Windshield Ass'y 285. North AmericaWindshield Ass'y 285. North America
-
21a517303757 Windshield Support. North AmericaWindshield Support. North America
-
21b732610072 Push Nut. North AmericaPush Nut. North America
-
21a517303607 Windshield Support. EuropeWindshield Support. Europe
-
21b732610072 Push Nut. EuropePush Nut. Europe
-
21c517303604 RH Air Deflector. EuropeRH Air Deflector. Europe
-
21d517303605 LH Air Deflector. EuropeLH Air Deflector. Europe
-
21e250000146 Truss Head Torx Screw K50 X 16. EuropeTruss Head Torx Screw K50 X 16. Europe
-
21f250200025 Washer M5. EuropeWasher M5. Europe
-
21g250200024 Rubber Washer 5 mm. EuropeRubber Washer 5 mm. Europe
-
22517303756 GrommetGrommet
-
23517303756 Grommet. EuropeGrommet. Europe
-
36860200239 Black Latch Kit. BlackBlack Latch Kit. Black
-
36517304435 End Piece Latch, Bright White. WhiteEnd Piece Latch, Bright White. White
-
37517303981 Panel LatchPanel Latch
