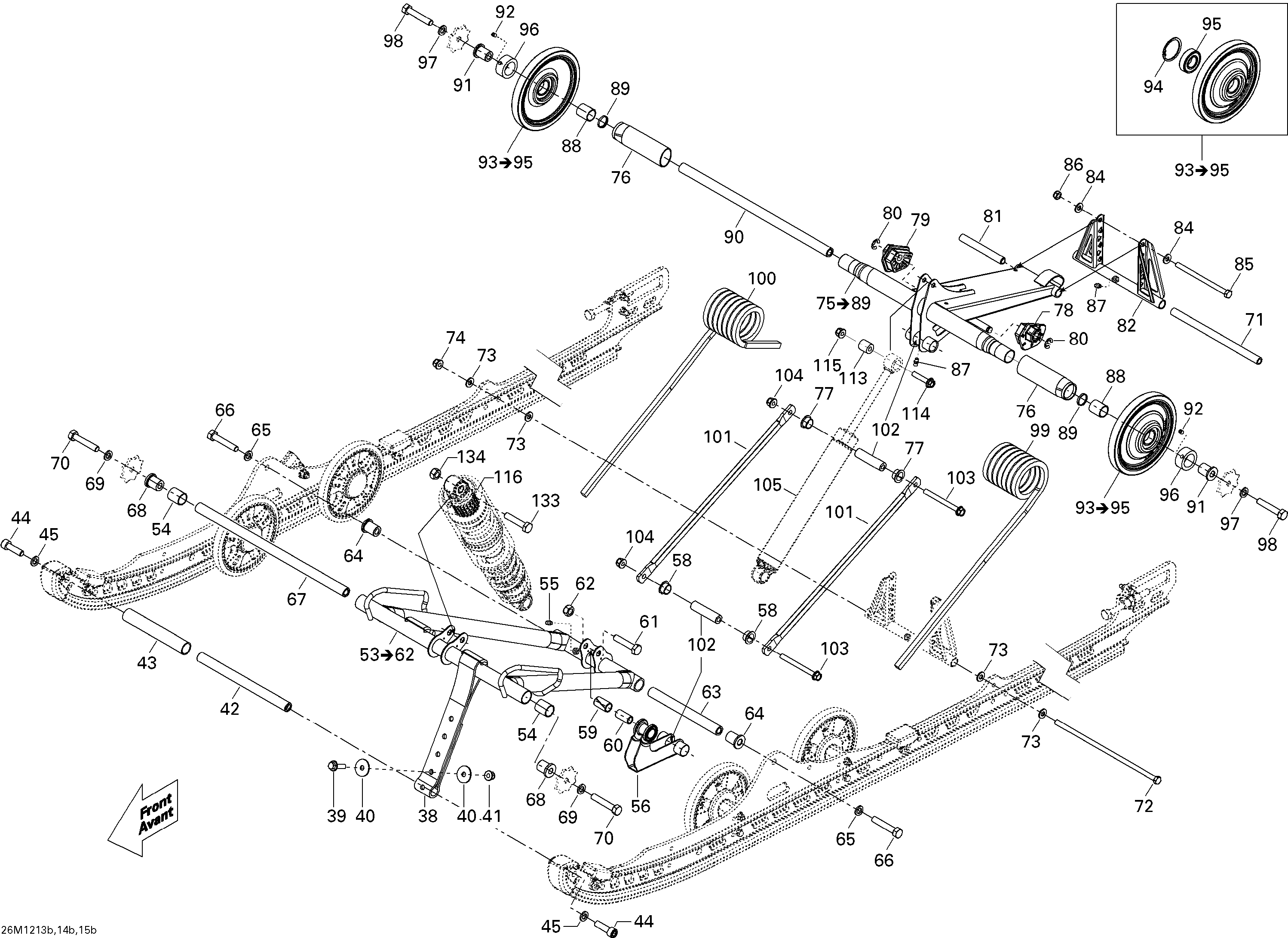

08- Rear Suspension Arm для BRP Ski-Doo Summit X 800R E-TEC - 2012
-
№АртикулНазвание
-
38503192360 Stopper StrapStopper Strap
-
39207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
40224081301 Flat WasherFlat Washer
-
41233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
42503191260 Axle StrapAxle Strap
-
43503191448 SpacerSpacer
-
44205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
45503189564 WasherWasher
-
42503191260 Axle StrapAxle Strap
-
53503192948 Front Arm Ass'yFront Arm Ass'y
-
54503191556 Extended BushingExtended Bushing
-
55408200700 Grease FittingGrease Fitting
-
56503192211 RockerRocker
-
58503191555 Swivel BushingSwivel Bushing
-
59503193037 BushingBushing
-
60503189282 BushingBushing
-
61207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
62233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
63503191279 Lower ShaftLower Shaft
-
64503189324 CushionCushion
-
65503192496 WasherWasher
-
66250000469 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
67503191215 Upper ShaftUpper Shaft
-
68503191262 BushingBushing
-
69503192496 WasherWasher
-
70250000469 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
71503189156 Pivot Arm AxlePivot Arm Axle
-
72503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
73503192494 WasherWasher
-
74250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
75503191762 Rear ArmRear Arm
-
76572080700 BushingBushing
-
77503191555 Swivel BushingSwivel Bushing
-
78503191565 LH Cam AdjusterLH Cam Adjuster
-
79503191566 RH Cam AdjusterRH Cam Adjuster
-
80293370013 E-CirclipE-Circlip
-
81503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
82503191209 Pivot ArmPivot Arm
-
84503189157 WasherWasher
-
85732601197 Bolt M8, ShortBolt M8, Short
-
86232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
87408200700 Grease FittingGrease Fitting
-
88503191556 Extended BushingExtended Bushing
-
89503191651 WasherWasher
-
90503191215 Upper ShaftUpper Shaft
-
91503191262 BushingBushing
-
92206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
93503191738 Wheel, 155 mm. Includes 93 to 95Wheel, 155 mm. Includes 93 to 95
-
94415129371 Retaining RingRetaining Ring
-
95503191982 Ball BearingBall Bearing
-
96503168800 Retaining RingRetaining Ring
-
97503192496 WasherWasher
-
98250000469 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
99503193003 LH Square SpringLH Square Spring
-
100503193002 RH Square SpringRH Square Spring
-
101503191148 Link RodLink Rod
-
102503190643 Bar AxleBar Axle
-
103207688544 Hex. Flanged ScewHex. Flanged Scew
-
104233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
113414936000 CushionCushion
-
114207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
115233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
133207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
134233601416 Elastic Locking Nut M10Elastic Locking Nut M10
