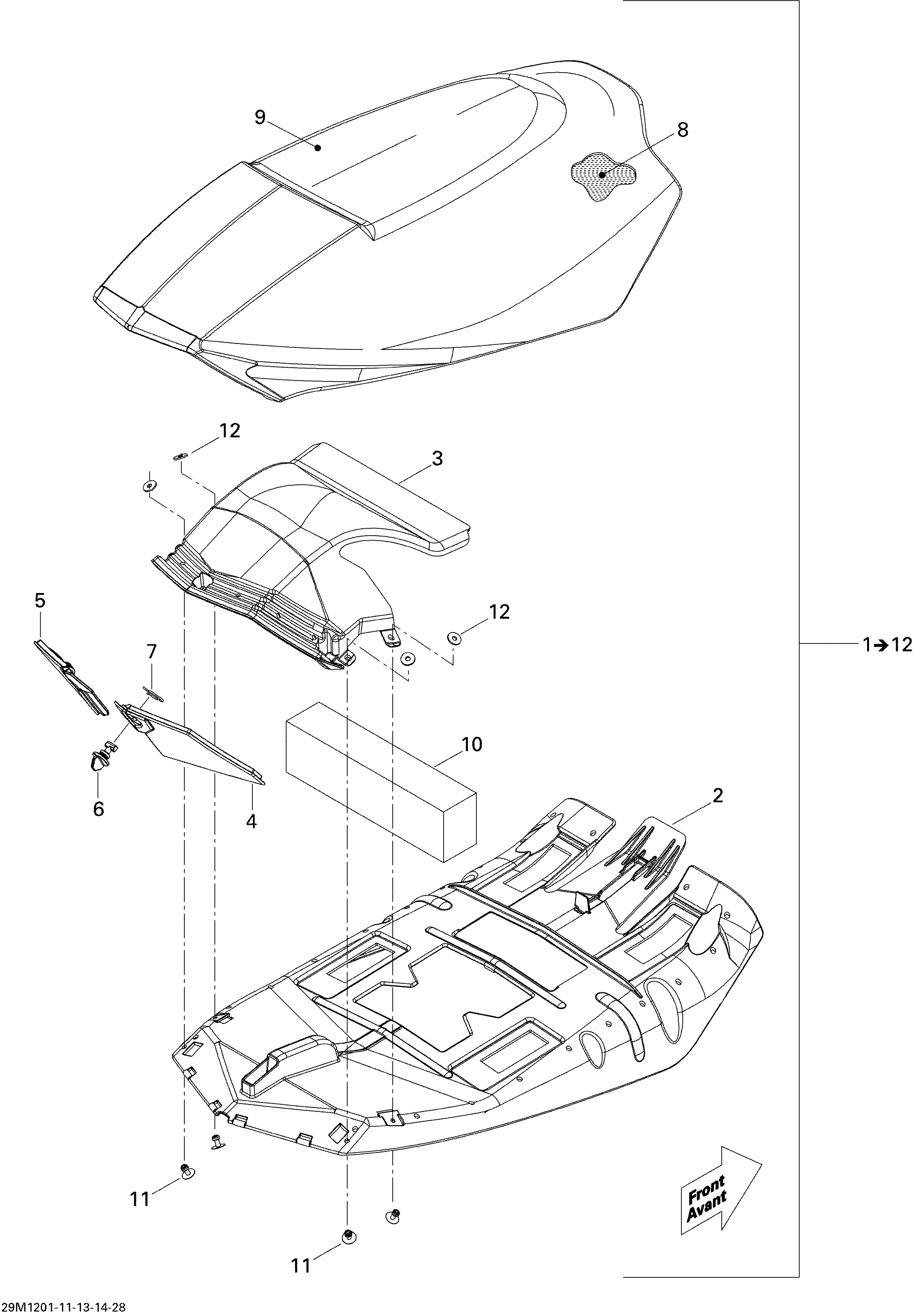

09- Seat для BRP Ski-Doo Summit X 800R E-TEC - 2012
-
№АртикулНазвание
-
2510005417 Seat BaseSeat Base
-
3510005413 Seat BoxSeat Box
-
4510005414 RH DoorRH Door
-
5510005415 LH DoorLH Door
-
6510005416 LockLock
-
7250400055 Hairpin ClipHairpin Clip
-
8510005411 Seat FoamSeat Foam
-
9510005412 Seat Cover. Summit X Black-BlackSeat Cover. Summit X Black-Black
-
9510005486 Seat Cover. Summit X Black-WhiteSeat Cover. Summit X Black-White
-
10510005504 FoamFoam
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12391301600 WasherWasher
