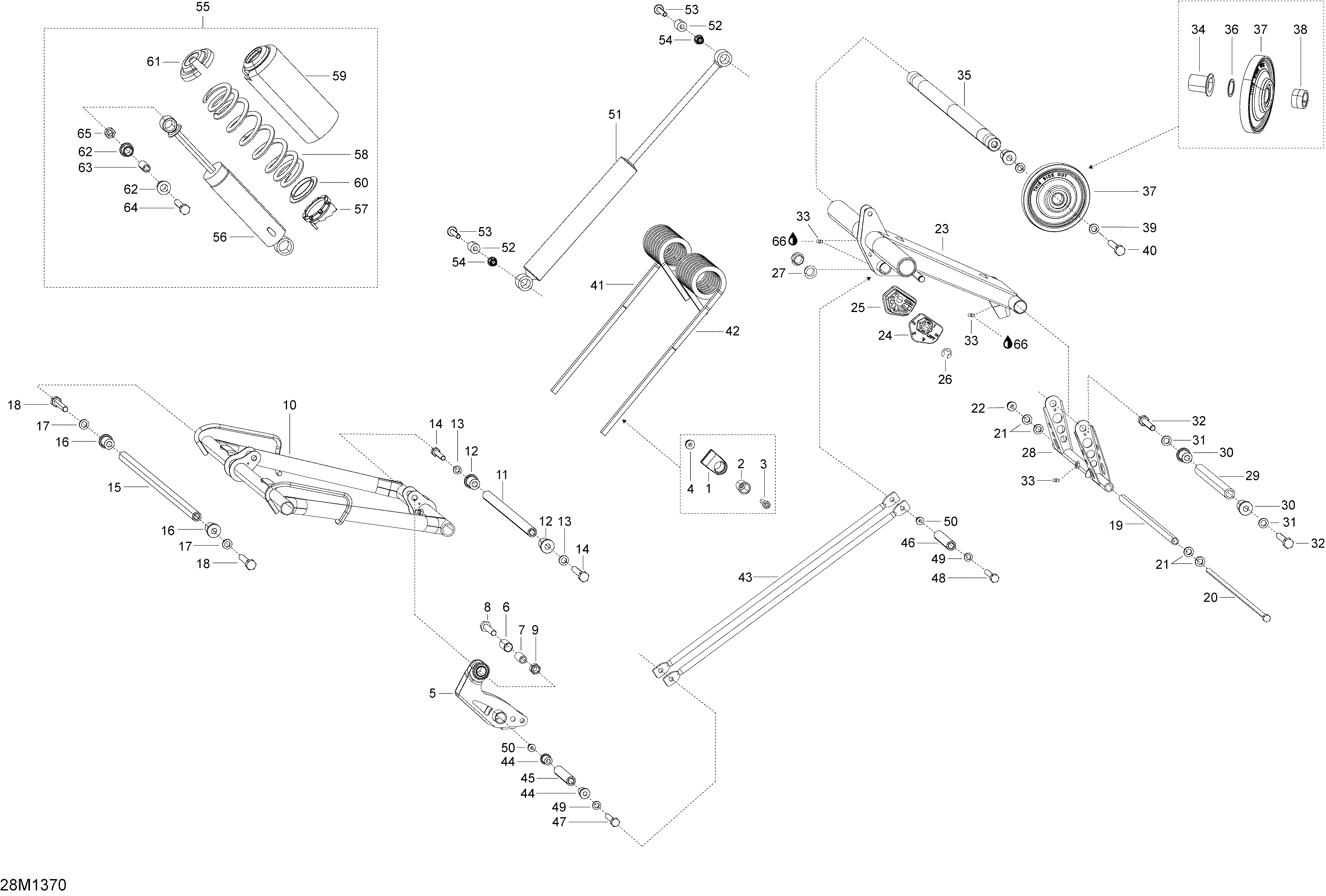

08- Rear Suspension для BRP Ski-Doo EXPEDITION LE 600HOE, REV XU - 2013
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503192211 RockerRocker
-
6503193037 BushingBushing
-
7503189282 BushingBushing
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front Arm Ass'yFront Arm Ass'y
-
11503191390 Lower ShaftLower Shaft
-
12503189324 CushionCushion
-
13503189564 WasherWasher
-
14207005546 Hex Screw M10 X 55Hex Screw M10 X 55
-
15503191391 Upper ShaftUpper Shaft
-
16503189324 CushionCushion
-
17503192496 WasherWasher
-
18207005546 Hex Screw M10 X 55Hex Screw M10 X 55
-
19503191396 Axle PivotAxle Pivot
-
20503191397 Bolt 369mmBolt 369mm
-
21503189157 WasherWasher
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23503191709 Rear Arm Ass'yRear Arm Ass'y
-
24503191565 LH Cam AdjusterLH Cam Adjuster
-
25503191566 RH Cam AdjusterRH Cam Adjuster
-
26293370013 E-CirclipE-Circlip
-
27503191555 Swivel BushingSwivel Bushing
-
28503191393 Welded Arm PivotWelded Arm Pivot
-
29503192330 Lower ShaftLower Shaft
-
30503191640 CushionCushion
-
31503189148 WasherWasher
-
32205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
33408200700 Grease FittingGrease Fitting
-
34503191451 CushionCushion
-
35503191405 Upper ShaftUpper Shaft
-
36503190328 WasherWasher
-
37503191738 Wheel Ass'y, 155 mmWheel Ass'y, 155 mm
-
38503191099 Retaining RingRetaining Ring
-
39503192491 WasherWasher
-
40250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
41503192377 RH SpringRH Spring
-
42503192378 LH SpringLH Spring
-
43503191765 Link RodLink Rod
-
44503191555 Swivel BushingSwivel Bushing
-
45503190643 Axle Bar (Long)Axle Bar (Long)
-
46503190643 Axle Bar (Long)Axle Bar (Long)
-
47207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
48207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
49503189157 WasherWasher
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
51503192410 Rear ShockRear Shock
-
52414936000 CushionCushion
-
53207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
54233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56503192266 Center ShockCenter Shock
-
57505070150 Adjustment CamAdjustment Cam
-
58503191880 SpringSpring
-
59503191126 ProtectorProtector
-
60503191872 Spring GuideSpring Guide
-
61706200881 Spring StopperSpring Stopper
-
62503189117 CushionCushion
-
63503189282 BushingBushing
-
64207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
65233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
66293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
