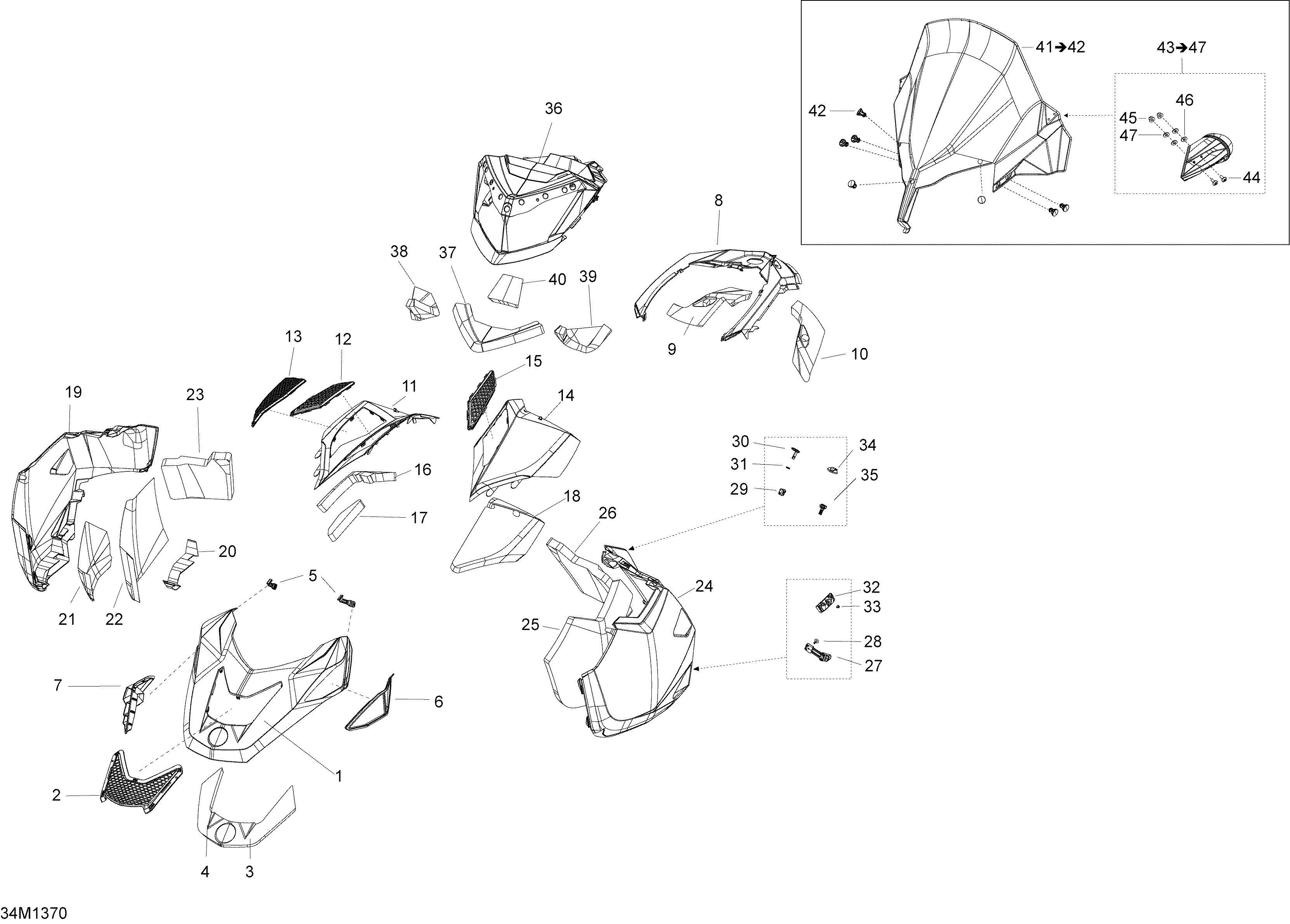

09- Hood для BRP Ski-Doo EXPEDITION LE 600HOE, REV XU - 2013
-
№АртикулНазвание
-
1517304812 HoodHood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6508000609 Air FilterAir Filter
-
7517304155 Scoop GrillScoop Grill
-
8517305220 ConsoleConsole
-
9517304318 InsulatorInsulator
-
10517304317 InsulatorInsulator
-
11517304829 Side Access Panel RHSide Access Panel RH
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Acces GrillRH Lower Acces Grill
-
14517304839 Side Access Panel LHSide Access Panel LH
-
15517303893 LH Access Panel GrillLH Access Panel Grill
-
16517304311 InsulatorInsulator
-
17517304312 InsulatorInsulator
-
18517304313 InsulatorInsulator
-
19517304866 Side Pannel RHSide Pannel RH
-
20517304215 Aluminium FoilAluminium Foil
-
21517304216 Aluminium FoilAluminium Foil
-
22517303890 RH FoamRH Foam
-
23517304310 RH Rear FoamRH Rear Foam
-
24517304869 Side Pannel LHSide Pannel LH
-
25517303891 LH FoamLH Foam
-
26517304309 LH Rear FoamLH Rear Foam
-
27517304572 Latch-PanelLatch-Panel
-
28293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
29517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
30517304296 Quarter-Turn HandleQuarter-Turn Handle
-
31517304538 Locking PlateLocking Plate
-
32517304497 Side Panel SupportSide Panel Support
-
33M36005 RivetRivet
-
34860200239 Black Latch KitBlack Latch Kit
-
35517304573 Latch-PanelLatch-Panel
-
36517304272 Indicator SupportIndicator Support
-
37517304314 InsulatorInsulator
-
38517304315 InsulatorInsulator
-
39517304316 InsulatorInsulator
-
40517304319 InsulatorInsulator
-
41860200555 Windshield Ass'yWindshield Ass'y
-
42517304744 ButtonButton
-
43517304628 Mirror RH/LHMirror RH/LH
-
44250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
45232361493 Domed Nut M6Domed Nut M6
-
46250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
47M20117 WasherWasher
