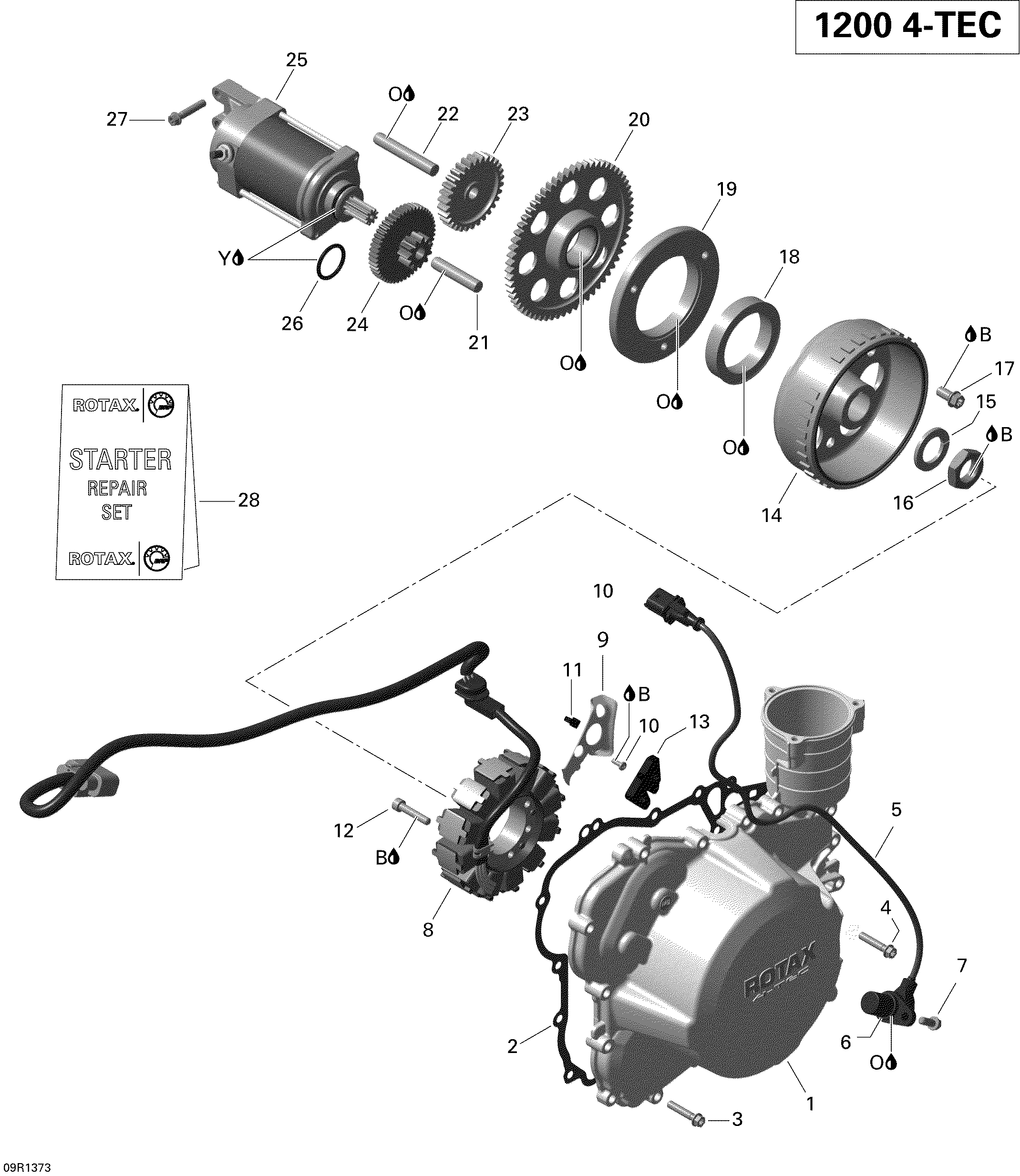

03- Magneto And Electric Starter для BRP Ski-Doo EXPEDITION SE 12004TEC, REVXU - 2013
-
№АртикулНазвание
-
1420611833 CoverCover
-
2420430750 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420892374 Stator PlateStator Plate
-
9420951192 Cable HolderCable Holder
-
10420640085 Torx Screw 3.5 X 8Torx Screw 3.5 X 8
-
11420866717 Tie-RapTie-Rap
-
12205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
13420860052 SpacerSpacer
-
14420892361 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
16420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
17420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Housing Sprag ClutchHousing Sprag Clutch
-
20420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
21420229301 Location PinLocation Pin
-
22420229475 Needle PinNeedle Pin
-
23420634605 Gear, 30 TeethGear, 30 Teeth
-
24420634741 Double GearDouble Gear
-
25420892421 Starter Ass'yStarter Ass'y
-
26420250140 O-Ring. Includes 23 to 24O-Ring. Includes 23 to 24
-
27420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
28420881140 Carbon Brush SetCarbon Brush Set
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
