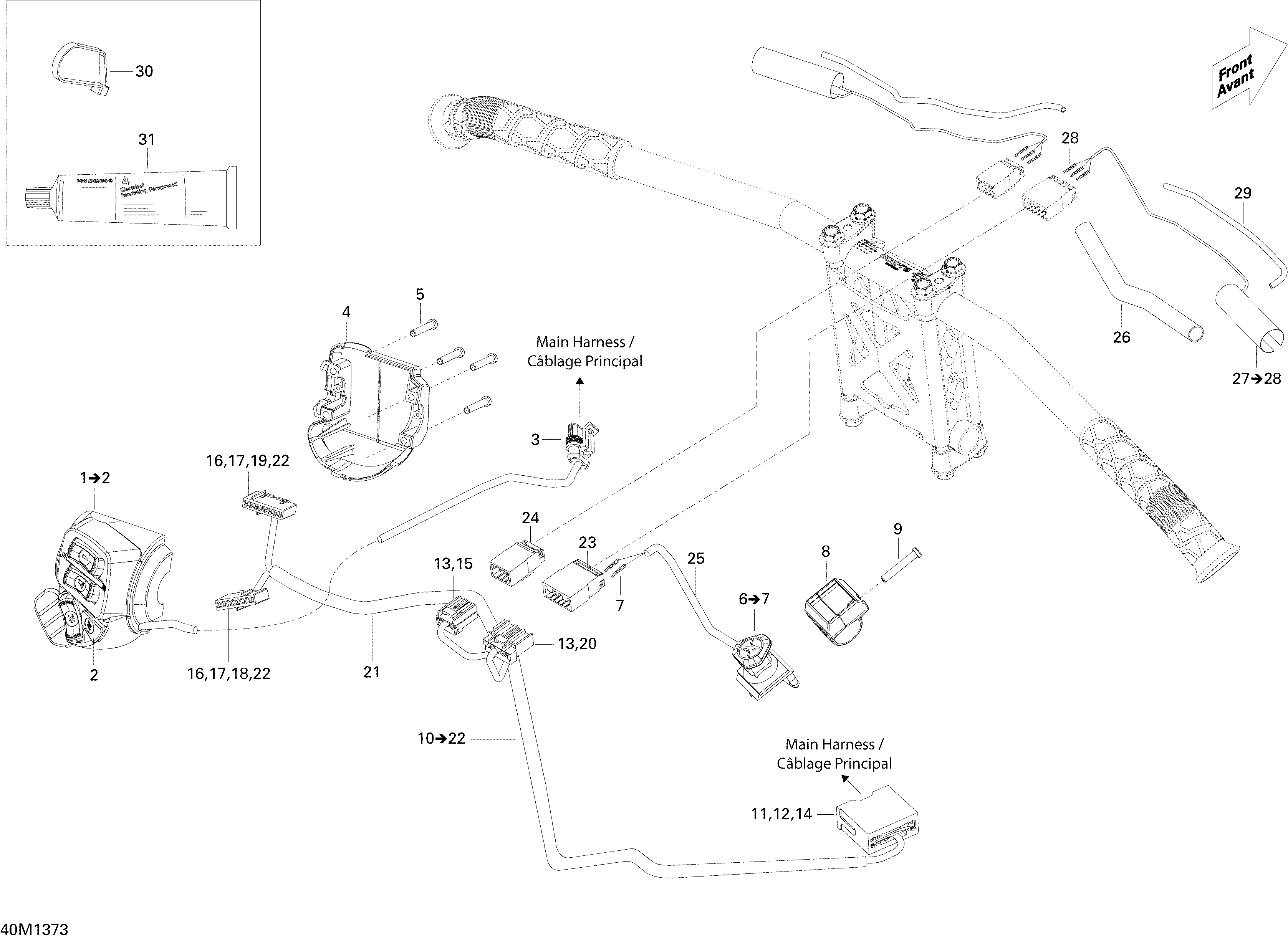

10- Steering Wiring Harness для BRP Ski-Doo EXPEDITION SE 12004TEC, REVXU - 2013
-
№АртикулНазвание
-
1515177020 LH Housing. Includes 1 to 2LH Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
4515175926 Housing Switch PlateHousing Switch Plate
-
5250000263 Torx Screw #8-18. Includes 5 to 6Torx Screw #8-18. Includes 5 to 6
-
6515177061 Kill SwitchKill Switch
-
7515175232 Male TerminalMale Terminal
-
8515176825 Kill Switch SupportKill Switch Support
-
9250000263 Torx Screw #8-18. Includes 9 to 25Torx Screw #8-18. Includes 9 to 25
-
10515176868 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
11515175232 Male TerminalMale Terminal
-
12515175273 Male TerminalMale Terminal
-
13515175231 Female TerminalFemale Terminal
-
14515175351 Male Terminal Housing, 15 CircuitsMale Terminal Housing, 15 Circuits
-
16515175808 Female TerminalFemale Terminal
-
17515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
18515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
19515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
20515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
21515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
22515175941 Female TerminalFemale Terminal
-
23515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
24515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
25515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
26515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
27506152428 Heated Film, 25WHeated Film, 25W
-
28515175232 Male TerminalMale Terminal
-
29515175332 Vinyl Tubing, Low Temperature. Includes 29 to 30Vinyl Tubing, Low Temperature. Includes 29 to 30
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
