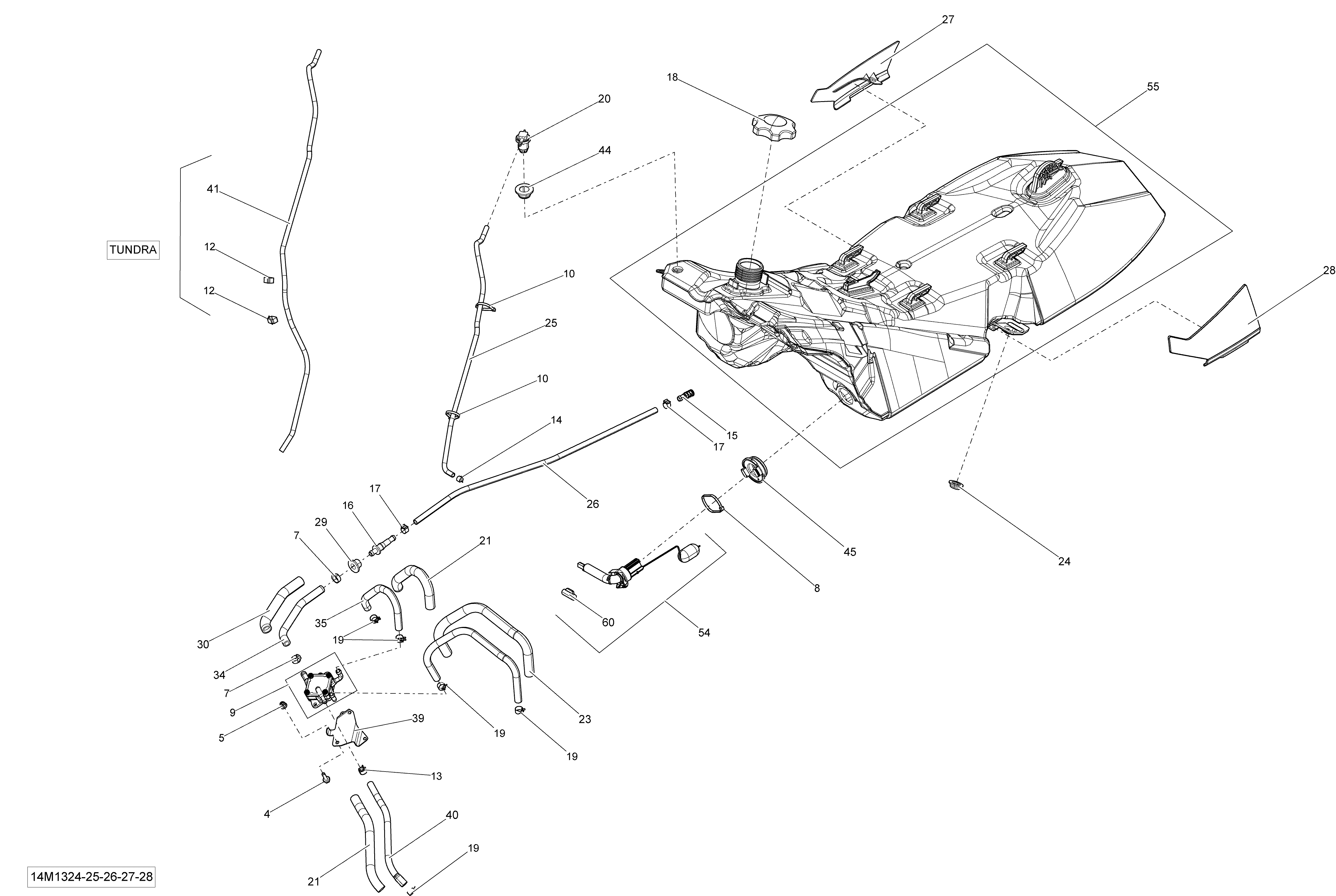

02- Fuel System для BRP Ski-Doo GRAND TOURING SPORT 550F XP - 2013
-
№АртикулНазвание
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7293650053 Crimp ClampCrimp Clamp
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9403901813 Fuel PumpFuel Pump
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13414415200 Universal Spring ClampUniversal Spring Clamp
-
14414554800 Spring Clamp. Except TundraSpring Clamp. Except Tundra
-
15414872100 Fuel FilterFuel Filter
-
16414872700 Male ConnectorMale Connector
-
17513033010 Norma Spring ClampNorma Spring Clamp
-
18513033720 Fuel Tank Cap. Octane 87Fuel Tank Cap. Octane 87
-
18513033721 Fuel Tank Cap. Octane 92Fuel Tank Cap. Octane 92
-
19513033029 Universal Spring ClampUniversal Spring Clamp
-
20513033188 Check ValveCheck Valve
-
21415080000 Tubing 16 mmTubing 16 mm
-
23415080000 Tubing 16 mmTubing 16 mm
-
24513033326 Shoulder BushingShoulder Bushing
-
25415080200 Hose, Polyurethane. Except TundraHose, Polyurethane. Except Tundra
-
26513033332 HoseHose
-
29513033435 GrommetGrommet
-
30415080000 Tubing 16 mmTubing 16 mm
-
34513033499 Formed HoseFormed Hose
-
35415129492 HoseHose
-
39513033543 Pump BracketPump Bracket
-
40513033553 Formed HoseFormed Hose
-
44513033596 GrommetGrommet
-
45513033606 GrommetGrommet
-
54513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
55513033695 Fuel Tank Ass'yFuel Tank Ass'y
-
60710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
