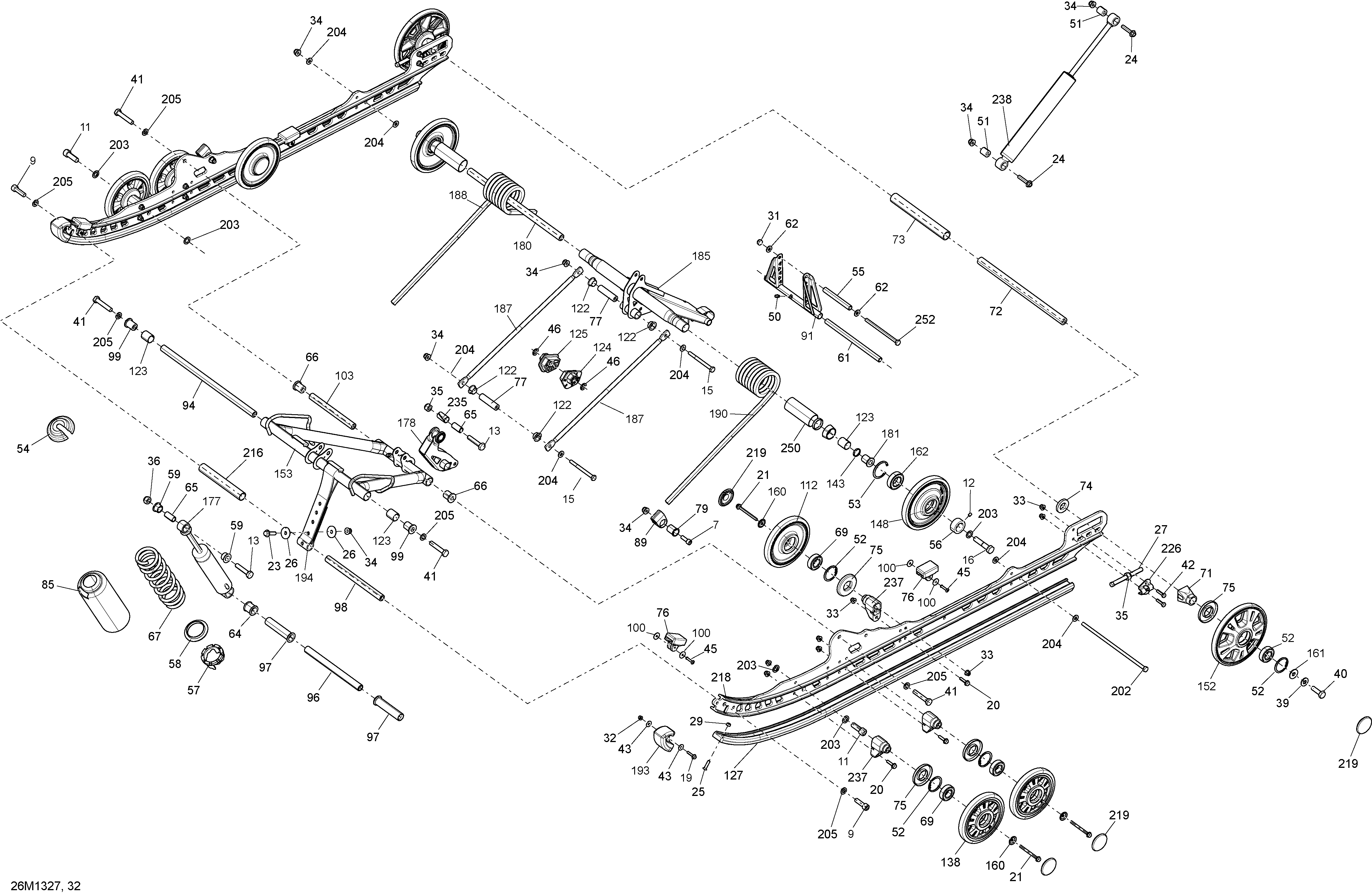

08- Rear Suspension для BRP Ski-Doo GRAND TOURING SPORT 550F XP - 2013
-
№АртикулНазвание
-
7205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
9205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
11205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
12206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
13207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
15207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
16207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
19207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
20207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
21207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
23207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
24207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
25208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
26250200128 Flat Washer 8 mmFlat Washer 8 mm
-
27230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
32233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
33233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
35233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
39234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
40250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
41250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
42250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
43250200140 WasherWasher
-
45293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
46293370013 E-CirclipE-Circlip
-
50408200700 Grease FittingGrease Fitting
-
51414936000 CushionCushion
-
52415129371 Retaining RingRetaining Ring
-
53415129780 Retaining RingRetaining Ring
-
54706200881 Spring StopperSpring Stopper
-
55503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
56503168800 Retaining RingRetaining Ring
-
57505070150 Adjustment CamAdjustment Cam
-
58503191872 Spring GuideSpring Guide
-
59503189117 CushionCushion
-
61503189156 Pivot Arm AxlePivot Arm Axle
-
62503189157 WasherWasher
-
64503189271 CushionCushion
-
65503189282 BushingBushing
-
66503189324 CushionCushion
-
67503191882 SpringSpring
-
69503190396 Ball BearingBall Bearing
-
71503190428 Rear Wheel SpacerRear Wheel Spacer
-
72503190429 Rear AxleRear Axle
-
73503191108 SpacerSpacer
-
74503190432 WasherWasher
-
75503190434 Labyrinth SealLabyrinth Seal
-
76503190576 Rubber StopperRubber Stopper
-
77503190643 Axle Bar (Long)Axle Bar (Long)
-
79503190754 Retainer CushionRetainer Cushion
-
85503191126 ProtectorProtector
-
89503191183 Spring SupportSpring Support
-
91503191209 Pivot ArmPivot Arm
-
94503191215 Upper ShaftUpper Shaft
-
96503191258 Center Shock ShaftCenter Shock Shaft
-
97503191259 Center BushingCenter Bushing
-
98503191260 Axle StrapAxle Strap
-
99503191262 BushingBushing
-
100503191273 WasherWasher
-
103503191279 Lower ShaftLower Shaft
-
112503191311 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
122503191555 Swivel BushingSwivel Bushing
-
123503191556 Extended BushingExtended Bushing
-
124503191565 LH Cam AdjusterLH Cam Adjuster
-
125503191566 RH Cam AdjusterRH Cam Adjuster
-
127503191619 SliderSlider
-
138503191624 Wheel Ass'y, 147 mm, Full MoonWheel Ass'y, 147 mm, Full Moon
-
143503191651 WasherWasher
-
148503191738 Wheel Ass'y, 155 mmWheel Ass'y, 155 mm
-
152503191627 Wheel, 180 mm, Full MoonWheel, 180 mm, Full Moon
-
153503191752 Front ArmFront Arm
-
160503191820 Wheel Cup M6Wheel Cup M6
-
161503191910 WasherWasher
-
164503191982 Ball BearingBall Bearing
-
177503192266 Center ShockCenter Shock
-
178503192211 RockerRocker
-
180503192222 Upper ShaftUpper Shaft
-
181503192223 BushingBushing
-
185503192253 Rear ArmRear Arm
-
187503192255 Linkage RodLinkage Rod
-
188503192270 RH Spring, SquareRH Spring, Square
-
190503192271 LH Spring, SquareLH Spring, Square
-
193503192299 Runner ProtectorRunner Protector
-
194503192360 Stopper StrapStopper Strap
-
202503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
203503192491 WasherWasher
-
204503192494 WasherWasher
-
205503192496 WasherWasher
-
216503192678 SpacerSpacer
-
218503192738 Runner 137''Runner 137''
-
219503192771 Wheel CapWheel Cap
-
226503192814 TensionerTensioner
-
235503193037 BushingBushing
-
237503193082 Casted SupportCasted Support
-
238503193190 Rear Shock HPG SEALRear Shock HPG SEAL
-
250572080700 BushingBushing
-
252732601197 Bolt M8, ShortBolt M8, Short
