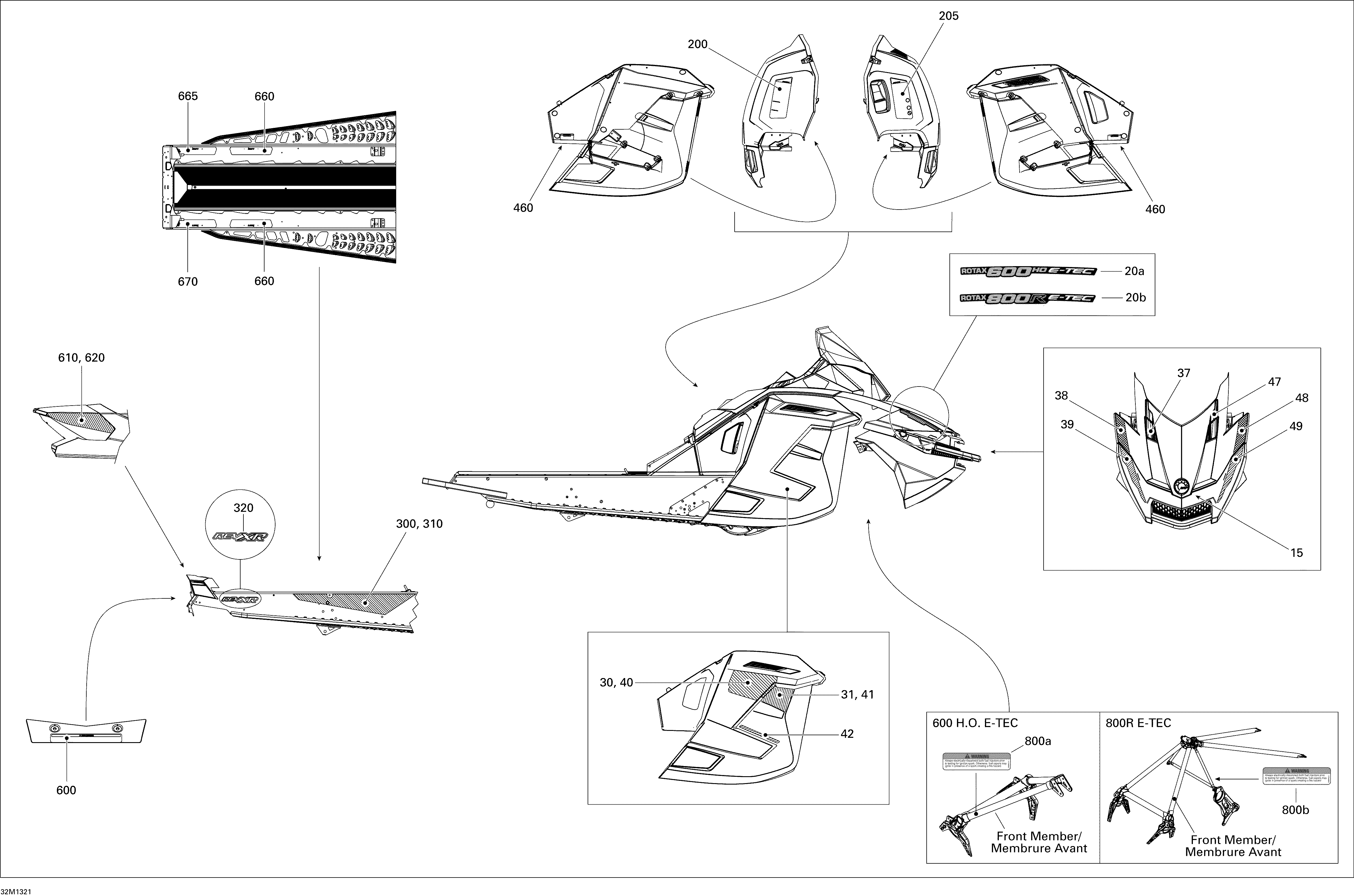

09- Decals 600HOETEC для BRP Ski-Doo GSX SE 600HOE - 2013
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20a516005382 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
30516005428 RH Rear Upper Side Decal. Black-Black ModelRH Rear Upper Side Decal. Black-Black Model
-
30516005446 RH Rear Upper Side Decal. Magnesium-Magnesium ModelRH Rear Upper Side Decal. Magnesium-Magnesium Model
-
31516005430 RH Front Upper Side Decal. Black-Black ModelRH Front Upper Side Decal. Black-Black Model
-
31516005450 RH Front Upper Side Decal. Magnesium-Magnesium ModelRH Front Upper Side Decal. Magnesium-Magnesium Model
-
37516005438 RH Center Hood Decal. Black-Black ModelRH Center Hood Decal. Black-Black Model
-
37516005452 RH Center Hood Decal. Magnesium-Magnesium ModelRH Center Hood Decal. Magnesium-Magnesium Model
-
38516005440 RH Upper Hood Decal. Black-Black ModelRH Upper Hood Decal. Black-Black Model
-
38516005454 RH Upper Hood Decal. Magnesium-Magnesium ModelRH Upper Hood Decal. Magnesium-Magnesium Model
-
39516005442 RH Lower Hood Decal. Black-Black ModelRH Lower Hood Decal. Black-Black Model
-
39516005456 RH Lower Hood Decal. Magnesium-Magnesium ModelRH Lower Hood Decal. Magnesium-Magnesium Model
-
40516005427 LH Rear Upper Side Decal. Black-Black ModelLH Rear Upper Side Decal. Black-Black Model
-
40516005445 LH Rear Upper Side Decal. Magnesium-Magnesium ModelLH Rear Upper Side Decal. Magnesium-Magnesium Model
-
41516005429 LH Front Upper Side Decal. Black-Black ModelLH Front Upper Side Decal. Black-Black Model
-
41516005449 LH Front Upper Side Decal. Magnesium-Magnesium ModelLH Front Upper Side Decal. Magnesium-Magnesium Model
-
42516004520 Front Side DecalFront Side Decal
-
47516005437 LH Center Hood Decal. Black-Black ModelLH Center Hood Decal. Black-Black Model
-
47516005451 LH Center Hood Decal. Magnesium-Magnesium ModelLH Center Hood Decal. Magnesium-Magnesium Model
-
48516005439 LH Upper Hood Decal. Black-Black ModelLH Upper Hood Decal. Black-Black Model
-
48516005453 LH Upper Hood Decal. Magnesium-Magnesium ModelLH Upper Hood Decal. Magnesium-Magnesium Model
-
49516005441 LH Lower Hood Decal. Black-Black ModelLH Lower Hood Decal. Black-Black Model
-
49516005455 LH Lower Hood Decal. Magnesium-Magnesium ModelLH Lower Hood Decal. Magnesium-Magnesium Model
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516005460 RH Frame Decal. Magnesium-Magnesium ModelRH Frame Decal. Magnesium-Magnesium Model
-
310516005459 LH Frame Decal. Magnesium-Magnesium ModelLH Frame Decal. Magnesium-Magnesium Model
-
320516003784 Decal, REV XR. Black-Black ModelDecal, REV XR. Black-Black Model
-
320516005458 Decal, REV XR. Magnesium-Magnesium ModelDecal, REV XR. Magnesium-Magnesium Model
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516005268 Warning Decal, TrackWarning Decal, Track
-
610516005426 RH Cover Decal. Black-Black ModelRH Cover Decal. Black-Black Model
-
610516005444 RH Cover Decal. Magnesium-Magnesium ModelRH Cover Decal. Magnesium-Magnesium Model
-
620516005425 LH Cover Decal. Black-Black ModelLH Cover Decal. Black-Black Model
-
620516005443 LH Cover Decal. Magnesium-Magnesium ModelLH Cover Decal. Magnesium-Magnesium Model
-
660516005154 Frame Top DecalFrame Top Decal
-
665516005168 LH Frame Top DecalLH Frame Top Decal
-
670516005169 RH Frame Top DecalRH Frame Top Decal
-
800a516005231 Warning Decal, InjectorsWarning Decal, Injectors
