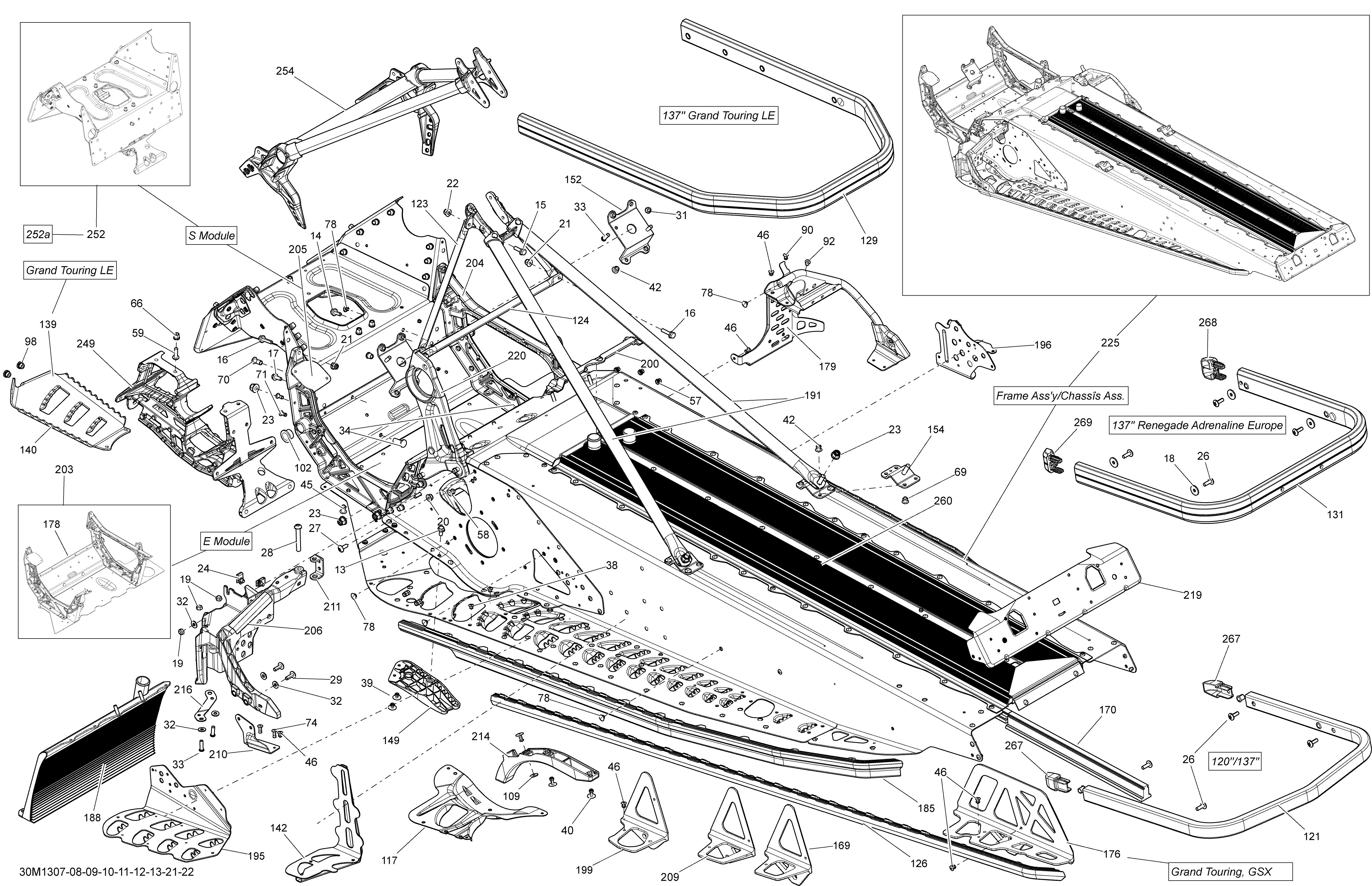

09- Frame для BRP Ski-Doo GSX SE 600HOE - 2013
-
№АртикулНазвание
-
13207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18224061201 Flat WasherFlat Washer
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
27250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
28250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
29250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
32250200039 Flat WasherFlat Washer
-
33250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
34250300038 Clinch StudClinch Stud
-
38293150102 Rivet 3/16Rivet 3/16
-
39293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
42293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
45293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
46293150144 Stavex RivetStavex Rivet
-
57293150146 Henrob RivetHenrob Rivet
-
58293150147 Hemlock RivetHemlock Rivet
-
59207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
66233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
70293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
71293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
78293730053 DartDart
-
90390909100 Avex RivetAvex Rivet
-
92390909200 Avex RivetAvex Rivet
-
102505073317 Leg CushionLeg Cushion
-
109517124300 WasherWasher
-
117518324874 RH ReinforcementRH Reinforcement
-
117518324875 LH ReinforcementLH Reinforcement
-
121518325481 Rear BumperRear Bumper
-
123518325114 Upper Column SupportUpper Column Support
-
124518325115 Center Column SupportCenter Column Support
-
126518325377 RH RollerRH Roller
-
126518326386 LH Roller. GSX SELH Roller. GSX SE
-
149518325782 RH DeflectorRH Deflector
-
149518325783 LH DeflectorLH Deflector
-
152518325943 MAG Engine SupportMAG Engine Support
-
154518325973 RH Rear BaseRH Rear Base
-
154518325974 LH Rear BaseLH Rear Base
-
169518326050 RH Slide Bracket. GSX SERH Slide Bracket. GSX SE
-
169518326051 LH Slide Bracket. GSX SELH Slide Bracket. GSX SE
-
170860200267 Tunnel Protector KitTunnel Protector Kit
-
176518326136 RH Slide Bracket. Grand Touring, GSXRH Slide Bracket. Grand Touring, GSX
-
176518326137 LH Slide Bracket. Grand Touring, GSXLH Slide Bracket. Grand Touring, GSX
-
178518326198 Front MemberFront Member
-
179518326216 RH StirupRH Stirup
-
188518326485 Front RadiatorFront Radiator
-
191518326559 Rear MemberRear Member
-
195860200522 Aluminum Reinforcement Frame KitAluminum Reinforcement Frame Kit
-
200518326656 SealSeal
-
203518327567 Front E ModuleFront E Module
-
204518326795 RH MemberRH Member
-
205518326796 LH MemberLH Member
-
206518326239 LH Stirup. GSX SELH Stirup. GSX SE
-
210518326960 SupportSupport
-
211518326961 U-AttachU-Attach
-
214518326973 Front ProtectorFront Protector
-
216518326986 AttachAttach
-
219518327105 Rear CapRear Cap
-
220518327133 Driven Pulley SupportDriven Pulley Support
-
225415129765 Frame GSX SE, BlackFrame GSX SE, Black
-
249518327475 Front Suspension SupportFront Suspension Support
-
252518327495 Cross Member S ModuleCross Member S Module
-
254518326970 Front MemberFront Member
-
260518327588 Rear Radiator 137''. GSX SERear Radiator 137''. GSX SE
-
267520000840 CapCap
