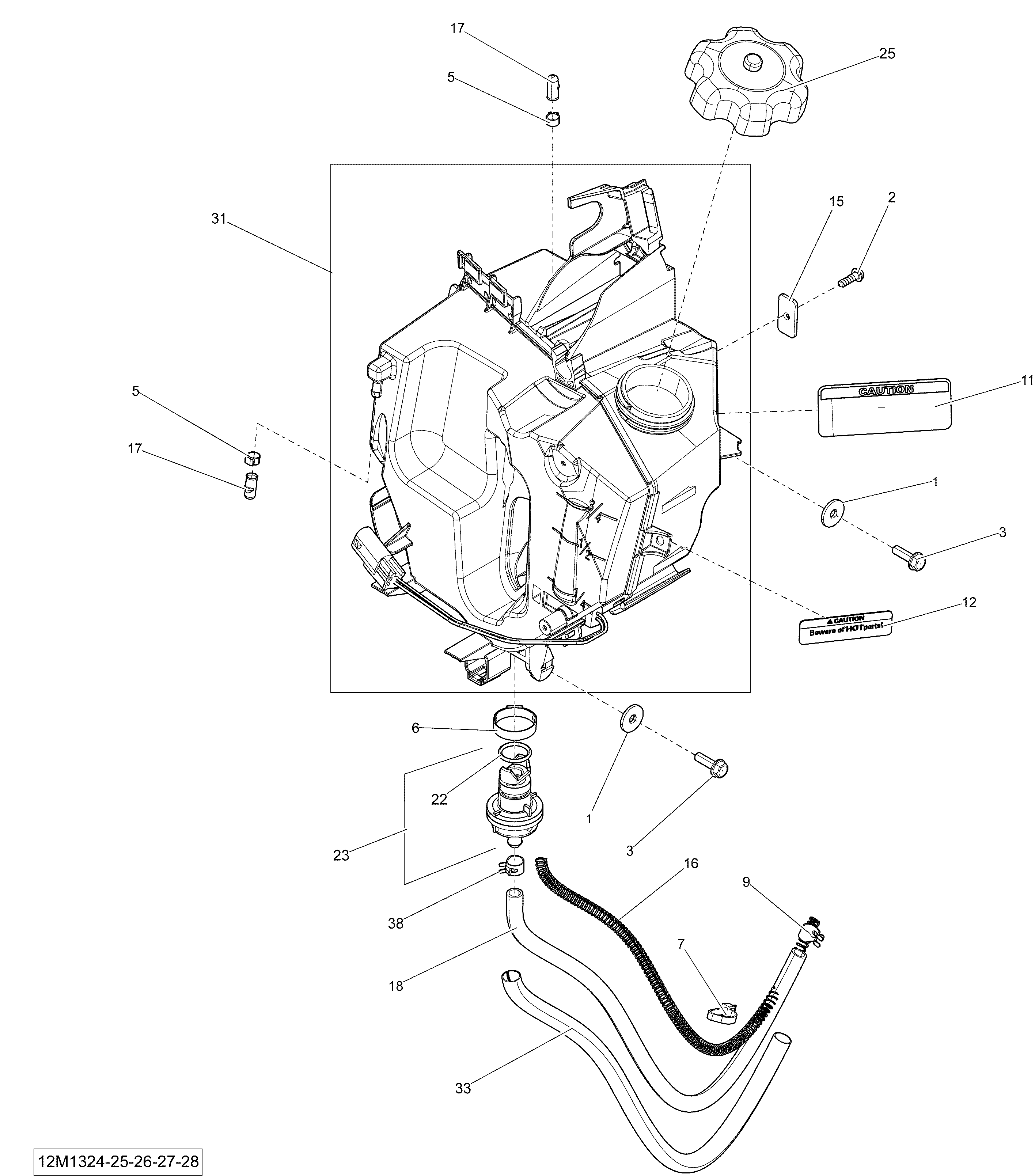

02- Oil System для BRP Ski-Doo MXZ SPORT 550F XP - 2013
-
№АртикулНазвание
-
1224061201 Flat WasherFlat Washer
-
2241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
3250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
5293650043 ClipClip
-
6293650099 Oetiker Gear ClampOetiker Gear Clamp
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9414420700 Spring ClipSpring Clip
-
11516005651 Notice Decal, OilNotice Decal, Oil
-
15519000179 BracketBracket
-
16519000196 SpringSpring
-
17519000216 CapCap
-
18415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
22519000241 O-RingO-Ring
-
23519000242 Oil FilterOil Filter
-
25519000273 Cap Ass'yCap Ass'y
-
31519000298 Oil Tank Ass'yOil Tank Ass'y
-
33415079900 Tubing 10 mmTubing 10 mm
-
38414415200 Universal Spring ClampUniversal Spring Clamp
