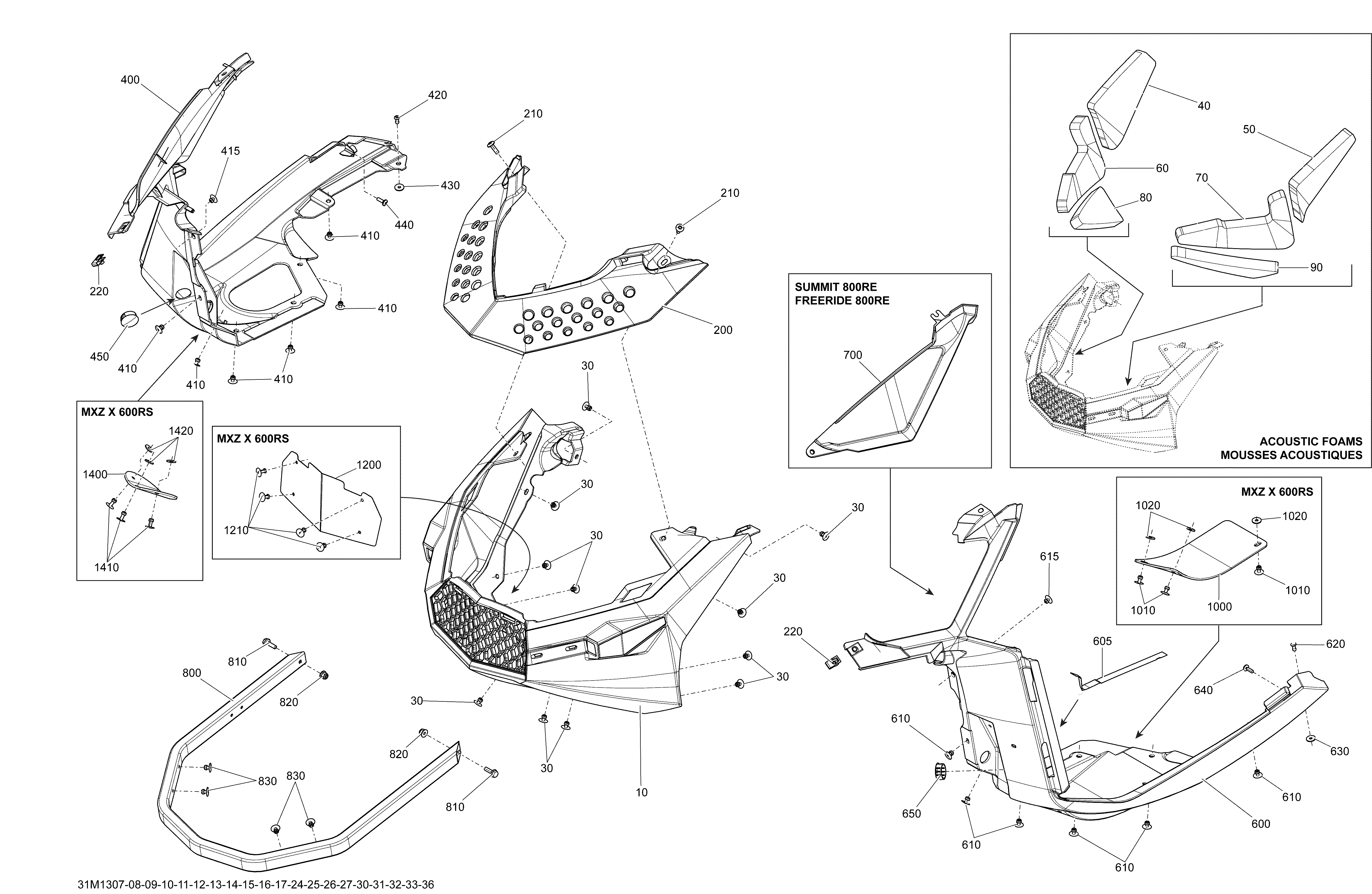

09- Bottom Pan для BRP Ski-Doo MXZ SPORT 550F XP - 2013
-
№АртикулНазвание
-
10502006971 Black Front Bottom PanBlack Front Bottom Pan
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007210 RH Foam UpperRH Foam Upper
-
50502007211 LH Foam UpperLH Foam Upper
-
60502007212 RH Middle FoamRH Middle Foam
-
70502007213 LH Middle FoamLH Middle Foam
-
80502007214 RH Lower FoamRH Lower Foam
-
90502007215 LH Lower FoamLH Lower Foam
-
200502007068 Bottom Pan CapBottom Pan Cap
-
210250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
220250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
400502006914 RH Bottom PanRH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
415293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
420390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
430517124300 WasherWasher
-
440250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
450414916600 Nylon CapNylon Cap
-
600502007051 LH Bottom PanLH Bottom Pan
-
605293250087 Gasket, NeopreneGasket, Neoprene
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
615293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
620390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
630517124300 WasherWasher
-
640250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
650414916600 Nylon CapNylon Cap
-
800502006944 Front BumperFront Bumper
-
800502007116 Front BumperFront Bumper
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
