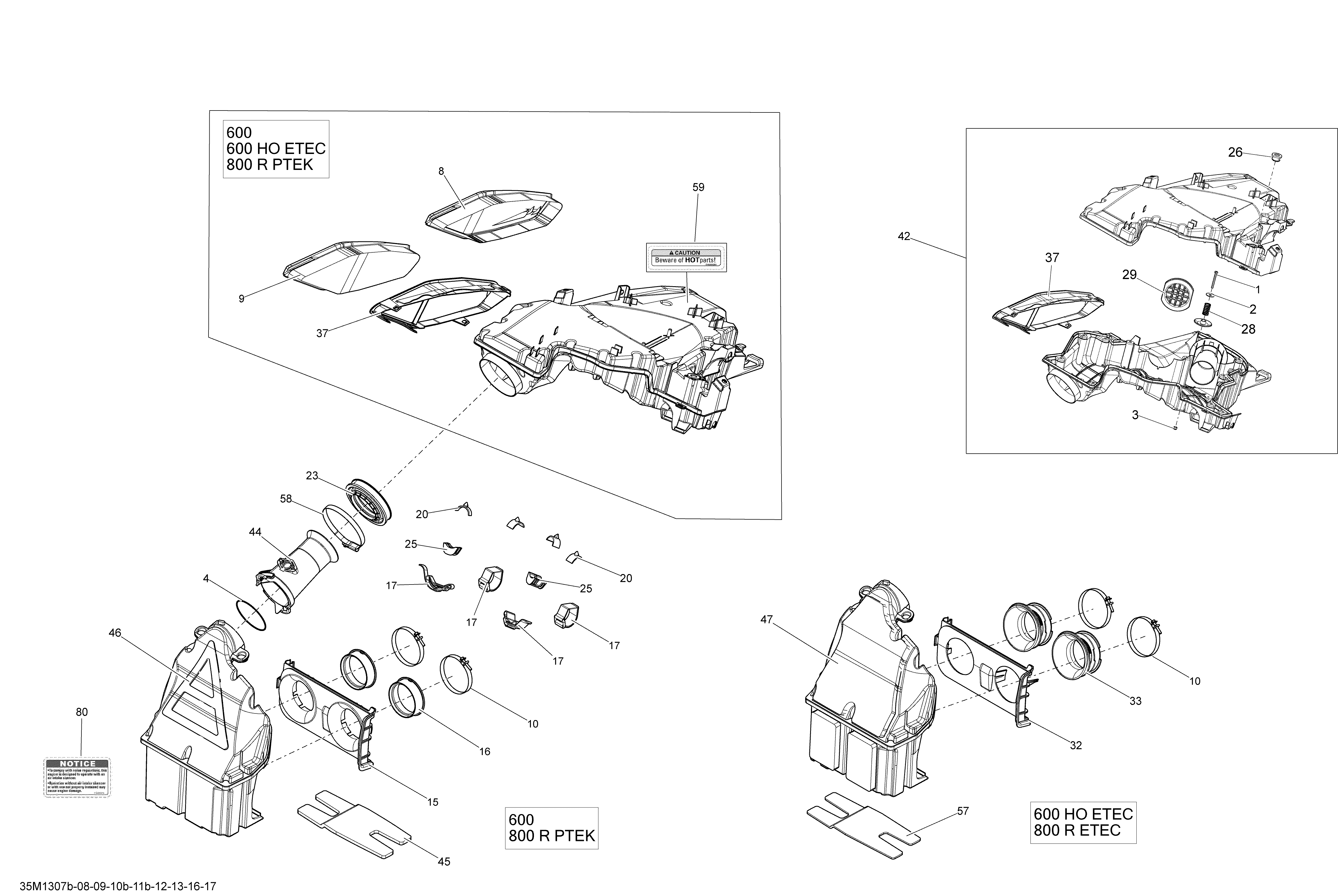

02- Air Intake System 600HOETEC для BRP Ski-Doo MXZ XRS 600HOE - 2013
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40. 600HOE Except SUMMITSocket Head Screw M4 X 40. 600HOE Except SUMMIT
-
2224060201 Flat Washer. 600HOE Except SUMMITFlat Washer. 600HOE Except SUMMIT
-
3232541414 Elastic Stop Nut M4. 600HOE Except SUMMITElastic Stop Nut M4. 600HOE Except SUMMIT
-
4293300115 O-RingO-Ring
-
9508000568 Air FilterAir Filter
-
10508000346 Gemi ClampGemi Clamp
-
15508000500 Plate Adapter. 600, 800RPlate Adapter. 600, 800R
-
16508000501 Air Intake Adapter. 600, 800RAir Intake Adapter. 600, 800R
-
17508000532 Velcro Strip. Except 800REVelcro Strip. Except 800RE
-
20508000537 Stopper. Except 800REStopper. Except 800RE
-
23508000567 BootBoot
-
25508000572 Bumper. Except 800REBumper. Except 800RE
-
26508000574 Grommet. 600HOE Except SUMMITGrommet. 600HOE Except SUMMIT
-
28508000576 Spring. 600HOE Except SUMMITSpring. 600HOE Except SUMMIT
-
29508000590 Cap. 600HOE Except SUMMITCap. 600HOE Except SUMMIT
-
32508000613 Plate Adapter. 600HOE, 800REPlate Adapter. 600HOE, 800RE
-
33508000614 Air Intake Adapter. 600HOE, 800REAir Intake Adapter. 600HOE, 800RE
-
37508000568 Air Filter. 600HOE Except SUMMITAir Filter. 600HOE Except SUMMIT
-
42508000625 Secondary Chamber Ass'y. 600HOE Except SUMMITSecondary Chamber Ass'y. 600HOE Except SUMMIT
-
44508000662 Flute. Except 600Flute. Except 600
-
45508000674 Insulated FoamInsulated Foam
-
46508000660 Primary Chamber Ass'y. 800REPrimary Chamber Ass'y. 800RE
-
47508000681 Primary Chamber Ass'y. 600HOEPrimary Chamber Ass'y. 600HOE
-
57508000739 Insulated Foam. ETECInsulated Foam. ETEC
-
58514052924 Norma ClampNorma Clamp
-
59516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
80516005876 Notice Decal, Air Intake Silencer. 600HOENotice Decal, Air Intake Silencer. 600HOE
