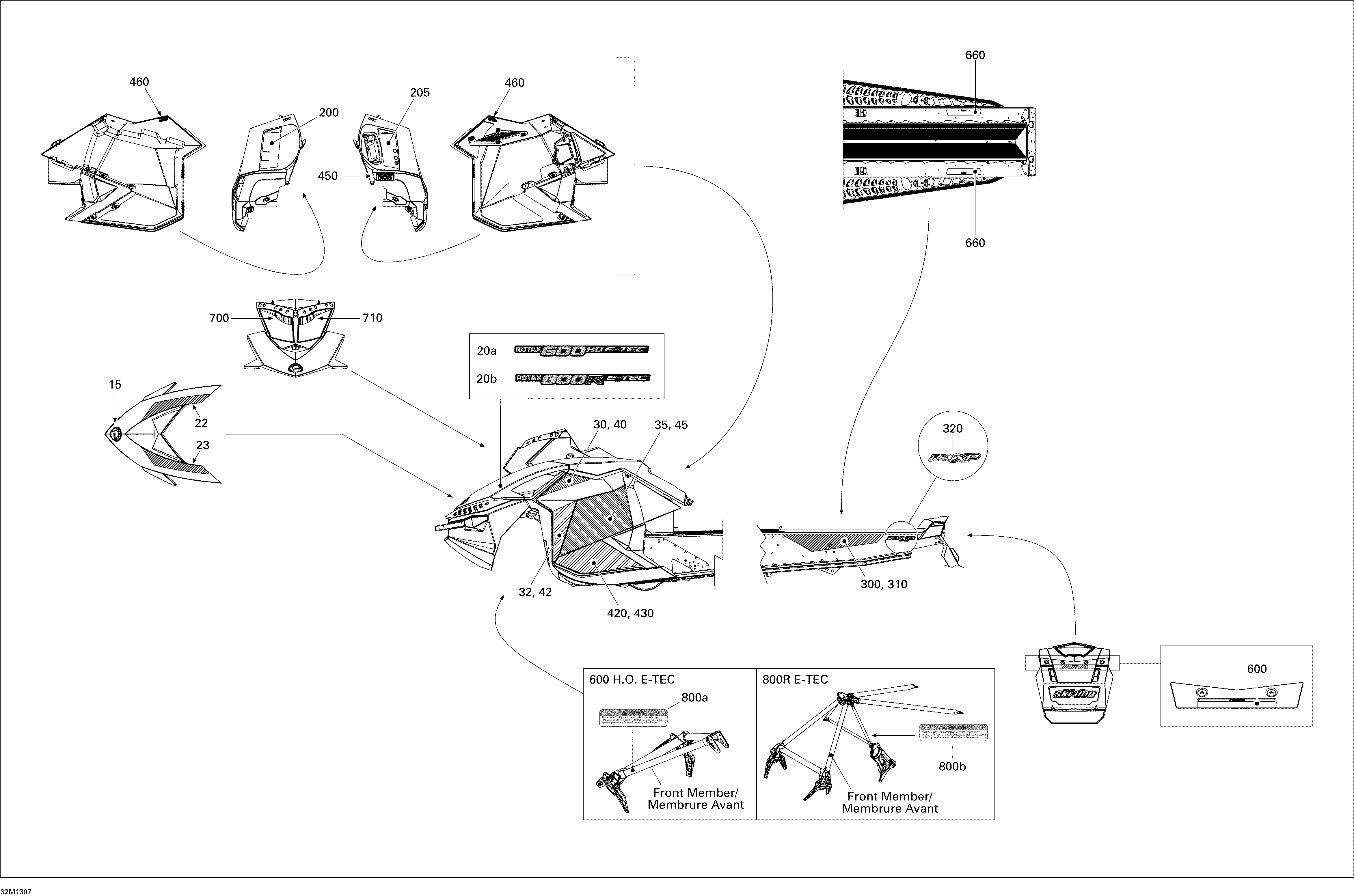

09- Decals 600HOETEC для BRP Ski-Doo MXZ XRS 600HOE - 2013
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20a516005233 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
22516005238 RH Hood DecalRH Hood Decal
-
23516005237 LH Hood DecalLH Hood Decal
-
30516005242 RH Upper Side DecalRH Upper Side Decal
-
32516005244 RH Front Side DecalRH Front Side Decal
-
35516005248 RH Side DecalRH Side Decal
-
40516005241 LH Upper Side DecalLH Upper Side Decal
-
42516005243 LH Front Side DecalLH Front Side Decal
-
45516005247 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516005250 RH Frame DecalRH Frame Decal
-
310516005249 LH Frame DecalLH Frame Decal
-
320516003989 Frame Decal, REV XPFrame Decal, REV XP
-
420516005252 RH Lower DecalRH Lower Decal
-
430516005251 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516005268 Warning Decal, TrackWarning Decal, Track
-
660516005154 Frame Top DecalFrame Top Decal
-
700516004402 RH Headlight DecalRH Headlight Decal
-
710516004401 LH Headlight DecalLH Headlight Decal
-
800a516005231 Warning Decal, InjectorsWarning Decal, Injectors
