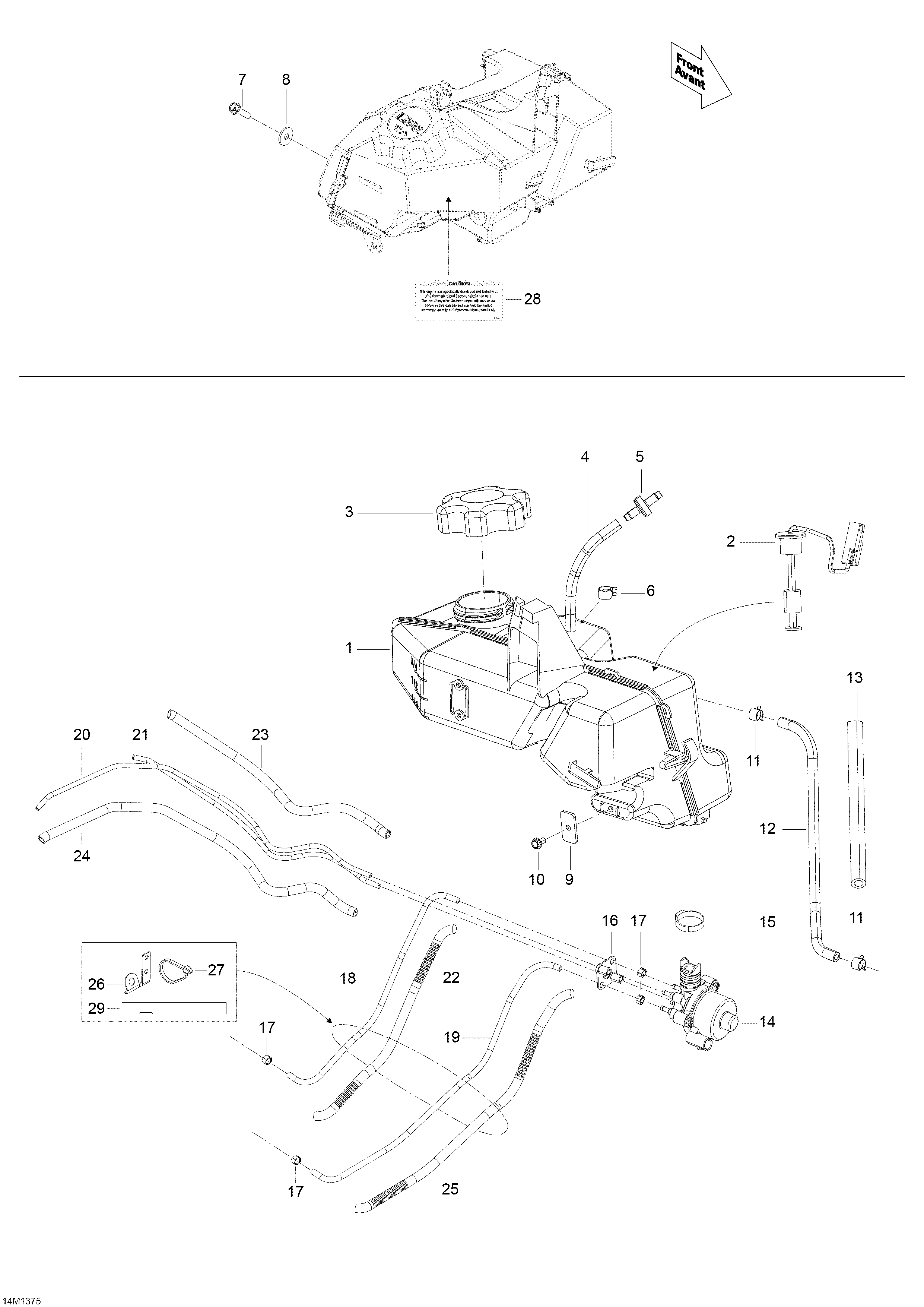

02- Oil System для BRP Ski-Doo Skandic WT 600HOETEC XU - 2013
-
№АртикулНазвание
-
1519000251 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000194 CapCap
-
4415080200 Hose, PolyurethaneHose, Polyurethane
-
5275500398 Check ValveCheck Valve
-
6414554800 Spring ClampSpring Clamp
-
7250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
8224061201 Flat WasherFlat Washer
-
9519000179 BracketBracket
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11414554800 Spring ClampSpring Clamp
-
12415080200 HoseHose
-
13415079900 Tubing 10 mmTubing 10 mm
-
14519000281 Oil PumpOil Pump
-
15293650099 Oetiker Gear ClampOetiker Gear Clamp
-
16519000271 BracketBracket
-
17293650100 Oetiker ClampOetiker Clamp
-
18519000182 Hose 3.5 mmHose 3.5 mm
-
19519000182 Hose 3.5 mmHose 3.5 mm
-
20519000184 Hose 2.5 mmHose 2.5 mm
-
21519000184 Hose 2.5 mmHose 2.5 mm
-
22515175442 Tubing 6 mmTubing 6 mm
-
23515175442 Tubing 6 mmTubing 6 mm
-
24515175442 Tubing 6 mmTubing 6 mm
-
25515175442 Tubing 6 mmTubing 6 mm
-
26519000245 BracketBracket
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
28516005528 Notice Decal, OilNotice Decal, Oil
-
29516004648 Protection DecalProtection Decal
