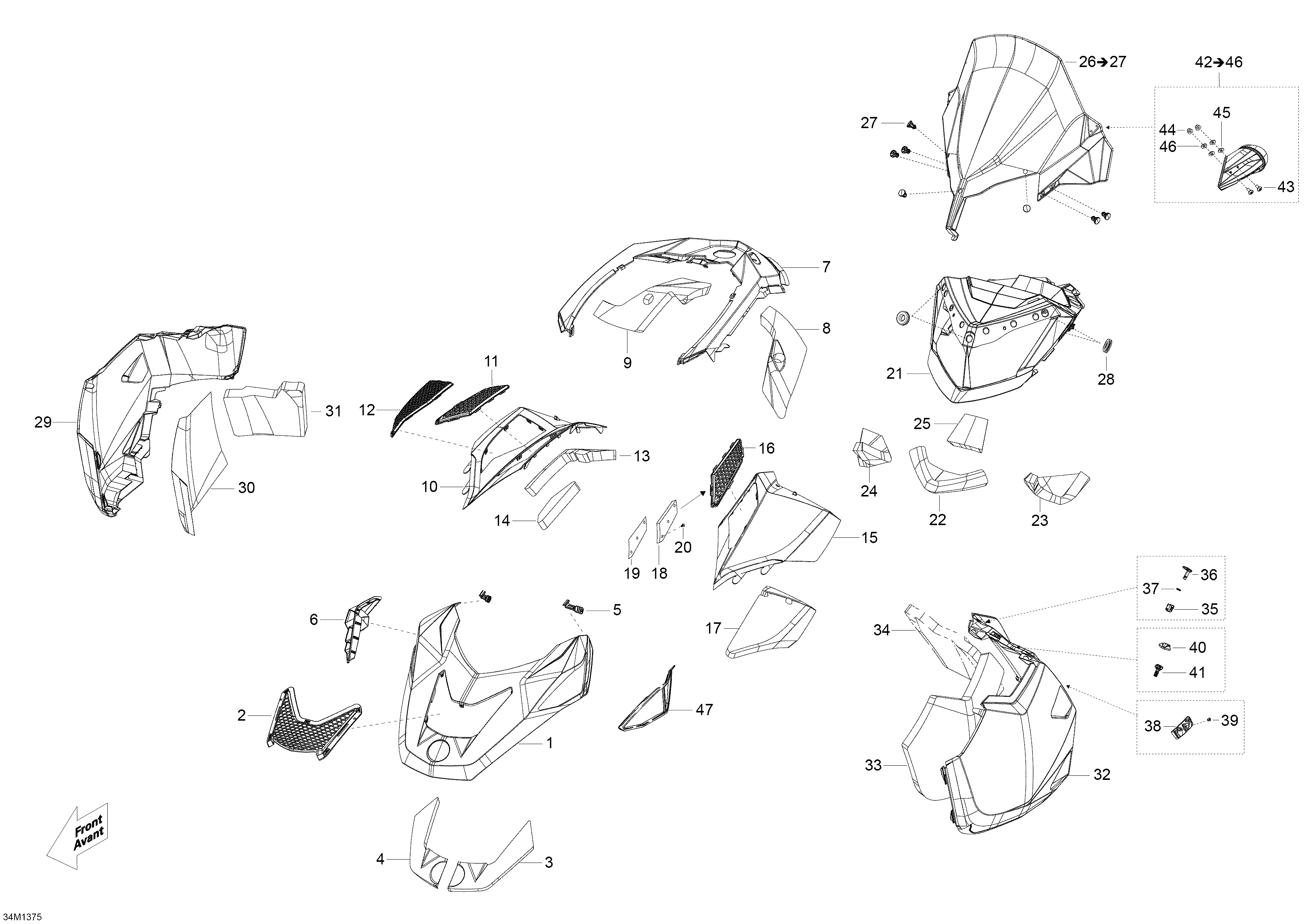

09- Hood для BRP Ski-Doo Skandic WT 600HOETEC XU - 2013
-
№АртикулНазвание
-
1517304816 HoodHood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304155 Scoop GrillScoop Grill
-
7517304820 ConsoleConsole
-
8517304317 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304822 Side Access Panel-RHSide Access Panel-RH
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517304833 Side Access Panel-LHSide Access Panel-LH
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517305311 InsulatorInsulator
-
19502007312 Grill plateGrill plate
-
20414644300 DartDart
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860200555 Windshield Ass'y. Includes 26 To 27Windshield Ass'y. Includes 26 To 27
-
27517304744 ButtonButton
-
28517303756 GrommetGrommet
-
29517304328 Side Panel-RhSide Panel-Rh
-
30517304709 Foam RightFoam Right
-
31517304310 RH Rear FoamRH Rear Foam
-
32517304329 Side Panel-LHSide Panel-LH
-
33517304707 Foam LHFoam LH
-
34517304309 LH Rear FoamLH Rear Foam
-
35517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
36517304296 Quarter-Turn HandleQuarter-Turn Handle
-
37517304538 Locking PlateLocking Plate
-
38517304497 Side Panel SupportSide Panel Support
-
39M36005 RivetRivet
-
40860200239 Black Latch KitBlack Latch Kit
-
41517304573 Latch-PanelLatch-Panel
-
42517304628 Mirror RH/LH. Includes 42 To 46Mirror RH/LH. Includes 42 To 46
-
43250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
44232361493 Domed Nut M6Domed Nut M6
-
45250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
46M20117 WasherWasher
-
47508000609 Air FilterAir Filter
