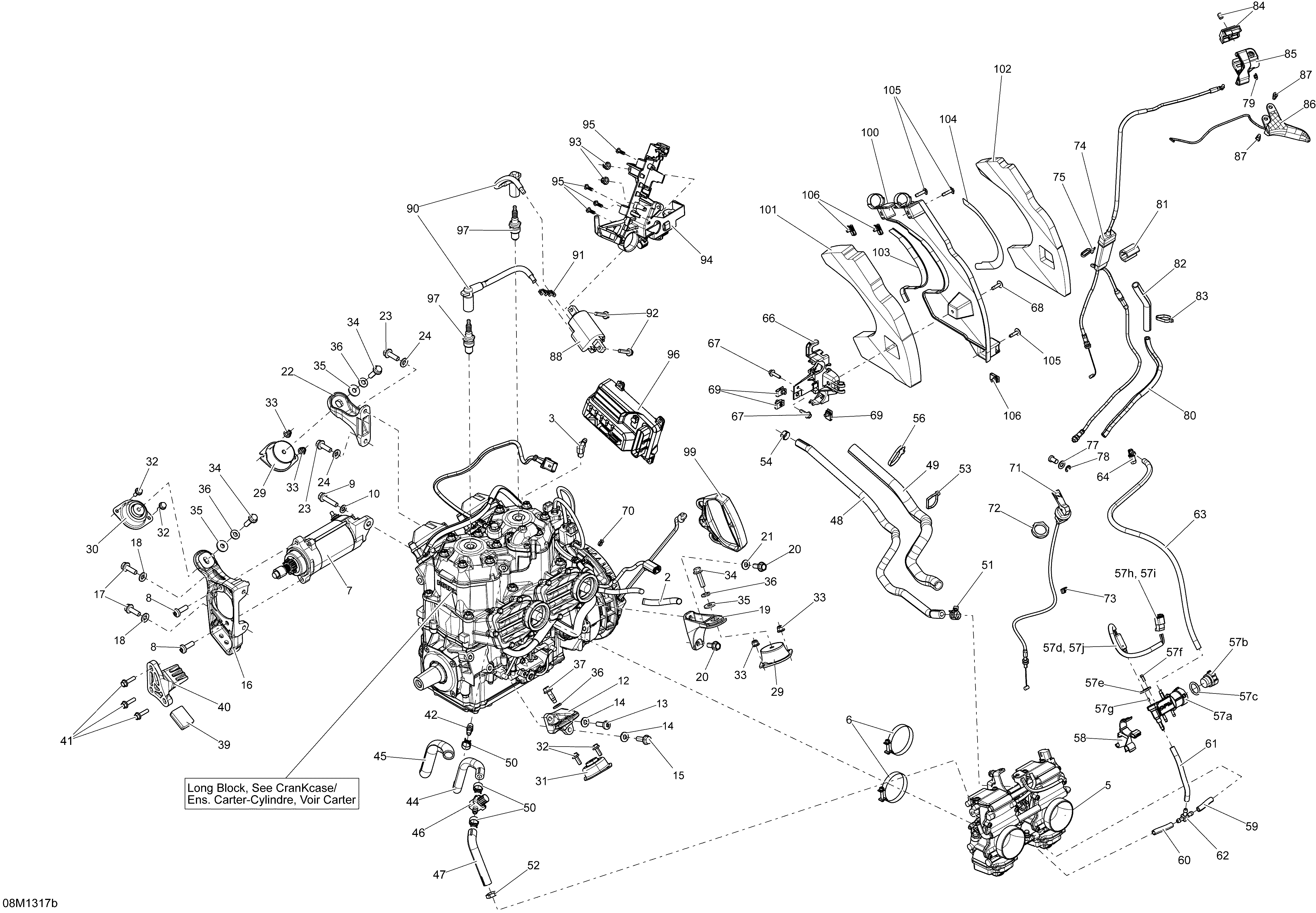

01- Engine And Engine Support 800RPTEK для BRP Ski-Doo SUMMIT SPORT 800R PTEK XP - 2013
-
№АртикулНазвание
-
2415079900 Tubing 10 mmTubing 10 mm
-
3293700045 Elbow Fitting 90°Elbow Fitting 90°
-
5403138805 Carburator Kit, TM40-B397Carburator Kit, TM40-B397
-
6512059835 Gemi ClampGemi Clamp
-
12512060478 Rear Support, PTORear Support, PTO
-
13250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14250200146 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
16512060714 Front Support, PTOFront Support, PTO
-
17207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
18250200146 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support, MAGRear Support, MAG
-
20207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
21250200146 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support, MAGFront Support, MAG
-
23207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
24250200146 Conical Spring Washer M8Conical Spring Washer M8
-
29512060729 Rubber MountRubber Mount
-
30512060387 Rubber MountRubber Mount
-
31512060448 Rubber MountRubber Mount
-
32207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
35503183200 Washer, YellowWasher, Yellow
-
36250200146 Conical Spring Washer M8Conical Spring Washer M8
-
37250000570 Hex. Screw M8Hex. Screw M8
-
39512060766 StopperStopper
-
40512060576 Stopper SupportStopper Support
-
41207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
42512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
44512060357 Hose Formed Engine OutletHose Formed Engine Outlet
-
45415080000 Tubing 16 mmTubing 16 mm
-
46512059324 Valve 5/16''Valve 5/16''
-
47512060353 Hose FormedHose Formed
-
48512060347 Hose FormedHose Formed
-
49415080000 Tubing 16 mmTubing 16 mm
-
50414655700 Spring ClampSpring Clamp
-
51293650214 Norma Spring ClampNorma Spring Clamp
-
52293650125 Oetiker ClampOetiker Clamp
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
54293650046 Oetiker ClampOetiker Clamp
-
56414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
57a512060002 Pressure Manifold Ass'y. Includes 57a to 57jPressure Manifold Ass'y. Includes 57a to 57j
-
57b270600009 CapCap
-
57c293300042 O-RingO-Ring
-
57d515175701 Solenoid ValveSolenoid Valve
-
57e415061600 Solenoid LockSolenoid Lock
-
57f241140060 Screw K40 X 10Screw K40 X 10
-
57g404161825 Starter JetStarter Jet
-
57h515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
57i515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
57j515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
58512060229 DPM SupportDPM Support
-
59415080200 Hose, PolyurethaneHose, Polyurethane
-
60415080200 Hose, PolyurethaneHose, Polyurethane
-
61415080200 Hose, PolyurethaneHose, Polyurethane
-
62414729300 T-FittingT-Fitting
-
63415080200 Hose, PolyurethaneHose, Polyurethane
-
64414580700 Male ConnectorMale Connector
-
66512060298 Solenoid SupportSolenoid Support
-
67207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
68250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
69250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
70293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
71512060672 Choke CableChoke Cable
-
72512060671 Plastic NutPlastic Nut
-
73414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
74512060677 Throttle CableThrottle Cable
-
75414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
78414753500 CirclipCirclip
-
79414274500 CirclipCirclip
-
80515175442 Tubing 6 mmTubing 6 mm
-
81512060313 ProtectorProtector
-
82415079900 Tubing 10 mmTubing 10 mm
-
83414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
84512060859 Upper HousingUpper Housing
-
85512060860 Lower HousingLower Housing
-
86512060616 Throttle HandleThrottle Handle
-
87732601143 Flanged ScrewFlanged Screw
-
88512059968 Ignition CoilIgnition Coil
-
90512060291 CableCable
-
91410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
92207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
93233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
94512060745 Coils SupportCoils Support
-
95241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
96512060684 Calibrated Module, 800R PowerT.E.K.Calibrated Module, 800R PowerT.E.K.
-
97415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
99512060136 Starter GripStarter Grip
-
100512060338 Noise ShieldNoise Shield
-
101512060341 Inner Noise FoamInner Noise Foam
-
102512060342 Outer Noise FoamOuter Noise Foam
-
103512060574 Heat ShieldHeat Shield
-
104512060575 Heat ShieldHeat Shield
-
105250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
106250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
