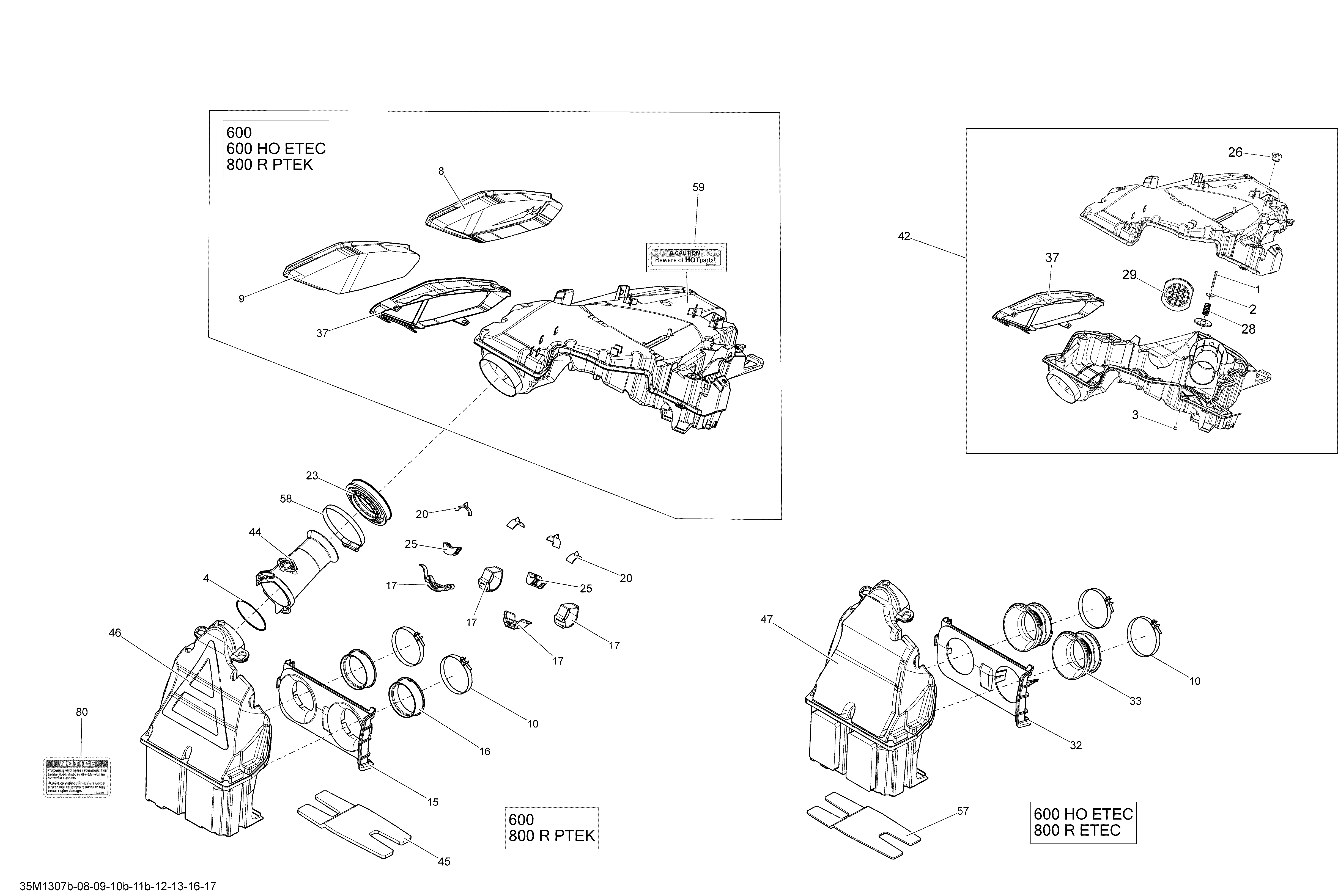

02- Air Intake System для BRP Ski-Doo SUMMIT SPORT 800R PTEK XP - 2013
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40. 800R SUMMITSocket Head Screw M4 X 40. 800R SUMMIT
-
1205444086 Socket Head Screw M4 X 40. 600 SUMMITSocket Head Screw M4 X 40. 600 SUMMIT
-
2224060201 Flat Washer. 800R SUMMITFlat Washer. 800R SUMMIT
-
2224060201 Flat Washer. 600 SUMMITFlat Washer. 600 SUMMIT
-
3232541414 Elastic Stop Nut M4. 800R SUMMITElastic Stop Nut M4. 800R SUMMIT
-
3232541414 Elastic Stop Nut M4. 600 SUMMITElastic Stop Nut M4. 600 SUMMIT
-
4293300115 O-RingO-Ring
-
8415129376 Filter Cover. 800R SUMMITFilter Cover. 800R SUMMIT
-
8415129376 Filter Cover. 600 SUMMITFilter Cover. 600 SUMMIT
-
9415129377 Foam Filter. 800R SUMMITFoam Filter. 800R SUMMIT
-
9415129377 Foam Filter. 600 SUMMITFoam Filter. 600 SUMMIT
-
10508000346 Gemi ClampGemi Clamp
-
15508000500 Plate Adapter. 600, 800RPlate Adapter. 600, 800R
-
16508000501 Air Intake Adapter. 600, 800RAir Intake Adapter. 600, 800R
-
17508000532 Velcro Strip. Except 800REVelcro Strip. Except 800RE
-
20508000537 Stopper. Except 800REStopper. Except 800RE
-
23508000567 BootBoot
-
25508000572 Bumper. Except 800REBumper. Except 800RE
-
26508000574 Grommet. 800R SUMMITGrommet. 800R SUMMIT
-
26508000574 Grommet. 600 SUMMITGrommet. 600 SUMMIT
-
28508000576 Spring. 800R SUMMITSpring. 800R SUMMIT
-
28508000576 Spring. 600 SUMMITSpring. 600 SUMMIT
-
37508000626 Air Filter. 800R SUMMITAir Filter. 800R SUMMIT
-
37508000626 Air Filter. 600 SUMMITAir Filter. 600 SUMMIT
-
42508000656 Secondary Chamber Ass'y. 800R SUMMITSecondary Chamber Ass'y. 800R SUMMIT
-
42508000656 Secondary Chamber Ass'y. 600 SUMMITSecondary Chamber Ass'y. 600 SUMMIT
-
44508000661 Flute. 600Flute. 600
-
44508000662 Flute. Except 600Flute. Except 600
-
45508000674 Insulated Foam. CARBInsulated Foam. CARB
-
46508000680 Primary Chamber Ass'y. 600, 800RPrimary Chamber Ass'y. 600, 800R
-
57508000739 Insulated Foam. ETECInsulated Foam. ETEC
-
58514052924 Norma ClampNorma Clamp
-
59516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
80516005876 Notice Decal, Air Intake Silencer. 600, 800RNotice Decal, Air Intake Silencer. 600, 800R
