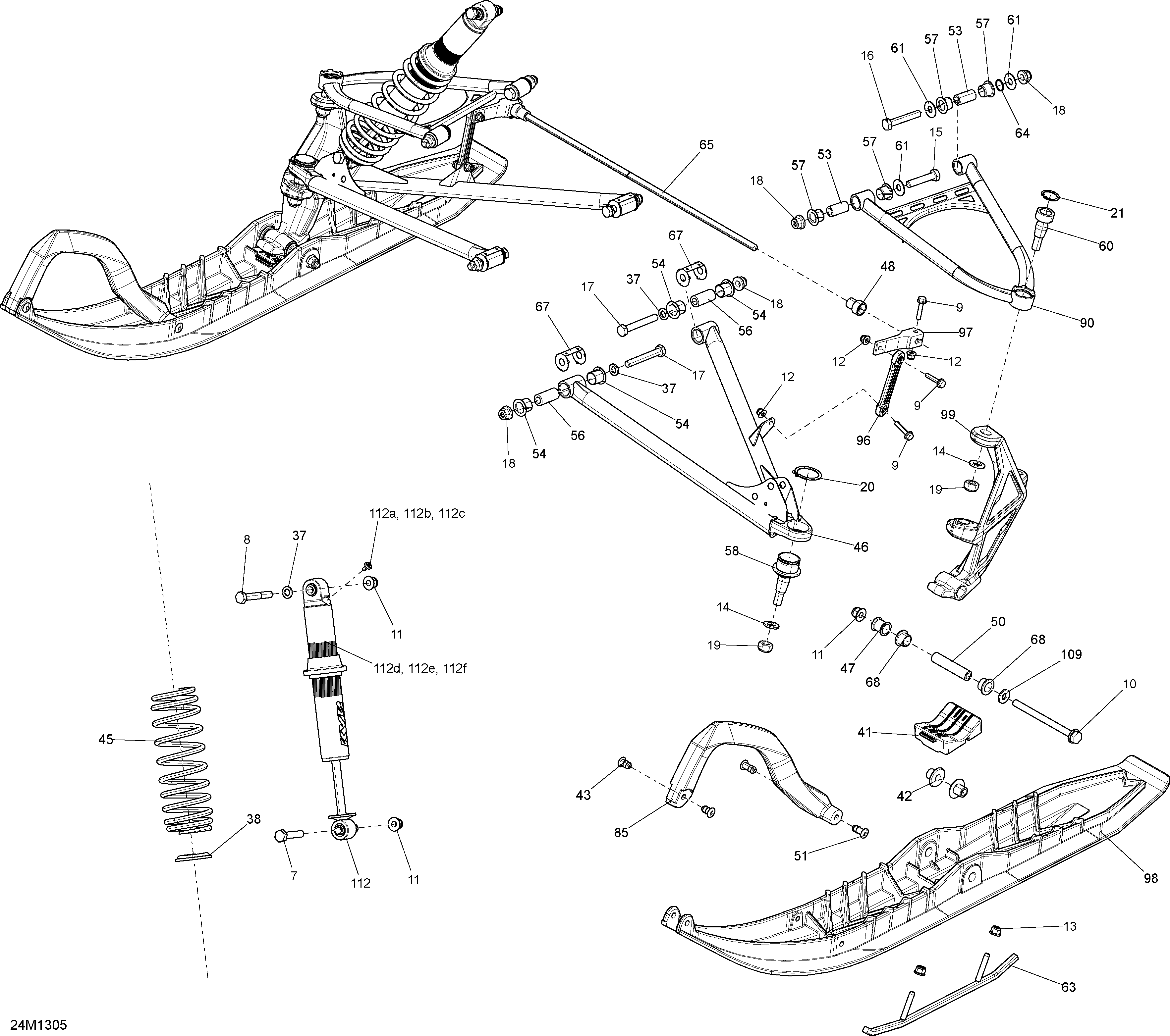

07- Front Suspension And Ski для BRP Ski-Doo SUMMIT X 800RE XM - 2013
-
№АртикулНазвание
-
7207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
8207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
9207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
10230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
11233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
12233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503192491 WasherWasher
-
15250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
16250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
17250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
18250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
19232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
20293370035 CirclipCirclip
-
21293370070 CirclipCirclip
-
37503189564 WasherWasher
-
38503192608 Spring Stopper. SUM XSpring Stopper. SUM X
-
41505072594 Ski StopperSki Stopper
-
42505071781 Cushion. XMCushion. XM
-
45505072726 Painted Spring. SUM XPainted Spring. SUM X
-
46505073040 RH Lower ArmRH Lower Arm
-
46505073039 LH Lower ArmLH Lower Arm
-
47505071999 SpacerSpacer
-
48505072786 BushingBushing
-
50506133300 SpacerSpacer
-
51505072133 Retainer. XMRetainer. XM
-
53505072143 BushingBushing
-
54505072208 BushingBushing
-
56505072214 Bushing. SUM XBushing. SUM X
-
57505072250 BushingBushing
-
58505072682 Lower Ball JointLower Ball Joint
-
60505072913 Upper Ball JointUpper Ball Joint
-
61505072392 WasherWasher
-
63860200141 Carbide Runner Kit. XMCarbide Runner Kit. XM
-
64505072448 O-RingO-Ring
-
65505072785 StabilisatorStabilisator
-
67505072634 Wear PlateWear Plate
-
68505072690 Leg CushionLeg Cushion
-
85505072976 Handle, Black. XMHandle, Black. XM
-
90505073013 LH Upper ArmLH Upper Arm
-
90505073014 RH Upper ArmRH Upper Arm
-
96505073172 Double Ball Joint LinkDouble Ball Joint Link
-
97505073176 Stabilisator LeverStabilisator Lever
-
98505073281 DS Ski 2, Black. XMDS Ski 2, Black. XM
-
99505073238 LH Ski Leg, BLACK. XMLH Ski Leg, BLACK. XM
-
99505073239 RH Ski Leg, BLACK. XMRH Ski Leg, BLACK. XM
-
109503192496 WasherWasher
-
112505073118 Front Shock HPG. SUM XFront Shock HPG. SUM X
-
112a505070400 O-Ring. SUM XO-Ring. SUM X
-
112b505070399 Screw. SUM XScrew. SUM X
-
112c505070398 Air Valve. SUM XAir Valve. SUM X
-
112d503189308 Piston Ring. SUM XPiston Ring. SUM X
-
112e414888312 O-Ring. SUM XO-Ring. SUM X
