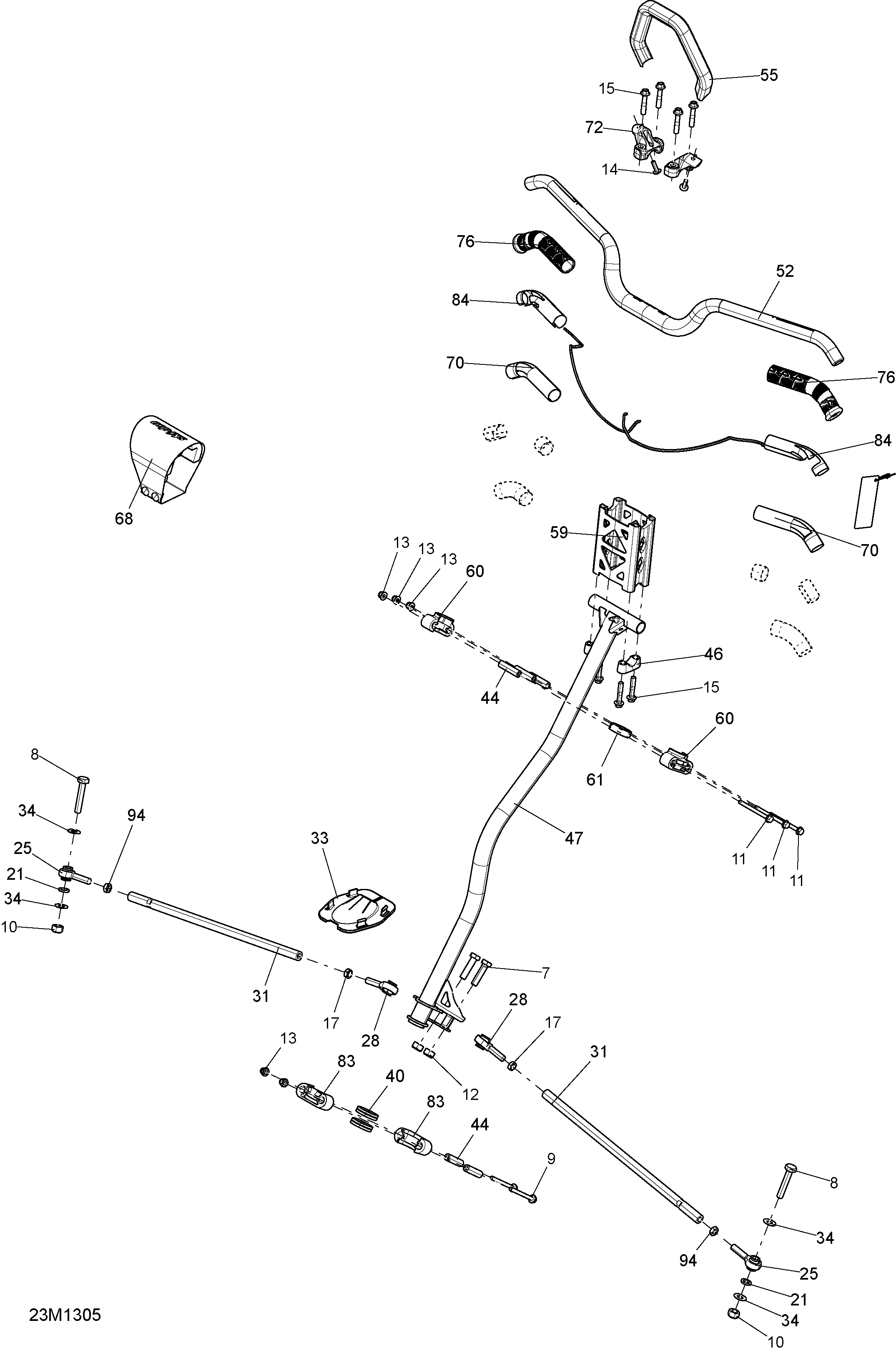

07- Steering для BRP Ski-Doo SUMMIT X 800RE XM - 2013
-
№АртикулНазвание
-
7207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
8207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
9207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
10250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
11207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
12232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
13233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14250000128 Torx Truss Screw M6 X 20. SUM XTorx Truss Screw M6 X 20. SUM X
-
15250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
17250100016 LH Hex. Jam Nut M10. SUMMITLH Hex. Jam Nut M10. SUMMIT
-
21503192496 Washer. SUMMITWasher. SUMMIT
-
25506152019 RH Thread Ball Joint. SUMMITRH Thread Ball Joint. SUMMIT
-
28506152081 LH Thread Ball Joint. SUMMITLH Thread Ball Joint. SUMMIT
-
31506152482 Tie-Rod. SUMMITTie-Rod. SUMMIT
-
33506152163 PlatePlate
-
34506152582 WasherWasher
-
40506152518 Lower Vibration RingLower Vibration Ring
-
44506152297 Housing BushingHousing Bushing
-
46506152395 Steering SupportSteering Support
-
47506152584 Main Tube (Painted)Main Tube (Painted)
-
52506152538 Handle Bar. SUM XHandle Bar. SUM X
-
55506152460 Moulding Strap. SUMMITMoulding Strap. SUMMIT
-
59506152651 Handlebar Extension (Painted). SUM XHandlebar Extension (Painted). SUM X
-
60506152508 Upper Half-HousingUpper Half-Housing
-
61506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
68506152557 Steering Pad. SUM XSteering Pad. SUM X
-
70506152548 InsulantInsulant
-
72506152556 RH Steering Support. SUM XRH Steering Support. SUM X
-
72506152555 LH Steering Support. SUM XLH Steering Support. SUM X
-
76506152560 Grip 148mmGrip 148mm
-
83506152588 Lower Half-Housing. SUMMITLower Half-Housing. SUMMIT
-
84506152606 Heating Element 28 WATTHeating Element 28 WATT
-
94732610010 RH Hex. Jam Nut M10. SUMMITRH Hex. Jam Nut M10. SUMMIT
