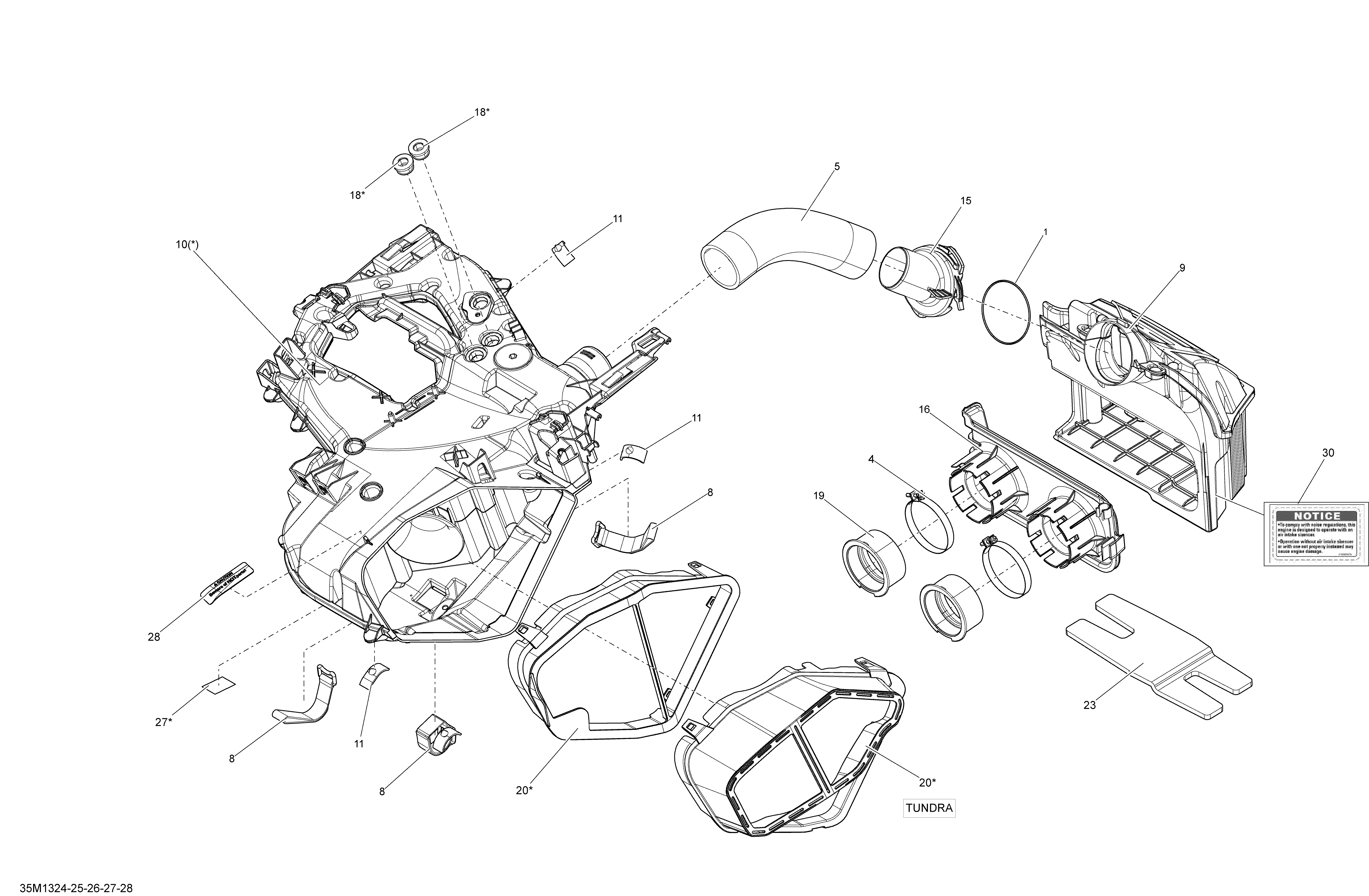

02- Air Intake System для BRP Ski-Doo TUNDRA SPORT & LT 550F XP - 2013
-
№АртикулНазвание
-
1293300115 O-RingO-Ring
-
4508000369 Gemi ClampGemi Clamp
-
5508000406 TubeTube
-
8508000532 Velcro StripVelcro Strip
-
9508000680 Primary Chamber Ass'yPrimary Chamber Ass'y
-
11508000537 StopperStopper
-
15508000562 LinkLink
-
16508000564 Adapter PlateAdapter Plate
-
19508000594 Air Intake AdapterAir Intake Adapter
-
23508000674 Insulated FoamInsulated Foam
-
28516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
30516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
10*508000715 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
18*508000574 GrommetGrommet
-
20*508000595 Air Intake FilterAir Intake Filter
-
27*509000688 Reflective SheetReflective Sheet
