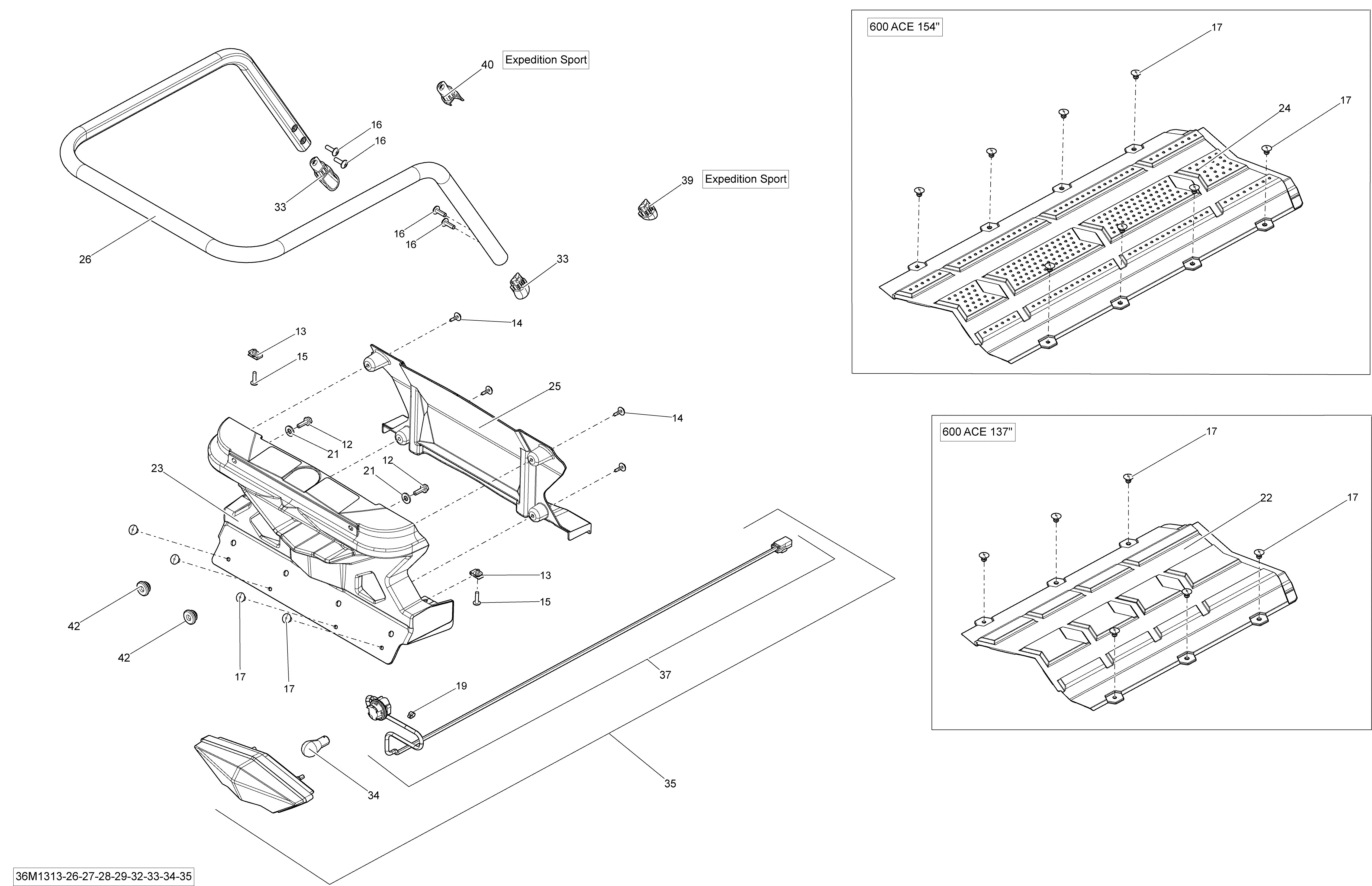

09- Luggage Rack SPORT для BRP Ski-Doo TUNDRA SPORT & LT 550F XP - 2013
-
№АртикулНазвание
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
14250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
15250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
16250000420 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21234062410 Flat Washer 6 mmFlat Washer 6 mm
-
23511000625 Rear Light SupportRear Light Support
-
25511000701 Rear Cover SupportRear Cover Support
-
26511000705 Luggage RackLuggage Rack
-
33520000899 CapCap
-
34520000758 BulbBulb
-
35520000679 Rear Light Ass'yRear Light Ass'y
-
37520000680 Wiring Harness Ass'yWiring Harness Ass'y
-
42705003666 Rubber GrommetRubber Grommet
