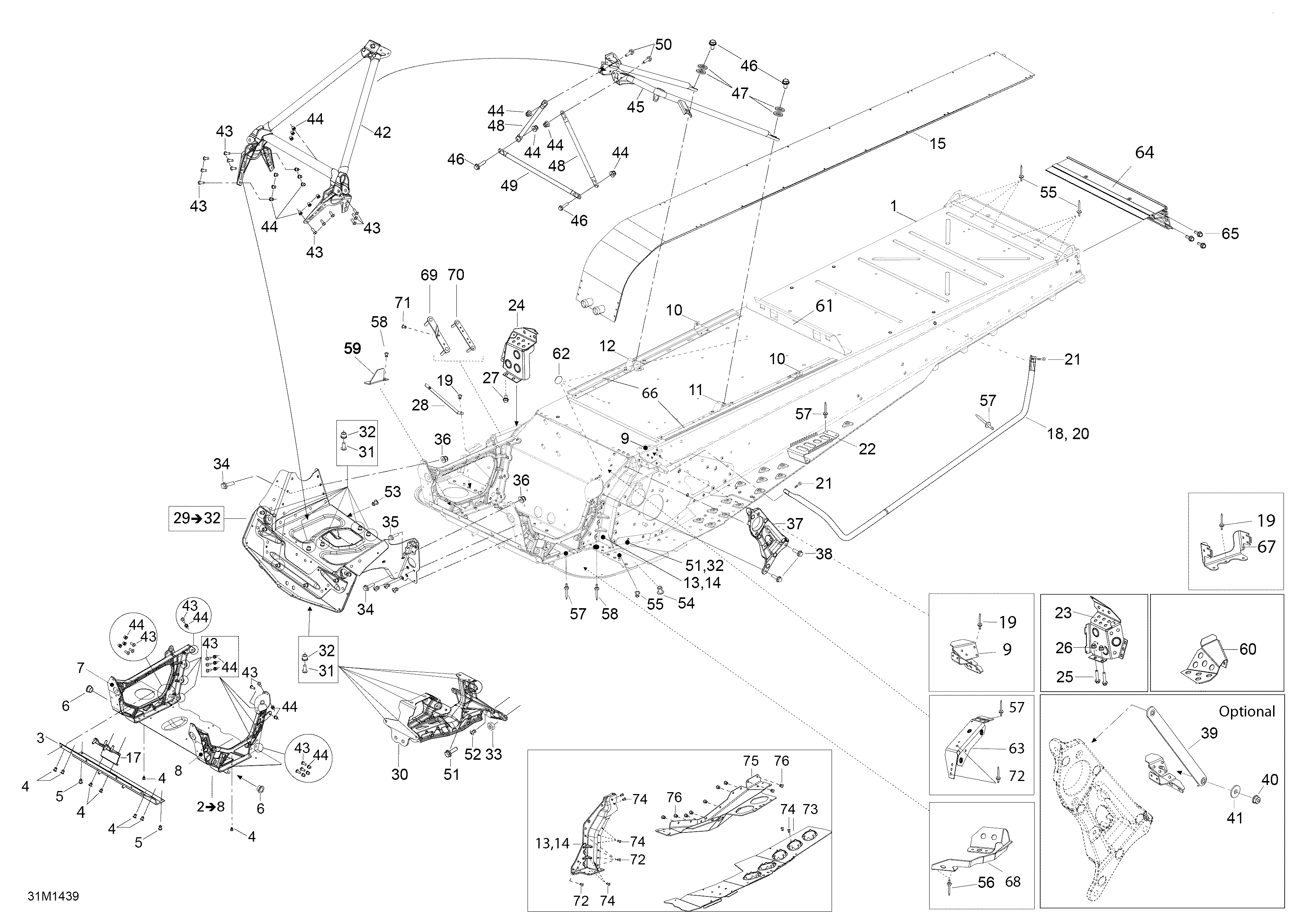

09- Frame для BRP Ski-Doo EXPEDITION LE 600HOE, XU - 2014
-
№АртикулНазвание
-
1518328030 Frame. Includes 1 - 12Frame. Includes 1 - 12
-
2518326660 E Module. Includes 2 - 6E Module. Includes 2 - 6
-
3518326198 Front MemberFront Member
-
4293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6505072690 Leg CushionLeg Cushion
-
7518326795 RH MemberRH Member
-
8518326796 LH MemberLH Member
-
9605355235 Fastening BracketFastening Bracket
-
10518325987 Seat Box BracketSeat Box Bracket
-
11518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
12518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
13518325524 Frame Corner LHFrame Corner LH
-
14518325526 Frame Corner RHFrame Corner RH
-
15509000626 RadiatorRadiator
-
17518325943 MAG Engine SupportMAG Engine Support
-
18518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
19390909200 Avex RivetAvex Rivet
-
20518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
21207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
22520000492 FootrestFootrest
-
23518326464 Toe Hook LHToe Hook LH
-
24518326465 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054616 Spring BracketSpring Bracket
-
29518327546 ''S'' Module. Includes 29-32''S'' Module. Includes 29-32
-
30518327475 Front Suspension SupportFront Suspension Support
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
35250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37518327372 Pulley supportPulley support
-
38207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
39518326449 Draft Bar. OptionalDraft Bar. Optional
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41234081430 Flat Washer M8Flat Washer M8
-
42518326970 Front MemberFront Member
-
43207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
46207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
48518325114 Upper Column SupportUpper Column Support
-
49518325115 Center Column SupportCenter Column Support
-
50250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
51207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
52293150147 Hemlock RivetHemlock Rivet
-
53293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
54414644300 DartDart
-
55390909200 Avex RivetAvex Rivet
-
56293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
57390909100 Avex RivetAvex Rivet
-
58293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
59518326642 Muffler support plateMuffler support plate
-
60518325626 Brake Hose CoverBrake Hose Cover
-
61518325986 Battery support plateBattery support plate
-
62518325560 Adhesive PatchAdhesive Patch
-
63518326430 Clinch nut plateClinch nut plate
-
64518327194 Rear ProfileRear Profile
-
65207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
66518326107 Fastening railFastening rail
-
67515177073 Fusebox SupportFusebox Support
-
68518326566 Pulley Cover PlatePulley Cover Plate
-
69518326123 Gearbox Front PlateGearbox Front Plate
-
70518326124 Gearbox Rear PlateGearbox Rear Plate
-
71390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
72293150183 RivetRivet
-
73518326895 Footrest LHFootrest LH
-
73518326896 Footrest RHFootrest RH
-
74390909100 Avex RivetAvex Rivet
-
76293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
