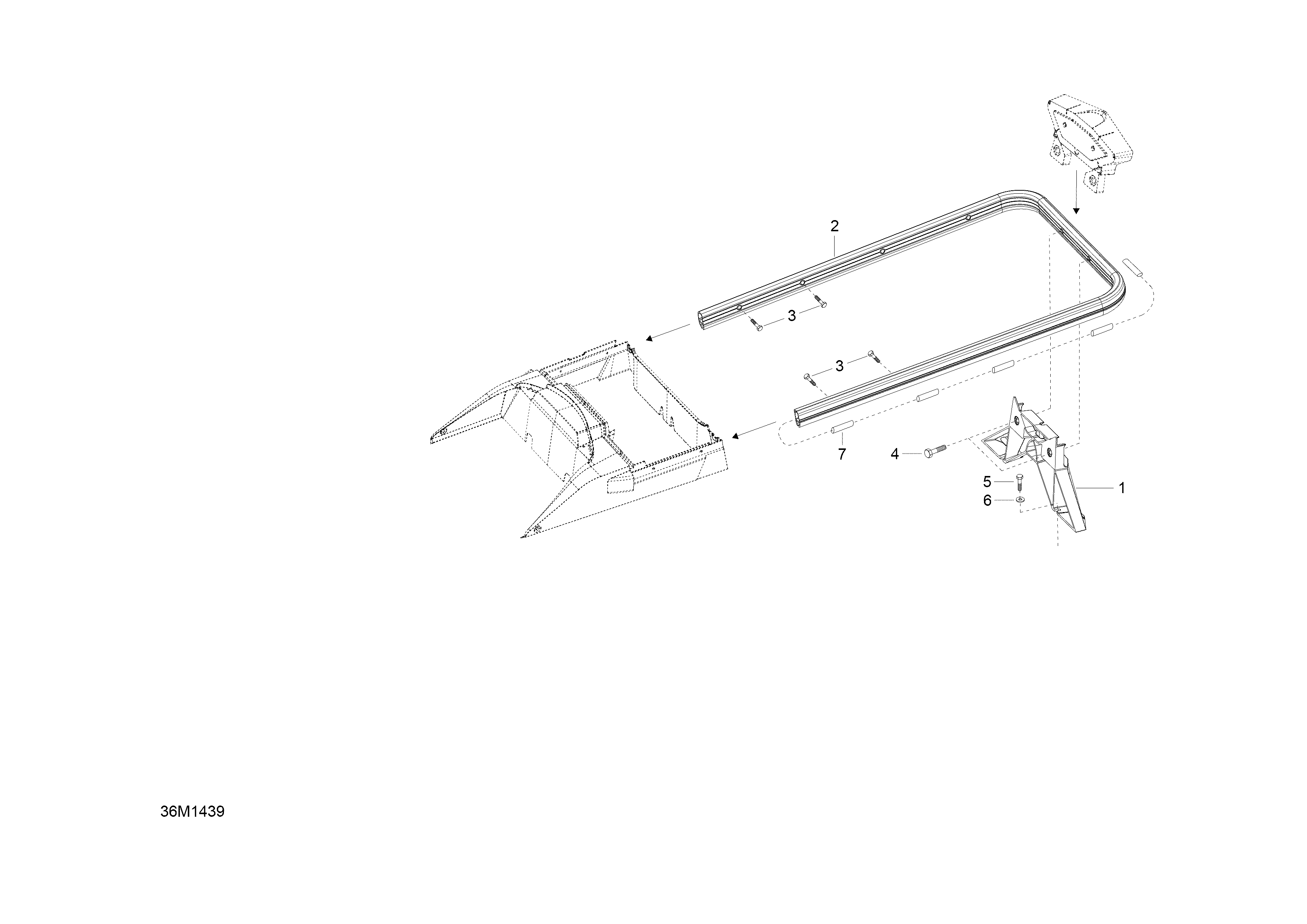

09- Luggage Rack для BRP Ski-Doo EXPEDITION LE 600HOE, XU - 2014
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000709 Rear BumperRear Bumper
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207663534 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
6234062410 Flat Washer 6 mmFlat Washer 6 mm
-
7511000657 Support HoseSupport Hose
