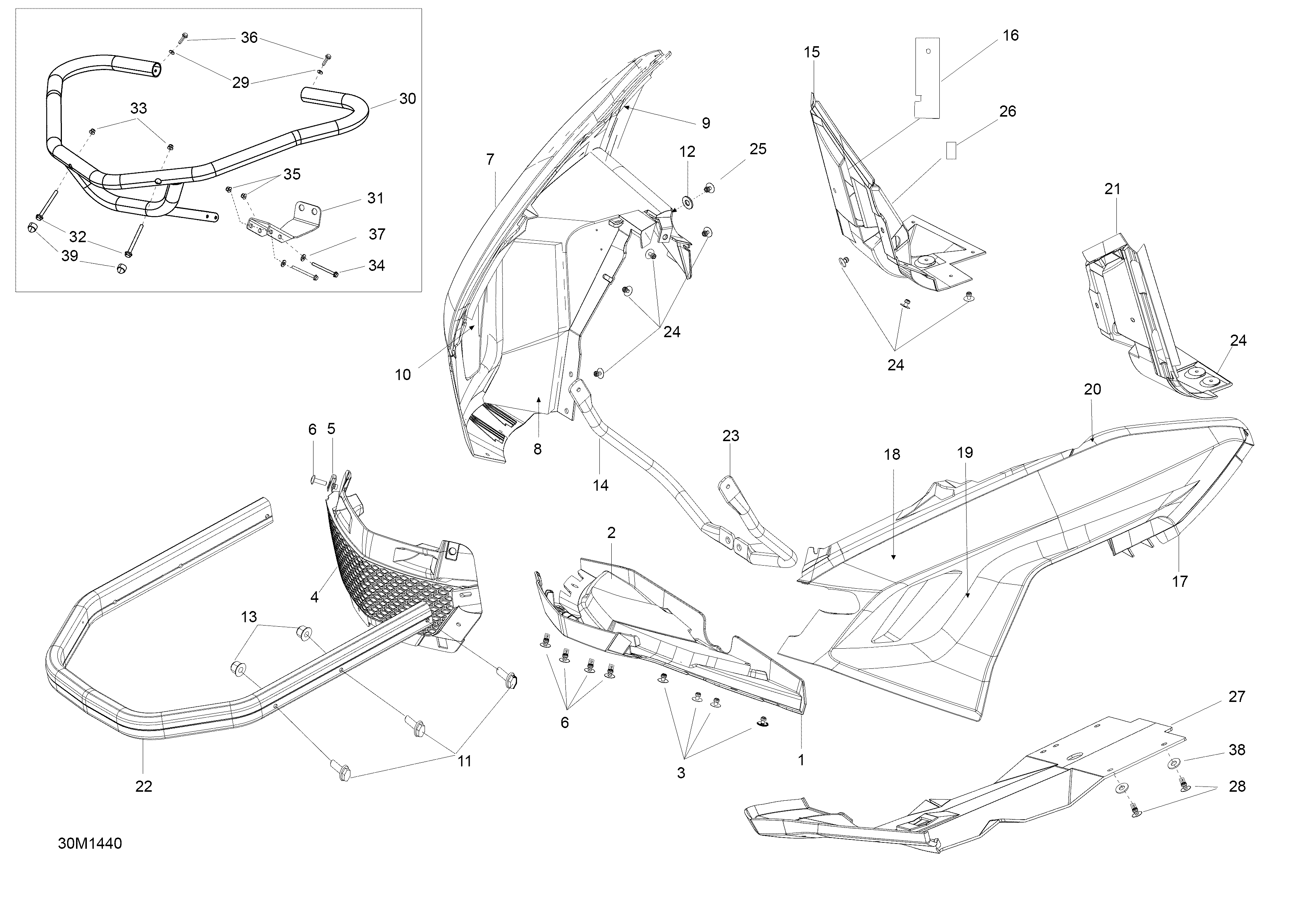

09- Bottom Pan для BRP Ski-Doo EXPEDITION SE 600HOE, XU - 2014
-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7502007187 Black Bottom Pan Ass'y, RHBlack Bottom Pan Ass'y, RH
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
12234052490 Washer M5Washer M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14502007015 RH Bumper SupportRH Bumper Support
-
15502007191 Black Bottom Pan Rear Ass'y RHBlack Bottom Pan Rear Ass'y RH
-
16502007038 Aluminium FoilAluminium Foil
-
17502007198 Black Bottom Pan Ass'y, LHBlack Bottom Pan Ass'y, LH
-
18502007003 InsulatorInsulator
-
19502007185 InsulatorInsulator
-
21502007195 Black Bottom Pan Rear Ass'y LHBlack Bottom Pan Rear Ass'y LH
-
22502007229 Black BumperBlack Bumper
-
23502007014 LH Bumper SupportLH Bumper Support
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
26M44110 Reflective SheetReflective Sheet
-
27502007164 Black Skid Plate Front Xu AaBlack Skid Plate Front Xu Aa
-
28250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
29M20117 WasherWasher
-
30502007270 Black Extra BumberBlack Extra Bumber
-
31502007022 Lower Fastening PlateLower Fastening Plate
-
32205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
37234061410 Flat Washer 6 mmFlat Washer 6 mm
-
38234082410 Flat Washer 8 mmFlat Washer 8 mm
-
39M28056 CapCap
