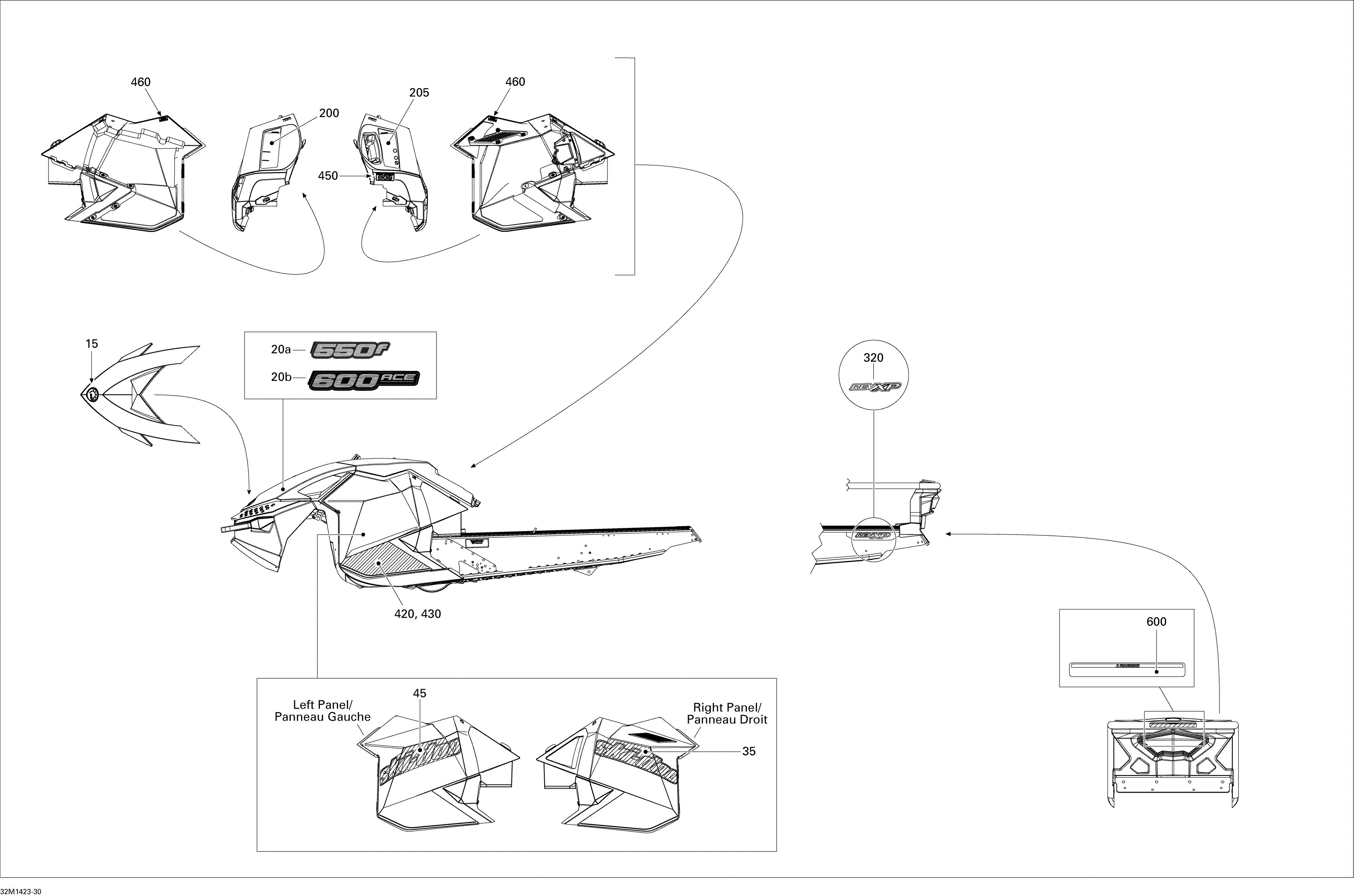

09- Decals для BRP Ski-Doo EXPEDITION SPORT 600ACE XP - 2014
![](/wa-data/public/shop/sheme/bombardier/ski-doo/a1fa2da9-2cfb-4bb1-af66-5e3a763f1470.png)
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20b516006390 Hood Decal, Rotax 600ACEHood Decal, Rotax 600ACE
-
35516005290 RH Side DecalRH Side Decal
-
45516005289 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516006321 Decal, REV XPDecal, REV XP
-
420516006180 RH Lower DecalRH Lower Decal
-
430516006179 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516006117 Warning Decal, TrackWarning Decal, Track
