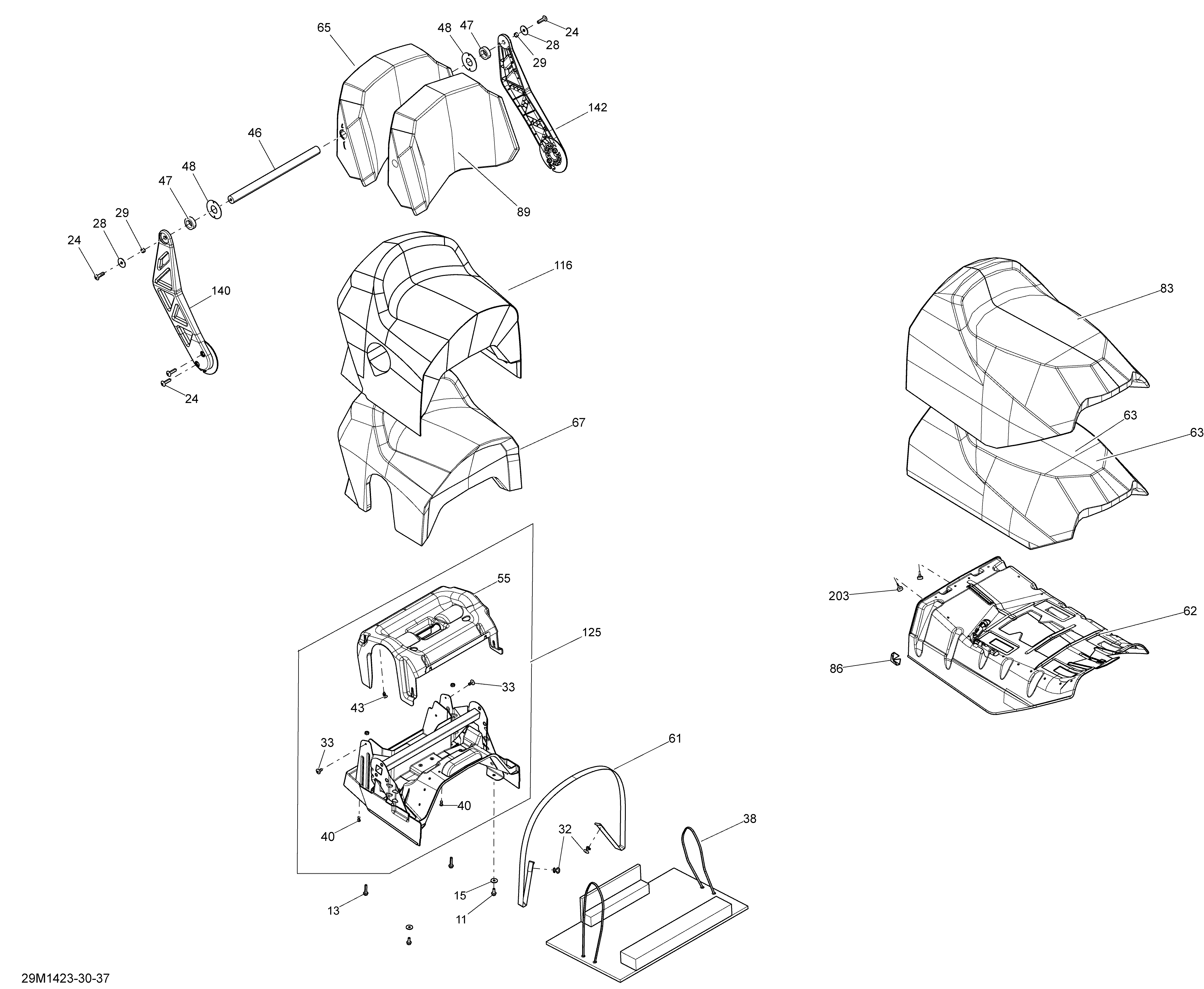

09- Seat для BRP Ski-Doo EXPEDITION SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
11207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
13207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
15224061201 Flat WasherFlat Washer
-
24250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
28250200128 Flat Washer 8 mmFlat Washer 8 mm
-
29271000558 SpacerSpacer
-
32293150067 RivetRivet
-
33390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
43414644300 DartDart
-
46510004377 Upper Backrest AxleUpper Backrest Axle
-
47510004378 Rubber ShimRubber Shim
-
48510004379 WasherWasher
-
55510004423 Foam SupportFoam Support
-
61510004768 Courroie De SiegeCourroie De Siege
-
62510004775 Front Seat BaseFront Seat Base
-
63510004777 Front Seat FoamFront Seat Foam
-
65510004782 Backrest FoamBackrest Foam
-
67510004791 Rear Seat FoamRear Seat Foam
-
83510005181 Seat CoverSeat Cover
-
89510005309 Backrest CoverBackrest Cover
-
116510005399 Rear Seat CoverRear Seat Cover
-
125510005535 Seat Base Ass'ySeat Base Ass'y
-
140510005548 RH Arm, BlackRH Arm, Black
-
142510005549 LH Arm, BlackLH Arm, Black
-
203708000759 Rubber StopperRubber Stopper
