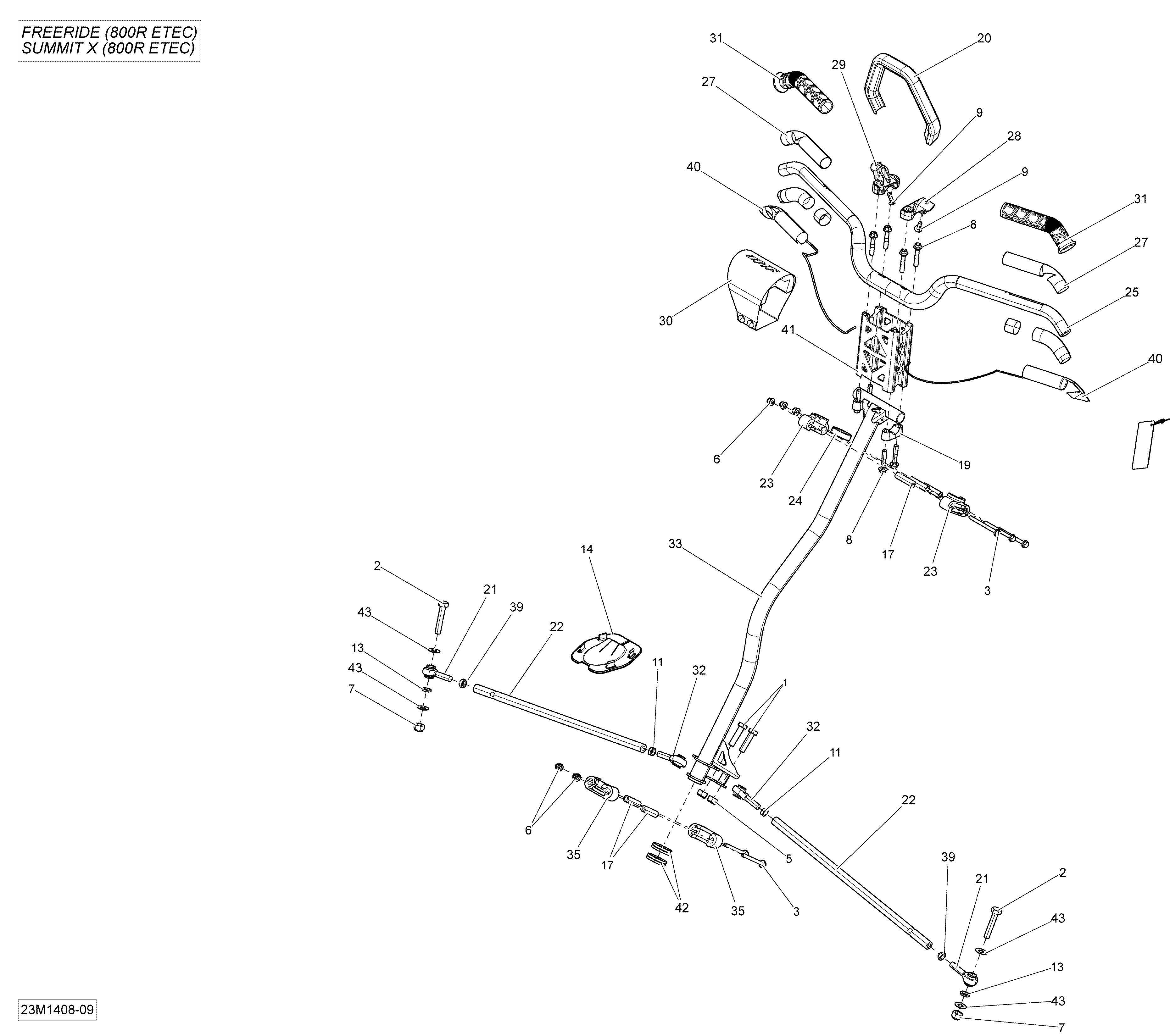

07- Steering для BRP Ski-Doo FREERIDE 146, 800RE XM RS - 2014
-
№АртикулНазвание
-
1207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
2207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
3207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
5232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
6233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
9250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
11250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
13503192496 WasherWasher
-
14506152163 PlatePlate
-
17506152297 Housing BushingHousing Bushing
-
19506152395 Steering SupportSteering Support
-
20506152460 Moulding StrapMoulding Strap
-
21506152019 RH Thread Ball JointRH Thread Ball Joint
-
22506152498 Tie-RodTie-Rod
-
23506152508 Upper Half-HousingUpper Half-Housing
-
24506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
25506152668 Manta Green Handle BarManta Green Handle Bar
-
27506152548 InsulantInsulant
-
28506152555 Steering SupportSteering Support
-
29506152556 Steering SupportSteering Support
-
30506152717 Steering PadSteering Pad
-
31506152560 Grip 148mmGrip 148mm
-
32506152081 LH Thread Ball JointLH Thread Ball Joint
-
33506152584 Black Main TubeBlack Main Tube
-
35506152588 Lower Half-HousingLower Half-Housing
-
39732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
40506152665 Heating Element 32 WATTHeating Element 32 WATT
-
41506152667 White Handlebar ExtensionWhite Handlebar Extension
-
42506152518 Lower Vibration RingLower Vibration Ring
-
43506152582 WasherWasher
