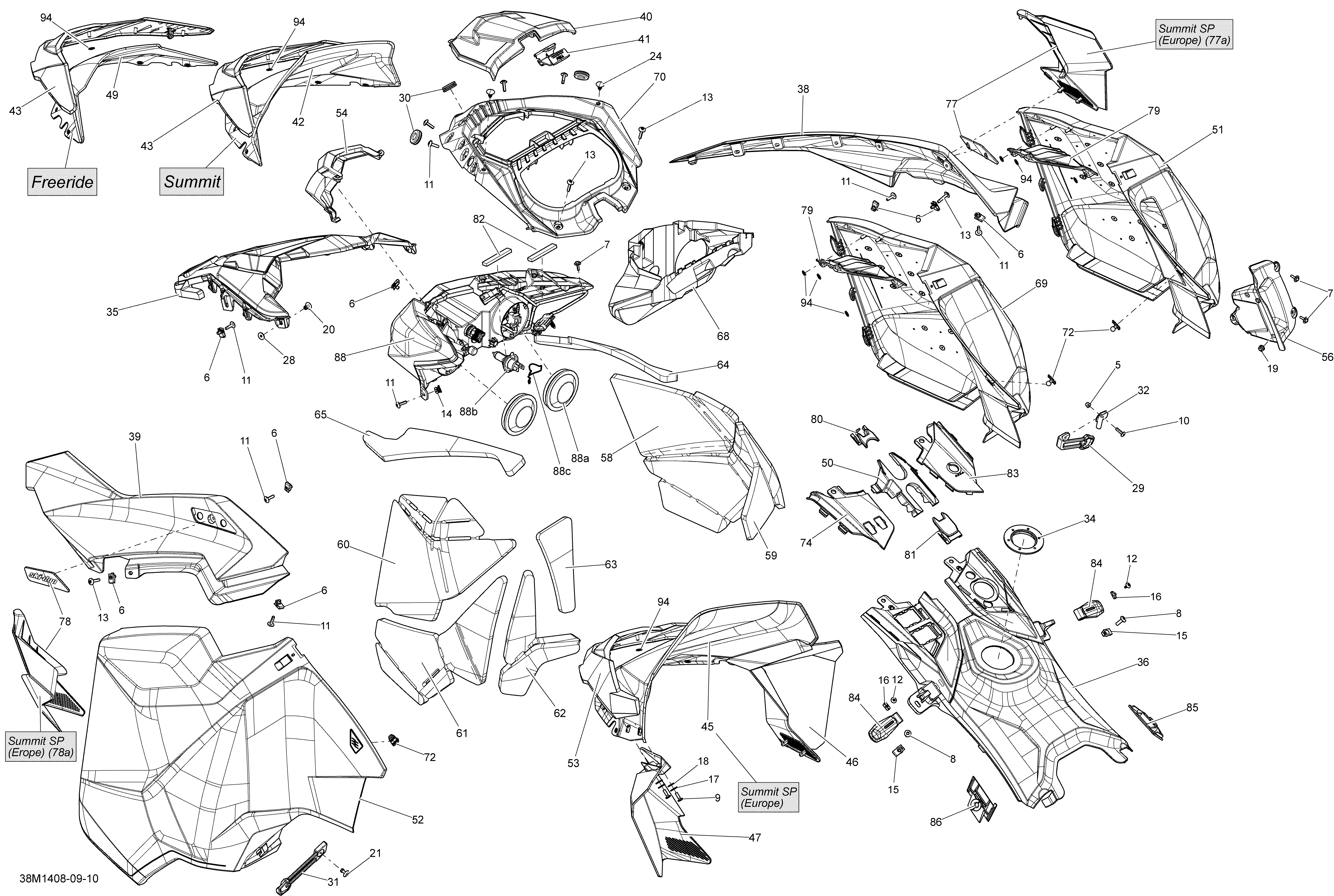

09- Hood, Windshield And Console для BRP Ski-Doo FREERIDE 146, 800RE XM RS - 2014
-
№АртикулНазвание
-
5233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
6250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
13250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
14250100035 Jack Nut M5Jack Nut M5
-
15250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
16250100156 Weld Nut M4Weld Nut M4
-
19275500241 Black CapBlack Cap
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
24414644300 DartDart
-
28517124300 WasherWasher
-
29517303612 RH Panel LatchRH Panel Latch
-
30517303756 GrommetGrommet
-
31517303808 LH Panel LatchLH Panel Latch
-
32517304221 Latch SupportLatch Support
-
34517304518 Console NutConsole Nut
-
35517305368 Grey Center HoodGrey Center Hood
-
36517305372 Grey Rear ConsoleGrey Rear Console
-
38517305384 White RH HoodWhite RH Hood
-
39517305385 White LH HoodWhite LH Hood
-
40517304912 Upper Storage Access CoverUpper Storage Access Cover
-
41517304917 Cover LatchCover Latch
-
43517305403 Windshield SupportWindshield Support
-
49517304931 Windshield 135mmWindshield 135mm
-
50517304970 Console SupportConsole Support
-
51517305376 Grey RH PanelGrey RH Panel
-
52517305374 Grey LH PanelGrey LH Panel
-
54517305380 Headlight TrimHeadlight Trim
-
56517305060 Deep Black RH ConsoleDeep Black RH Console
-
58517305082 RH Upper Panel FoamRH Upper Panel Foam
-
59517305085 RH Rear Panel FoamRH Rear Panel Foam
-
60517305086 LH Upper Panel FoamLH Upper Panel Foam
-
61517305087 LH Center Panel FoamLH Center Panel Foam
-
62517305088 LH Lower Panel FoamLH Lower Panel Foam
-
63517305089 LH Rear Panel FoamLH Rear Panel Foam
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
65517305091 LH Rear Hood FoamLH Rear Hood Foam
-
68517305095 TrunkTrunk
-
69517305379 Grey RH Panel. With Electric StarterGrey RH Panel. With Electric Starter
-
70517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
72517305504 PinPin
-
74517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
77517305137 RH Hood Filler PlateRH Hood Filler Plate
-
78517305138 LH Hood Filler PlateLH Hood Filler Plate
-
79517305377 GridGrid
-
80517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
81517305148 Support Console CapSupport Console Cap
-
82517305157 Seal JointSeal Joint
-
83517305222 Deep Black RH Front ConsoleDeep Black RH Front Console
-
84517305279 Panel LatchPanel Latch
-
85517305493 RH ClipRH Clip
-
86517305494 LH ClipLH Clip
-
88a219400070 CapCap
-
88b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
88c219800282 Holder BracketHolder Bracket
-
88517305497 HeadlampHeadlamp
-
94732610072 Push NutPush Nut
