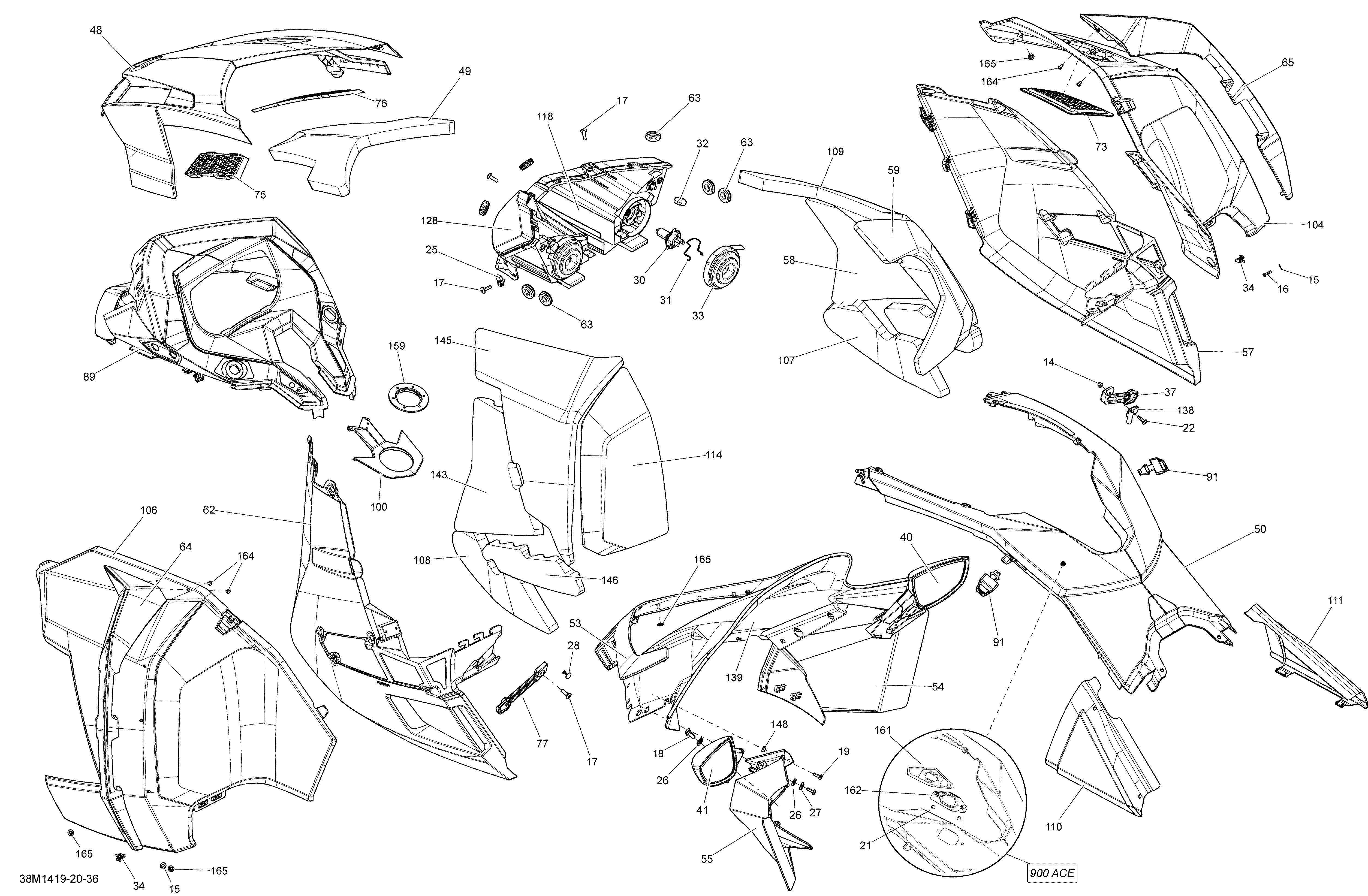

09- Hood, Windshield And Console для BRP Ski-Doo GRAND TOURING LE 12004TEC XR - 2014
-
№АртикулНазвание
-
14233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
15234042600 Flat Washer 4 mm, Stainless. Model-SEFlat Washer 4 mm, Stainless. Model-SE
-
16241141660 Flanged Hex. Screw K40 X 16. Model-SEFlanged Hex. Screw K40 X 16. Model-SE
-
17250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
27250200025 Washer M5Washer M5
-
28293150108 Pop Rivet 3/16''. Model-SEPop Rivet 3/16''. Model-SE
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176498 CapCap
-
33515176499 CoverCover
-
34517302785 ClipClip
-
37517303612 RH Panel LatchRH Panel Latch
-
40517305100 RH Mirror Ass'yRH Mirror Ass'y
-
41517305101 LH Mirror Ass'yLH Mirror Ass'y
-
48517303739 Black Hood. Model-LE Black-BlackBlack Hood. Model-LE Black-Black
-
48517303739 Black Hood. Model-SE Black-BlackBlack Hood. Model-SE Black-Black
-
48517305158 White Hood. Model-SE White-WhiteWhite Hood. Model-SE White-White
-
49517304893 Hood FoamHood Foam
-
50517303741 Black Console. Model-LE Black-BlackBlack Console. Model-LE Black-Black
-
50517304541 Black Console Ass'y. Model-SE Black-BlackBlack Console Ass'y. Model-SE Black-Black
-
50517305259 White Console Ass'y. Model-SE White-WhiteWhite Console Ass'y. Model-SE White-White
-
53860200230 Windshield Support KitWindshield Support Kit
-
54517303745 RH Console Air DeflectorRH Console Air Deflector
-
55517303746 LH Console Air DeflectorLH Console Air Deflector
-
57517304373 Black RH Pannel MouldingBlack RH Pannel Moulding
-
58517304894 Central Foam Panel RHCentral Foam Panel RH
-
59517304895 Rear Panel Foam RHRear Panel Foam RH
-
62517304362 Black LH Pannel MouldingBlack LH Pannel Moulding
-
63517303756 GrommetGrommet
-
64517304196 Black LH Side Wind Deflector. Model-LE Black-BlackBlack LH Side Wind Deflector. Model-LE Black-Black
-
64517304196 Black LH Side Wind Deflector. Model-SE Black-BlackBlack LH Side Wind Deflector. Model-SE Black-Black
-
64517305233 White LH Air Deflector. Model-SE White-WhiteWhite LH Air Deflector. Model-SE White-White
-
65517304197 Black RH Side Wind Deflector. Model-LE Black-BlackBlack RH Side Wind Deflector. Model-LE Black-Black
-
65517304197 Black RH Side Wind Deflector. Model-SE Black-BlackBlack RH Side Wind Deflector. Model-SE Black-Black
-
65517305232 White RH Air Deflector. Model-SE White-WhiteWhite RH Air Deflector. Model-SE White-White
-
73517303801 Panel Grill. Model-LE Black-BlackPanel Grill. Model-LE Black-Black
-
73517304909 Panel Grill. Model-SE Black-BlackPanel Grill. Model-SE Black-Black
-
73517303801 Panel Grill. Model-SE White-WhitePanel Grill. Model-SE White-White
-
75517303804 LH Hood Grill. Model-LELH Hood Grill. Model-LE
-
75517304242 LH Hood Grill. Model-SELH Hood Grill. Model-SE
-
76517303805 RH Hood Grill. Model-LERH Hood Grill. Model-LE
-
76517304243 RH Hood Grill. Model-SERH Hood Grill. Model-SE
-
77517303808 LH Panel LatchLH Panel Latch
-
89517303971 Indicator Support. Model-LEIndicator Support. Model-LE
-
89517303996 Indicator Support. Model-SEIndicator Support. Model-SE
-
91517305000 Panel LatchPanel Latch
-
100517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
104517304006 Black RH Pannel. Model-LE Black-BlackBlack RH Pannel. Model-LE Black-Black
-
104517304006 Black RH Pannel. Model-SE Black-BlackBlack RH Pannel. Model-SE Black-Black
-
104517305328 White RH Panel. Model-SE White-WhiteWhite RH Panel. Model-SE White-White
-
106517303753 Black LH Pannel. Model-LE Black-BlackBlack LH Pannel. Model-LE Black-Black
-
106517303753 Black LH Pannel. Model-SE Black-BlackBlack LH Pannel. Model-SE Black-Black
-
106517305327 White LH Pannel. Model-SE White-WhiteWhite LH Pannel. Model-SE White-White
-
107517304905 RH Lower Panel FoamRH Lower Panel Foam
-
108517304901 LH Lower Panel FoamLH Lower Panel Foam
-
109517304908 RH Upper Panel FoamRH Upper Panel Foam
-
110517304123 Deep Black LH Fuel Tank Moulding. Model-LE Black-BlackDeep Black LH Fuel Tank Moulding. Model-LE Black-Black
-
110517304123 Deep Black LH Fuel Tank Moulding. Model-SE Black-BlackDeep Black LH Fuel Tank Moulding. Model-SE Black-Black
-
110517305177 White LH Fuel Tank Moulding. Model-SE White-WhiteWhite LH Fuel Tank Moulding. Model-SE White-White
-
111517304124 Deep Black RH Fuel Tank Moulding. Model-LE Black-BlackDeep Black RH Fuel Tank Moulding. Model-LE Black-Black
-
111517304124 Deep Black RH Fuel Tank Moulding. Model-SE Black-BlackDeep Black RH Fuel Tank Moulding. Model-SE Black-Black
-
111517305178 White RH Fuel Tank Moulding. Model-SE White-WhiteWhite RH Fuel Tank Moulding. Model-SE White-White
-
114517304904 LH Rear Panel FoamLH Rear Panel Foam
-
118517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
128517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
138517304221 Latch SupportLatch Support
-
139517304268 Extra Hight Windshield (620)Extra Hight Windshield (620)
-
143517304899 LH Central Panel FoamLH Central Panel Foam
-
145517304902 LH Upper Panel FoamLH Upper Panel Foam
-
146517304897 Central Foam Panel LHCentral Foam Panel LH
-
148517304281 Rubber Washer 5 mmRubber Washer 5 mm
-
159517304518 Console NutConsole Nut
-
164732601210 Hex. Flanged Screw #8 X 3/8Hex. Flanged Screw #8 X 3/8
-
165732610072 Push NutPush Nut
