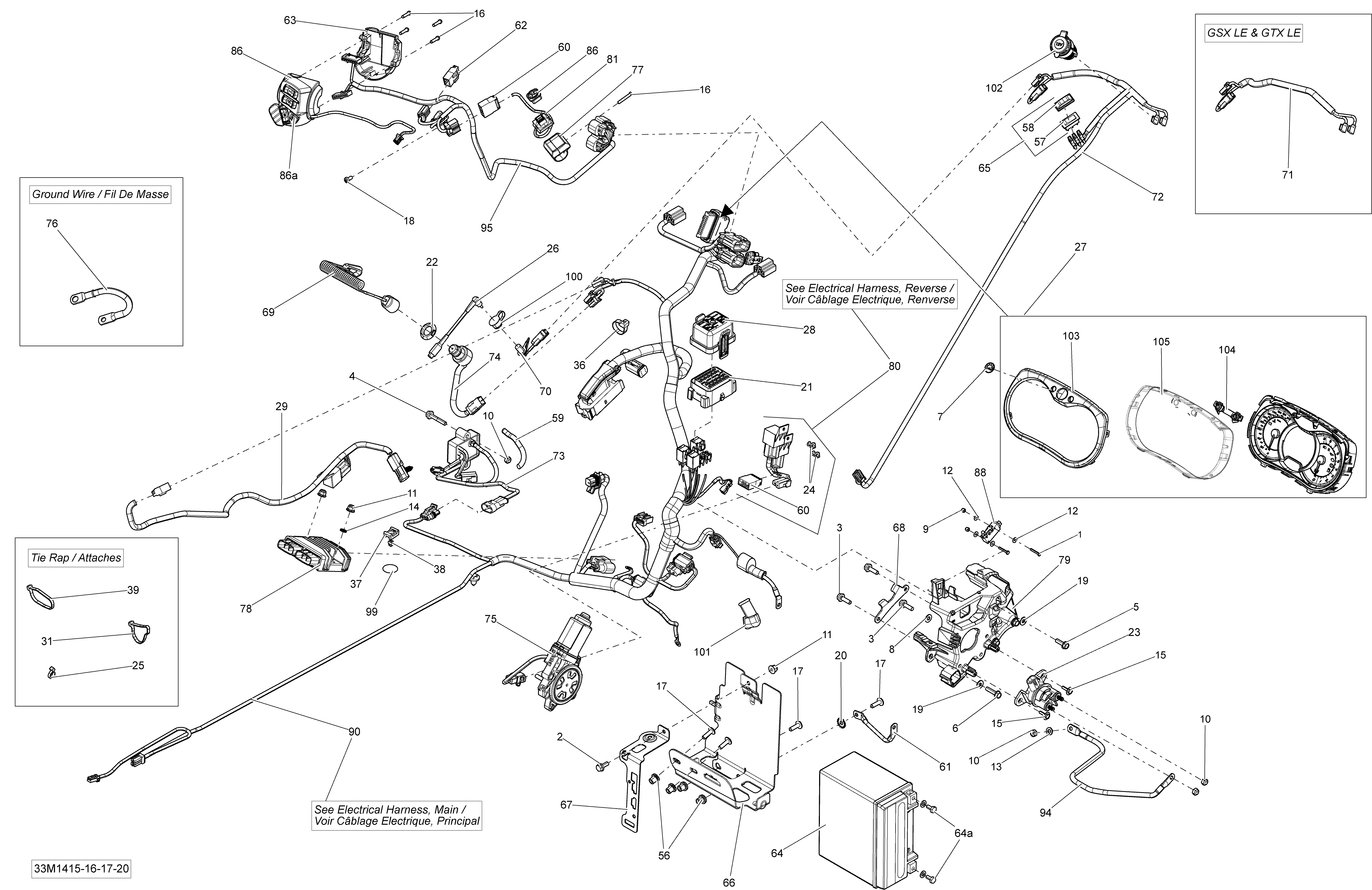

10- Electrical System для BRP Ski-Doo GRAND TOURING LE 12004TEC XR - 2014
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
8224061121 Flat WasherFlat Washer
-
9232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
13234061410 Flat Washer 6 mmFlat Washer 6 mm
-
14234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
15250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
16250000263 Torx Screw #8-18Torx Screw #8-18
-
17250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
18250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
19250200039 Flat WasherFlat Washer
-
20250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
21278002824 Case Ass'yCase Ass'y
-
22278002963 Safety NutSafety Nut
-
23278003012 Starter RelayStarter Relay
-
24293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
25293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
26515175851 ExtensionExtension
-
27515177590 SpeedometerSpeedometer
-
28515177671 Fuse Box CoverFuse Box Cover
-
29515177646 Fan HarnessFan Harness
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
37515176795 ClipClip
-
38390909200 Avex RivetAvex Rivet
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
56293450275 InsertInsert
-
57510004413 Rocker SwitchRocker Switch
-
58510004414 Switch ProtectorSwitch Protector
-
59515175442 Tubing 6 mmTubing 6 mm
-
60515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
61515175749 Ground WireGround Wire
-
62515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
63515175926 Housing Switch PlateHousing Switch Plate
-
64296000295 Battery 18 Amp. Includes 64aBattery 18 Amp. Includes 64a
-
64a295500849 Battery Fastener KitBattery Fastener Kit
-
65515176844 Rocker Switch Ass'yRocker Switch Ass'y
-
66515176970 Battery SupportBattery Support
-
67515177008 Battery StripBattery Strip
-
68515177039 PlatePlate
-
69515177057 DESS CapDESS Cap
-
70515177187 Visor HarnessVisor Harness
-
71515177188 Harness AccessoriesHarness Accessories
-
72515177189 Seat HarnessSeat Harness
-
73515177234 Compressor ModuleCompressor Module
-
74515177249 DESS SwitchDESS Switch
-
75515177273 Electrical Motor Ass'yElectrical Motor Ass'y
-
76515177289 Fil de MasseFil de Masse
-
77515177310 Kill Switch SupportKill Switch Support
-
78515177325 RegulatorRegulator
-
79515177347 PlatePlate
-
80515177350 Reverse HarnessReverse Harness
-
81515177362 Kill SwitchKill Switch
-
86515177417 LH Switch Housing. Includes 86aLH Switch Housing. Includes 86a
-
86A515176088 Start/RER ButtonStart/RER Button
-
88515177460 Switch Ass'ySwitch Ass'y
-
90515177511 Main HarnessMain Harness
-
94515177535 Battery WireBattery Wire
-
95515177610 Commodo HarnessCommodo Harness
-
99518325560 Adhesive PatchAdhesive Patch
-
100572103300 CapCap
-
101710000495 Protector CapProtector Cap
-
102710001248 Outlet DCOutlet DC
-
103415129348 Gauge RingGauge Ring
-
104415129355 Speedometer ButtonSpeedometer Button
-
105415129349 LensLens
