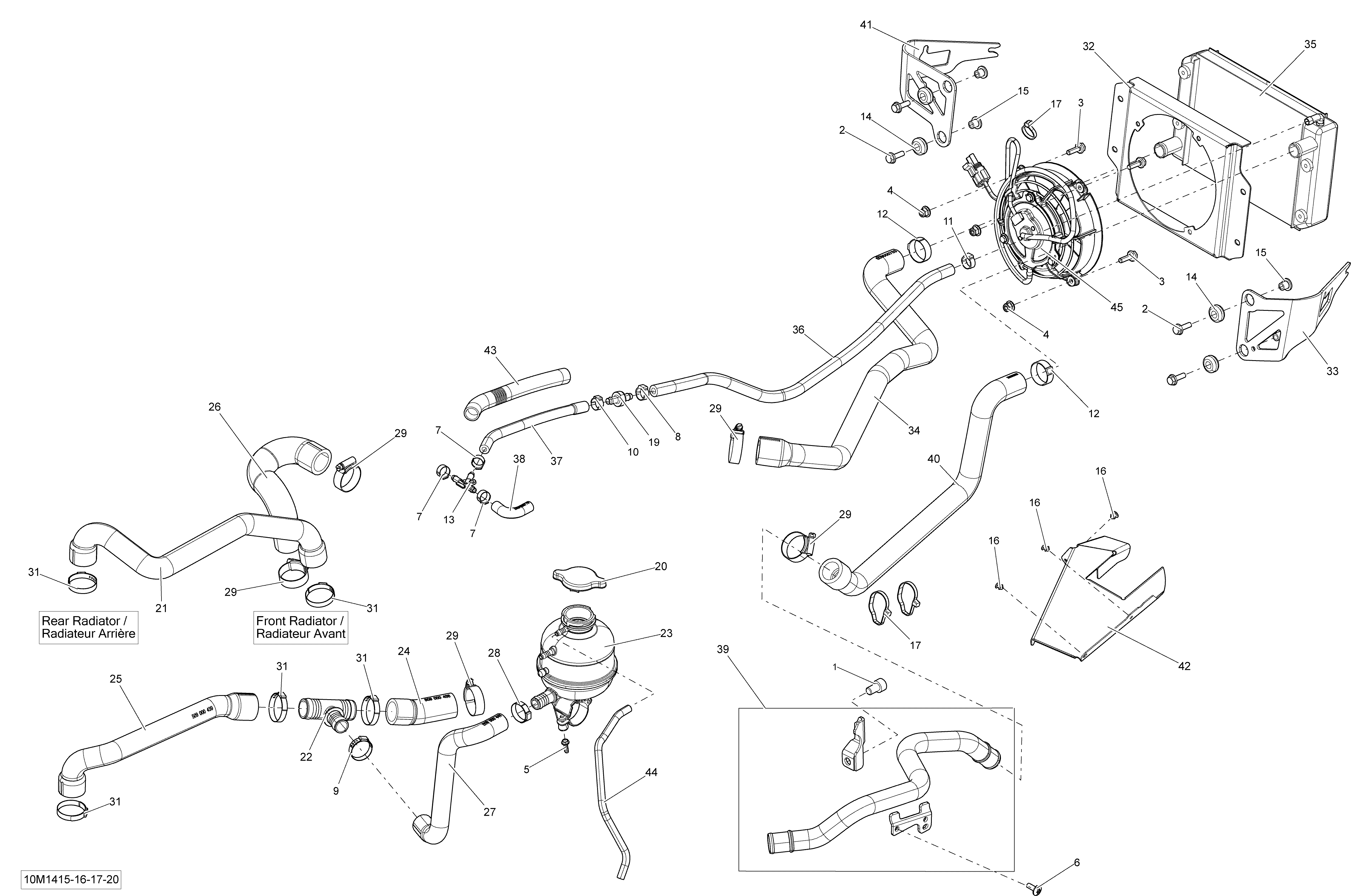

01- Cooling System LE для BRP Ski-Doo GSX LE 12004TEC XR - 2014
-
№АртикулНазвание
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
9293650099 Crimp ClampCrimp Clamp
-
20509000180 Pressure CapPressure Cap
-
21509000370 Radiator HoseRadiator Hose
-
22509000372 T-FittingT-Fitting
-
23509000421 Coolant TankCoolant Tank
-
24509000438 Radiator HoseRadiator Hose
-
25509000439 Radiator HoseRadiator Hose
-
26509000440 Outlet HoseOutlet Hose
-
27509000441 HoseHose
-
28509000442 Oetiker Gear ClampOetiker Gear Clamp
-
29509000443 Aba Gear ClampAba Gear Clamp
-
31509000529 Oetiker Gear ClampOetiker Gear Clamp
-
44276000048 Hose 6 mmHose 6 mm
