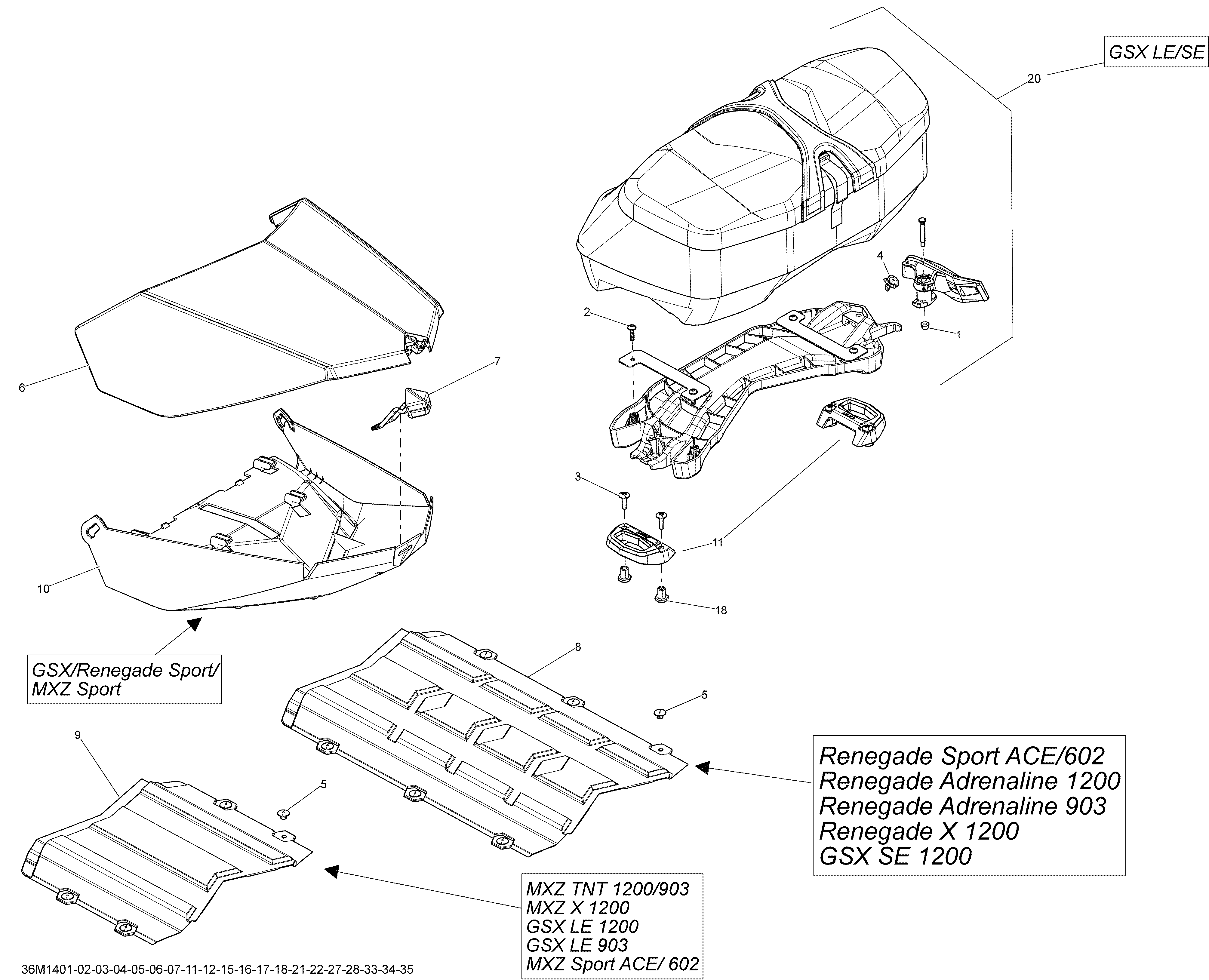

09- Luggage Rack для BRP Ski-Doo GSX LE 12004TEC XR - 2014
-
№АртикулНазвание
-
1233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
2250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
3250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
4293150067 RivetRivet
-
5293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
6511000568 Deep Black Trunk CoverDeep Black Trunk Cover
-
7511000528 BracketBracket
-
8511000590 Radiator Cover, 137''Radiator Cover, 137''
-
9511000591 Radiator Cover, 120''Radiator Cover, 120''
-
10511000757 TrunkTrunk
-
11511000779 Cargo BaseCargo Base
-
18511000822 InsertInsert
-
20860200620 Bag Ass'yBag Ass'y
