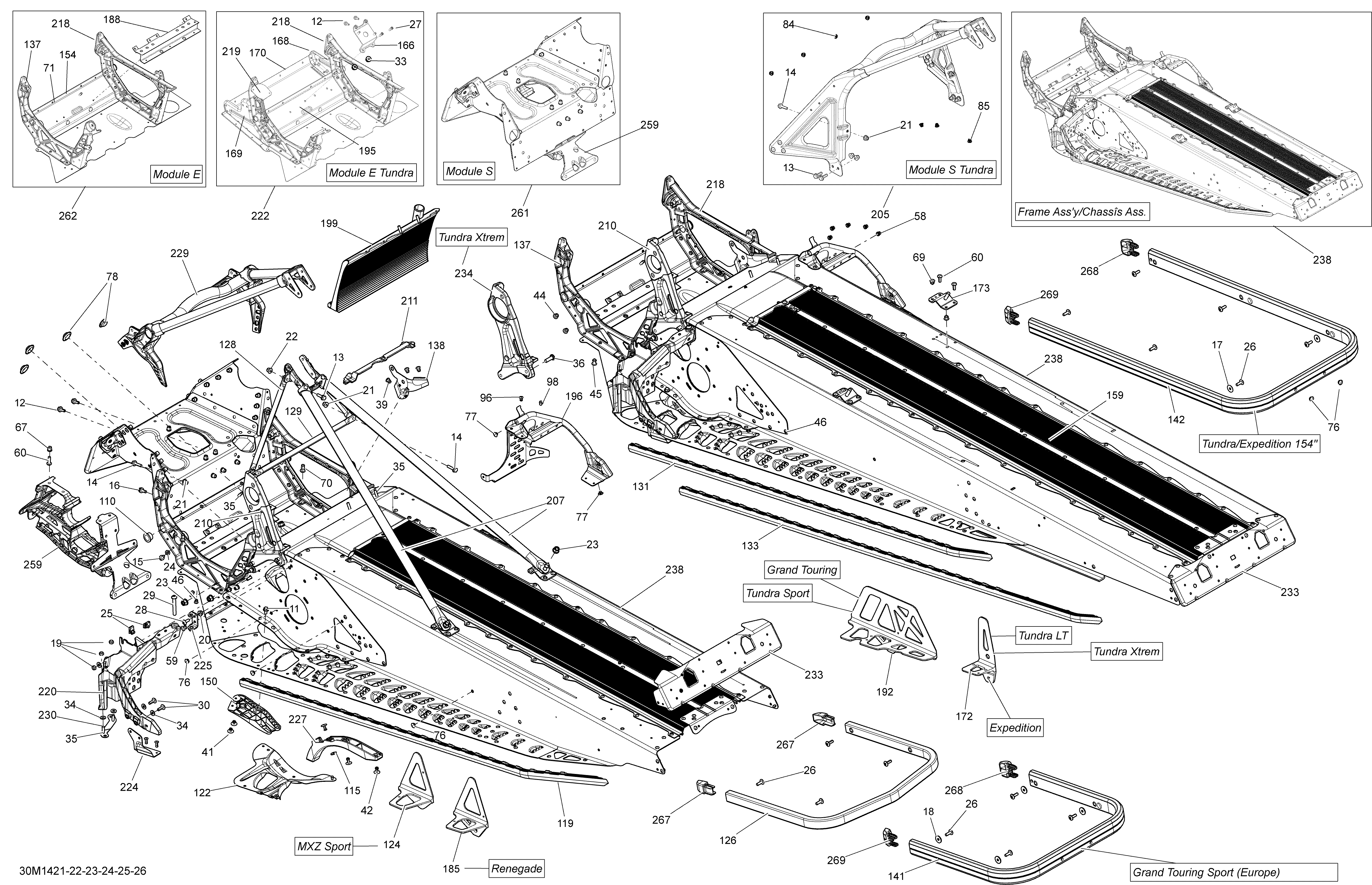

09- Frame _30M1421 для BRP Ski-Doo MXZ SPORT 550F XP - 2014
-
№АртикулНазвание
-
11207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
16210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18224061201 Flat WasherFlat Washer
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
-
25250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
28250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
29250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
30250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
33250100140 Elastic Hex. Flange Nut 1/4-20Elastic Hex. Flange Nut 1/4-20
-
34250200039 Flat WasherFlat Washer
-
35250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
36250300038 Clinch StudClinch Stud
-
39293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
42293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
45293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
46293150144 Stavex RivetStavex Rivet
-
58293150146 Henrob RivetHenrob Rivet
-
59293150147 Hemlock RivetHemlock Rivet
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
67233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
70293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
71293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
76293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
77293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
78293730052 Black PlugBlack Plug
-
96390909100 Avex RivetAvex Rivet
-
98390909200 Avex RivetAvex Rivet
-
110505073317 Leg CushionLeg Cushion
-
115517124300 WasherWasher
-
119518324812 RH RollerRH Roller
-
119518324813 LH RollerLH Roller
-
122518324874 RH ReinforcementRH Reinforcement
-
122518324875 LH ReinforcementLH Reinforcement
-
124518324885 RH Slide BracketRH Slide Bracket
-
124518324886 LH Slide BracketLH Slide Bracket
-
126518324980 Clear Rear BumperClear Rear Bumper
-
128518325114 Upper Column SupportUpper Column Support
-
129518325115 Center Column SupportCenter Column Support
-
137518325558 LH MemberLH Member
-
138518325559 RH Engine SupportRH Engine Support
-
150518325782 RH DeflectorRH Deflector
-
150518325783 LH DeflectorLH Deflector
-
154518325818 Front MemberFront Member
-
173518325973 RH Rear BaseRH Rear Base
-
173518325974 LH Rear BaseLH Rear Base
-
188518326120 Engine SupportEngine Support
-
196518327863 RH StirupRH Stirup
-
207518326559 Rear MemberRear Member
-
210518326651 Pulley SupportPulley Support
-
211518326656 SealSeal
-
220518326820 LH StirupLH Stirup
-
224518326960 SupportSupport
-
225518326961 U-AttachU-Attach
-
227518326973 Front ProtectorFront Protector
-
229518326975 Front MemberFront Member
-
230518326986 AttachAttach
-
233518327105 Rear CapRear Cap
-
238415129801 Frame MXZ 550FFrame MXZ 550F
-
259518327475 Front Suspension SupportFront Suspension Support
-
261518327737 Cross Member S ModuleCross Member S Module
-
262518327568 E ModuleE Module
-
267520000567 Full Moon CapFull Moon Cap
