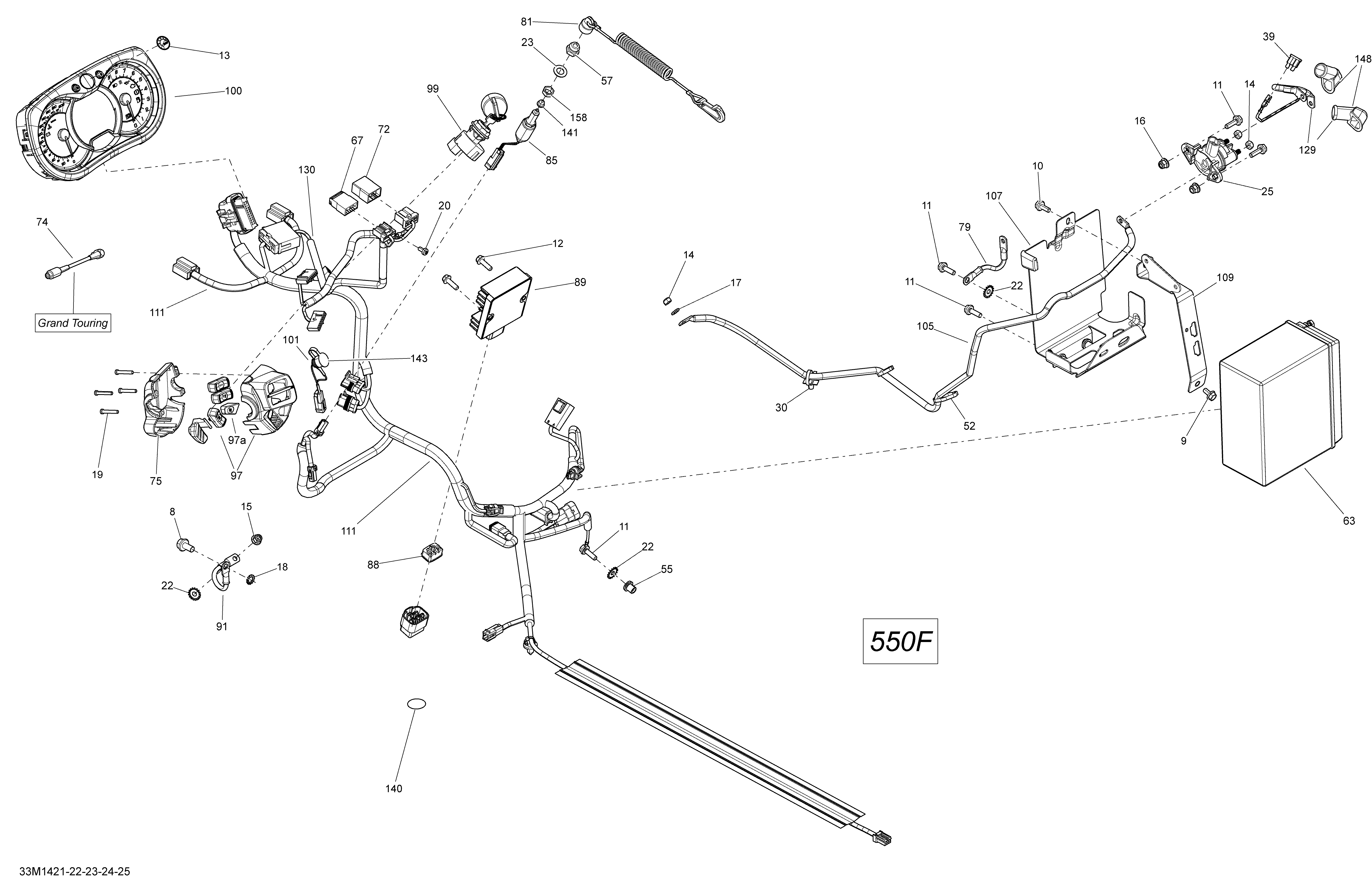

10- Electrical System _33M1421 для BRP Ski-Doo MXZ SPORT 550F XP - 2014
-
№АртикулНазвание
-
8207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
9207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
10207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17234061410 Flat Washer 6 mmFlat Washer 6 mm
-
18234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
19250000263 Torx Screw #8-18Torx Screw #8-18
-
20250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
22250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
23250200084 Flat WasherFlat Washer
-
25278003012 Starter RelayStarter Relay
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
39410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
55293450275 InsertInsert
-
57515145900 Switch NutSwitch Nut
-
63410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
67515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
72515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
74515175851 ExtensionExtension
-
75515175926 Housing Switch PlateHousing Switch Plate
-
79515176358 Ground WireGround Wire
-
81515176463 Cap Ass'yCap Ass'y
-
85515175653 Brake SwitchBrake Switch
-
88515176681 LockLock
-
89515176699 Voltage RegulatorVoltage Regulator
-
91515176745 Ground WireGround Wire
-
97515177021 LH HousingLH Housing
-
99515177063 Ignition SwirchIgnition Swirch
-
100515177598 SpeedometerSpeedometer
-
101515177187 Visor HarnessVisor Harness
-
105515177208 Battery/Starter WireBattery/Starter Wire
-
107515177264 Battery SupportBattery Support
-
109515177266 Battery StripBattery Strip
-
111515177547 Frame Wiring Harness Ass'yFrame Wiring Harness Ass'y
-
129515177576 Fuse Battery WireFuse Battery Wire
-
130515177609 Steering Wiring HarnessSteering Wiring Harness
-
140518325560 Adhesive PatchAdhesive Patch
-
141570151100 Plunger CapPlunger Cap
-
143572103300 CapCap
-
148710000495 Protector CapProtector Cap
-
158732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
97a515176088 Start/RER ButtonStart/RER Button
