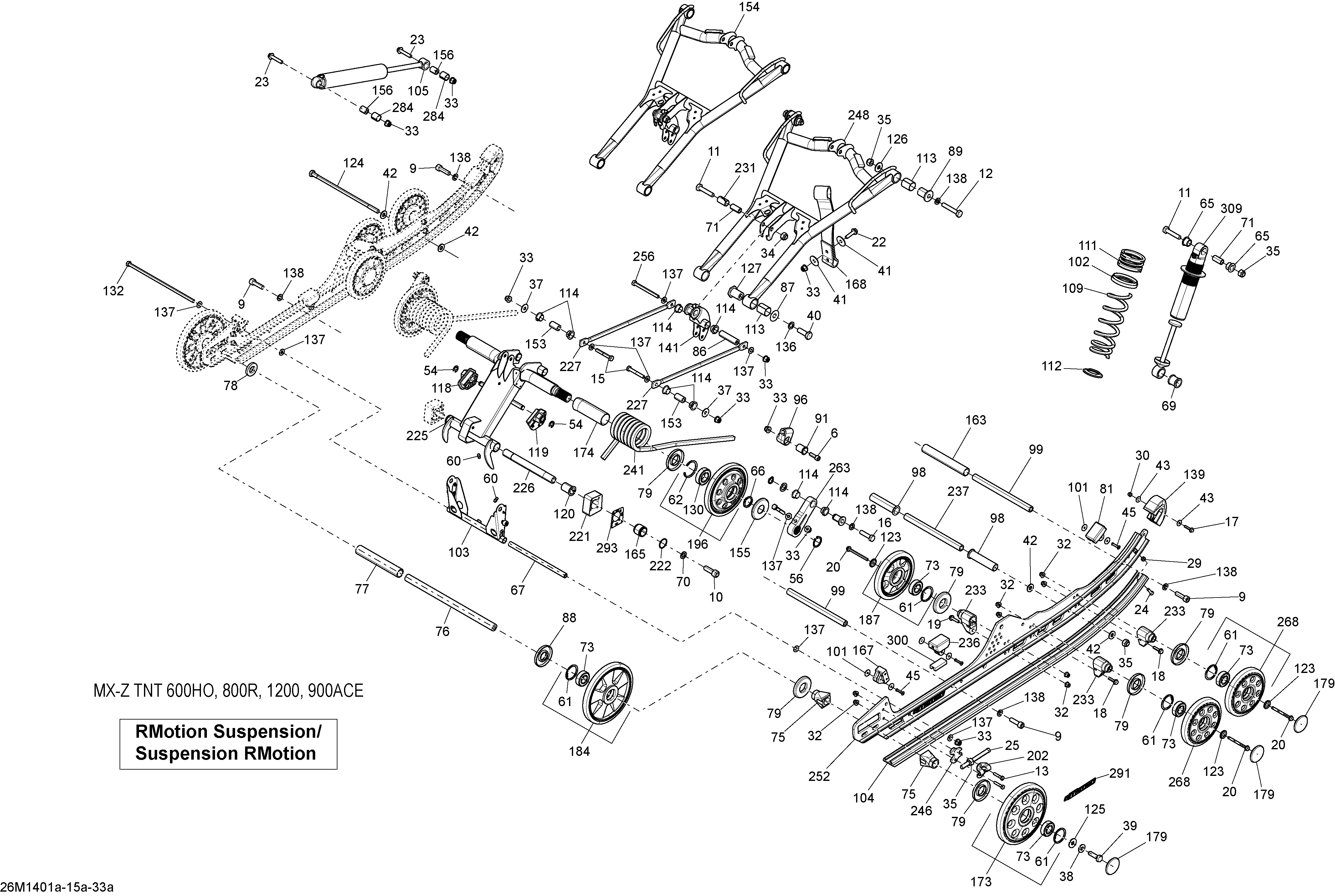

08- Rear Suspension TNT RMotion_26M1415a для BRP Ski-Doo MXZ TNT 12004TEC XR - 2014
-
№АртикулНазвание
-
6205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
9205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
10205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
11207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
12207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
13207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
15207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
16207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
17207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
19207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
20207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
22207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
23207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
24208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
25230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
32233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
37234082410 Flat Washer 8 mmFlat Washer 8 mm
-
38250200141 Conical Spring Washer M10Conical Spring Washer M10
-
39250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
40250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
41250200128 Flat Washer 8 mmFlat Washer 8 mm
-
42250200138 WasherWasher
-
43250200140 WasherWasher
-
45293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
54293370013 E-CirclipE-Circlip
-
56293370080 Retaining RingRetaining Ring
-
60408200700 Grease FittingGrease Fitting
-
61415129371 Retaining RingRetaining Ring
-
62415129780 Retaining RingRetaining Ring
-
65503189117 CushionCushion
-
66503189146 Axle SpringAxle Spring
-
67503189156 Pivot Arm AxlePivot Arm Axle
-
69503189271 CushionCushion
-
70503189276 WasherWasher
-
71503189282 BushingBushing
-
73503190396 Ball BearingBall Bearing
-
75503190428 Rear Wheel SpacerRear Wheel Spacer
-
76503190429 Rear AxleRear Axle
-
77503190430 SpacerSpacer
-
78503190432 WasherWasher
-
79503190434 Labyrinth SealLabyrinth Seal
-
81503190576 Rubber StopperRubber Stopper
-
86503190643 Axle Bar (Long)Axle Bar (Long)
-
87503190656 WasherWasher
-
88503190682 Labyrinth SealLabyrinth Seal
-
89503190698 AxleAxle
-
91503190754 Retainer CushionRetainer Cushion
-
96503191183 Spring SupportSpring Support
-
98503191259 Center BushingCenter Bushing
-
99503191260 Axle StrapAxle Strap
-
101503191273 WasherWasher
-
102503191281 Spring SpacerSpring Spacer
-
103503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
104503191301 Black Slider Shoe 120''Black Slider Shoe 120''
-
105503193284 Rear Shock HPGTARear Shock HPGTA
-
109503193160 Black Spring (189MM Long)Black Spring (189MM Long)
-
111503193480 Deep Black Spring (51mm Long)Deep Black Spring (51mm Long)
-
112503192608 Spring StopperSpring Stopper
-
113503191554 BushingBushing
-
114503191555 Swivel BushingSwivel Bushing
-
118503191565 LH Cam AdjusterLH Cam Adjuster
-
119503191566 RH Cam AdjusterRH Cam Adjuster
-
120503191640 CushionCushion
-
123503191820 Wheel Cup M6Wheel Cup M6
-
124503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
125503191910 WasherWasher
-
126503191926 WasherWasher
-
127503191966 Lower AxleLower Axle
-
130503191982 Ball BearingBall Bearing
-
132503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
136503192491 WasherWasher
-
137503192494 WasherWasher
-
138503192496 WasherWasher
-
139503192530 Slide ProtectorSlide Protector
-
141503192531 RockerRocker
-
153503192555 Axle BarAxle Bar
-
154503193264 Front Arm Ass'yFront Arm Ass'y
-
155503192592 Labyrinth RingLabyrinth Ring
-
156503192606 Rear Shock AxleRear Shock Axle
-
163503192678 SpacerSpacer
-
165503192749 Guide BlockGuide Block
-
167503192750 Rubber StopperRubber Stopper
-
168503192759 Stopper StrapStopper Strap
-
173503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
174503192767 BushingBushing
-
179503192771 Black Wheel CapBlack Wheel Cap
-
184503192778 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
187503192794 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
196503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
202503192583 TensionerTensioner
-
221503192918 LH Cam BlockLH Cam Block
-
221503192919 RH Cam BlockRH Cam Block
-
222503192921 O-RingO-Ring
-
225503193617 Rear Arm Ass'yRear Arm Ass'y
-
226503192981 Lower ShaftLower Shaft
-
227503193010 Link RodLink Rod
-
231503193037 BushingBushing
-
233503193082 Casted SupportCasted Support
-
236503193101 Rubber StopperRubber Stopper
-
237503193142 Pivot AxlePivot Axle
-
241503193158 Black LH Spring, SquareBlack LH Spring, Square
-
241503193159 Black RH Spring, SquareBlack RH Spring, Square
-
246503193250 SpacerSpacer
-
248503193265 Front ArmFront Arm
-
252503193289 Yellow Runner 120''Yellow Runner 120''
-
256503193372 Screw M8 X 90Screw M8 X 90
-
263503193533 Link Ass'yLink Ass'y
-
268503193477 Deep Black Wheel Ass'y, 141 mmDeep Black Wheel Ass'y, 141 mm
-
284505072663 Leg CushionLeg Cushion
-
291516004755 Runner DecalRunner Decal
-
293516004900 LH Block Sticker DecalLH Block Sticker Decal
-
293516004901 RH Block Sticker DecalRH Block Sticker Decal
-
300572084800 Reinforcement StopperReinforcement Stopper
-
309503193283 Central ShockCentral Shock
