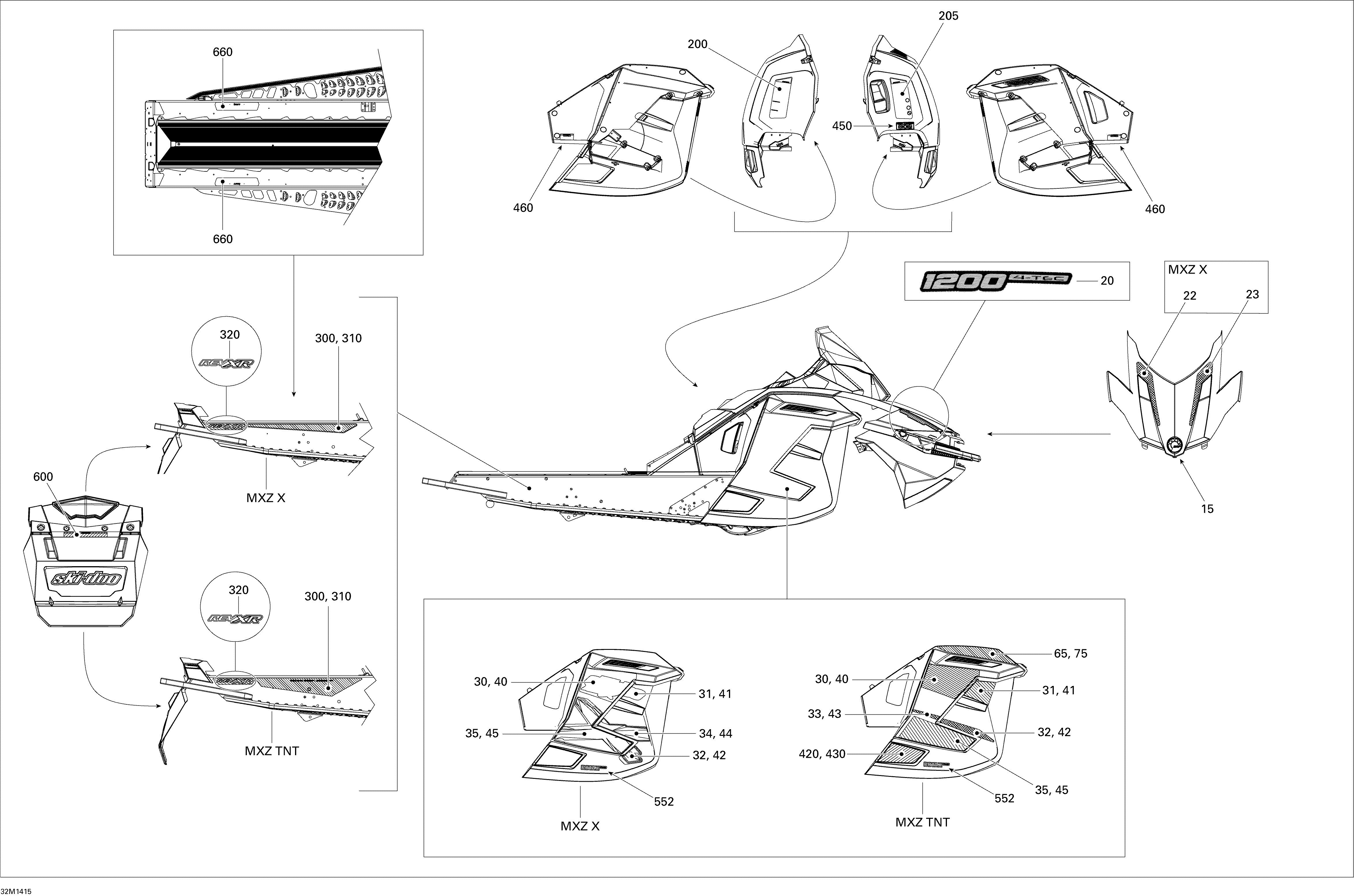

09- Decals TNT_32M1415 для BRP Ski-Doo MXZ TNT 12004TEC XR - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516006088 Hood Decal, 1200 4-TECHood Decal, 1200 4-TEC
-
30516005414 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
31516005416 RH Front Upper Side DecalRH Front Upper Side Decal
-
32516005541 RH Front Side DecalRH Front Side Decal
-
33516005568 RH DecalRH Decal
-
35516005418 RH Side DecalRH Side Decal
-
40516005413 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
41516005415 LH Front Upper Side DecalLH Front Upper Side Decal
-
42516005540 LH Front Side DecalLH Front Side Decal
-
43516005567 LH DecalLH Decal
-
45516005417 LH Side DecalLH Side Decal
-
65516005537 RH Transition DecalRH Transition Decal
-
75516005536 LH Transition DecalLH Transition Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516006261 RH Frame DecalRH Frame Decal
-
310516006260 LH Frame DecalLH Frame Decal
-
320516006272 Decal, REV XRDecal, REV XR
-
420516005539 RH Lower DecalRH Lower Decal
-
430516005538 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516005984 Decal, Rotax PowerDecal, Rotax Power
-
600516006117 Warning Decal, TrackWarning Decal, Track
-
660516005154 Frame Top DecalFrame Top Decal
